Control Cable Shielded 18AWG 6 Conductor Riser CMR Stranded Copper 1000ft Grey
-
18AWG Stranded Bare Copper · 6 Conductors
-
AL-Foil + PE Tape + 7/0.18TC Drain Wire Shield
-
FR-PVC Jacket · CMR Rated
-
C(ETL)US Listed · UL 444 · 300V · CL2R
-
OD 6.15mm · Grey Jacket · 1000ft Reel
SAVE MORE
on Bulk Orders
The more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 3–9 units | $490.77 / unit | 3% |
| 10–19 units | $480.65 / unit | 5% |
| 20+ units | $470.53 / unit | 7% |
Price-match guarantee
FREE shipping
Lifetime warranty

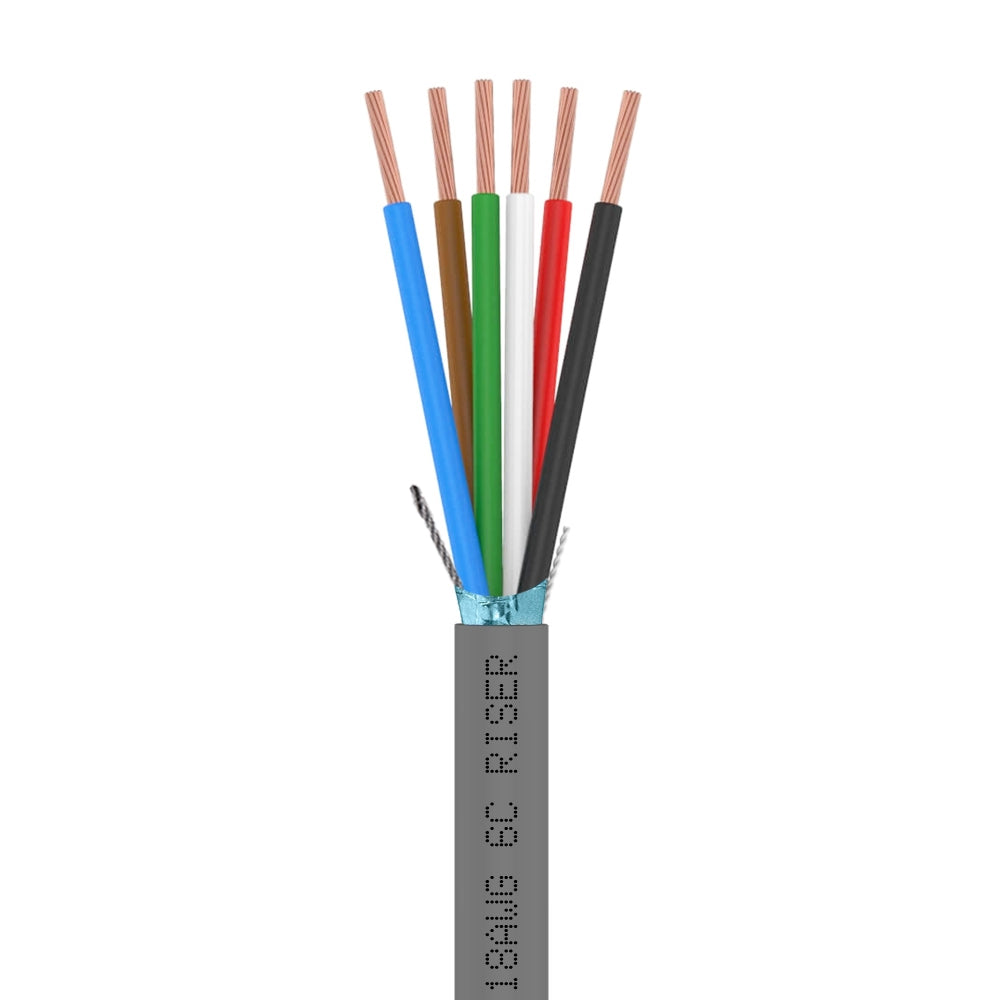

Control Cable Shielded 18AWG 6 Conductor Riser CMR Stranded Copper 1000ft Grey
-
𝟏𝟖𝐀𝐖𝐆 𝐒𝐇𝐈𝐄𝐋𝐃𝐄𝐃 𝐂𝐌𝐑 Six shielded 18AWG conductors for complex control systems requiring multi-signal and EMI protection.
-
𝐀𝐋-𝐅𝐎𝐈𝐋 + 𝐃𝐑𝐀𝐈𝐍 𝐖𝐈𝐑𝐄 Full-coverage foil shield with drain wire for single-point grounding in noisy commercial environments.
-
𝐂𝐌𝐑 + 𝐅𝐓𝟒 𝐑𝐀𝐓𝐄𝐃 Meets CMR and FT4 for in-wall and riser runs in multi-function security and automation projects.
-
𝟔 𝐂𝐎𝐋𝐎𝐑-𝐂𝐎𝐃𝐄𝐃 𝐂𝐎𝐍𝐃𝐔𝐂𝐓𝐎𝐑𝐒 Six colored conductors simplify wiring at multi-zone control panels and riser junction boxes.
-

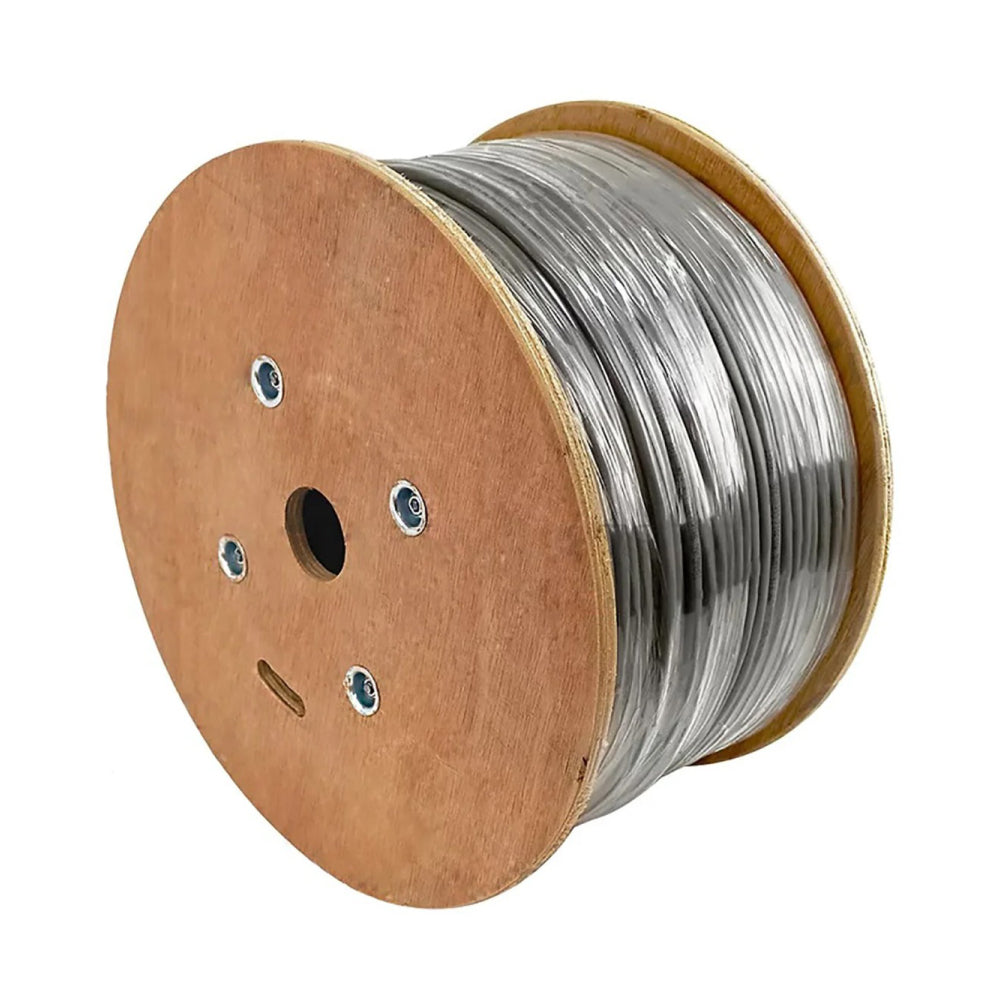

𝟏𝟎𝟎𝟎𝐅𝐓 𝐆𝐑𝐄𝐘 𝐂𝐎𝐈𝐋 1000ft shielded CMR grey coil for complete commercial 6-conductor control cable projects.
Description
Description
Run six-conductor shielded CMR control wiring through walls and risers with this 18AWG 6-conductor shielded stranded bare copper control cable, rated CMR and C(ETL)US Listed — delivering EMI-protected performance at a lower cost than plenum.
The shield system — aluminum foil, PE tape, and tinned copper drain wire — blocks EMI from all six conductors simultaneously, keeping signals clean near HVAC equipment, power wiring, and lighting ballasts. Six color-coded conductors (Black, Red, White, Green, Brown, Blue) handle power, signal, return, tamper, status, and auxiliary functions over one shielded riser run — replacing three separate 2-conductor cables. For plenum spaces, choose CMP instead.
Standards: C(ETL)US Listed · CMR · CL2/CL2R · UL 444
Technical Specifications:
• Conductor: Stranded Bare Copper · AWG: 18 · Conductors: 6 (Black/Red/White/Green/Brown/Blue)

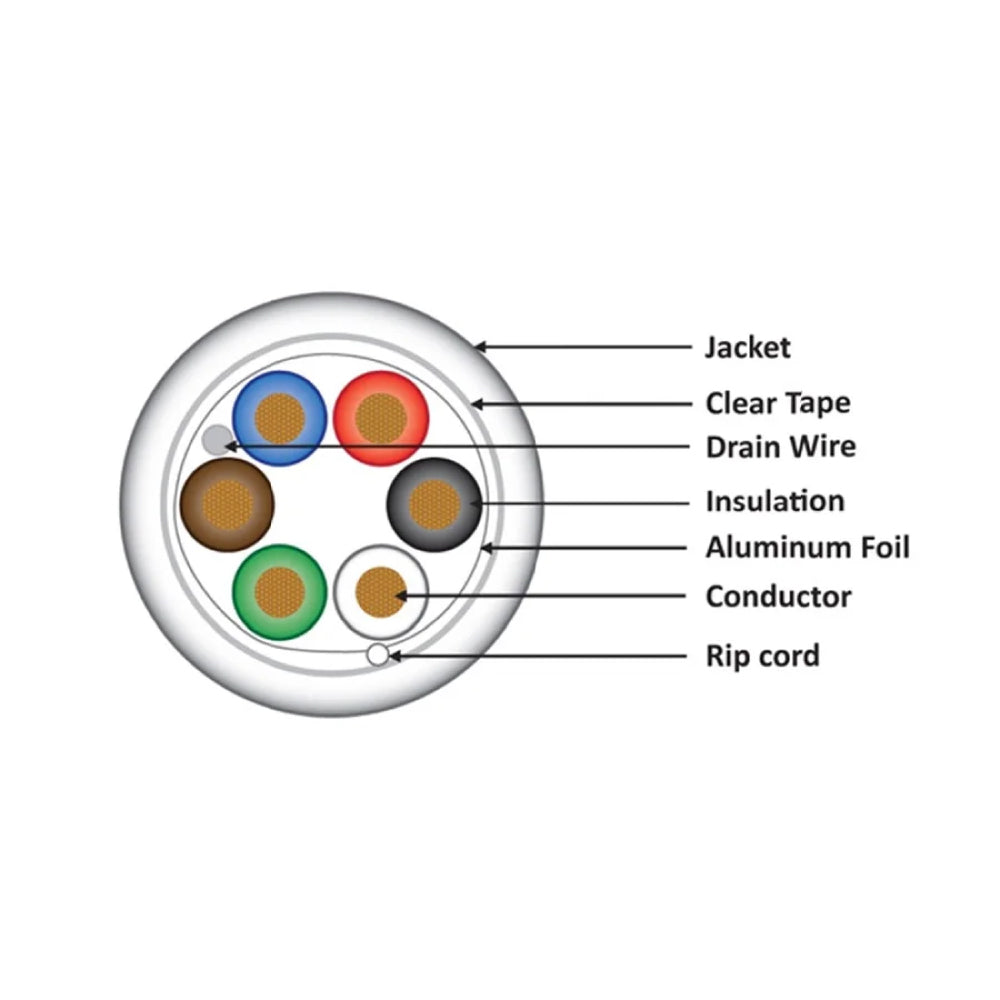

• Shield: AL-Foil + PE Tape + 7x0.18mm Tinned Copper Drain Wire
• Jacket: FR-PVC, CMR Rated · Ripcord: Yes
• OD: 6.15 mm · Voltage: 300V · Temp: -20°C to +60°C
• Packaging: 1000ft Reel
Typical Applications:
• Complex security panels and multi-zone alarm systems
• Multi-channel audio zone wiring
• Access control with door monitoring
• HVAC building automation controllers requiring EMI shielding
• In-wall and riser runs outside air-handling spaces
