Plenum Control Cable Shielded 22AWG 4 Conductor CMP Stranded Copper 1000ft White
-
22AWG Stranded Bare Copper · 4 Conductors
-
AL-Foil + 24AWG Tinned Copper Drain Wire
-
Low Smoke FR-PVC Jacket · CMP/CL2P
-
C(ETL)US Listed · UL 444 · 20.9 lbs
-
OD 3.55mm · White Jacket · 1000ft Reelex II
SAVE MORE
on Bulk Orders
The more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 3–9 units | $227.90 / unit | 3% |
| 10–19 units | $223.20 / unit | 5% |
| 20+ units | $218.50 / unit | 7% |
Price-match guarantee
FREE shipping
Lifetime warranty
Plenum Control Cable Shielded 22AWG 4 Conductor CMP Stranded Copper 1000ft White
-
𝐀𝐋𝐀𝐑𝐌 𝐂𝐎𝐍𝐓𝐑𝐎𝐋 𝐒𝐓𝐀𝐓𝐈𝐎𝐍 𝐒𝐓𝐀𝐍𝐃𝐀𝐑𝐃 The industry-standard configuration for fire security and burglar alarm control stations — 4 shielded conductors in a compact plenum jacket.
-
𝐑𝐄𝐌𝐆𝐔𝐀𝐑𝐃 𝐏𝐋𝐄𝐍𝐔𝐌 𝐏𝐎𝐋𝐘𝐌𝐄𝐑 Required low-smoke CMP jacket for 22AWG 4-conductor above-ceiling control wiring in commercial buildings.
-
𝐀𝐋-𝐅𝐎𝐈𝐋 𝐏𝐋𝐔𝐒 𝐃𝐑𝐀𝐈𝐍 𝐖𝐈𝐑𝐄 Full foil shield with drain wire protects all four 22AWG signals from EMI in noisy plenum environments.
-
𝐂𝐎𝐌𝐏𝐀𝐂𝐓 𝟑.𝟓𝟓𝐌𝐌 𝐅𝐎𝐎𝐓𝐏𝐑𝐈𝐍𝐓 At 3.55mm OD and 20.9 lbs, this cable fits tight conduit runs where every millimeter of fill capacity counts.
-
𝟏𝟎𝟎𝟎𝐅𝐓 𝐖𝐇𝐈𝐓𝐄 𝐂𝐎𝐈𝐋 1000ft shielded CMP coil for complete above-ceiling alarm control and security system installations.
Description
Description
Wire fire security and burglar alarm control stations with this 22AWG 4-conductor shielded stranded bare copper control cable. Rated CMP and C(ETL)US Listed, it's built for the same demanding above-ceiling plenum installations as the 6-conductor version, in a more compact 4-conductor footprint at just 3.55mm OD and 20.9 lbs per 1000ft.
Four color-coded conductors (Black/Red/White/Green) handle power, signal, and auxiliary functions for alarm control panels, sound station wiring, and security devices. The AL-foil shield with tinned copper drain wire blocks EMI from HVAC systems, power wiring, and lighting ballasts. For higher current needs, choose the 18AWG 4C CMP version instead.
Standards: C(ETL)US Listed · CMP/CL2P · UL 444
Technical Specifications:

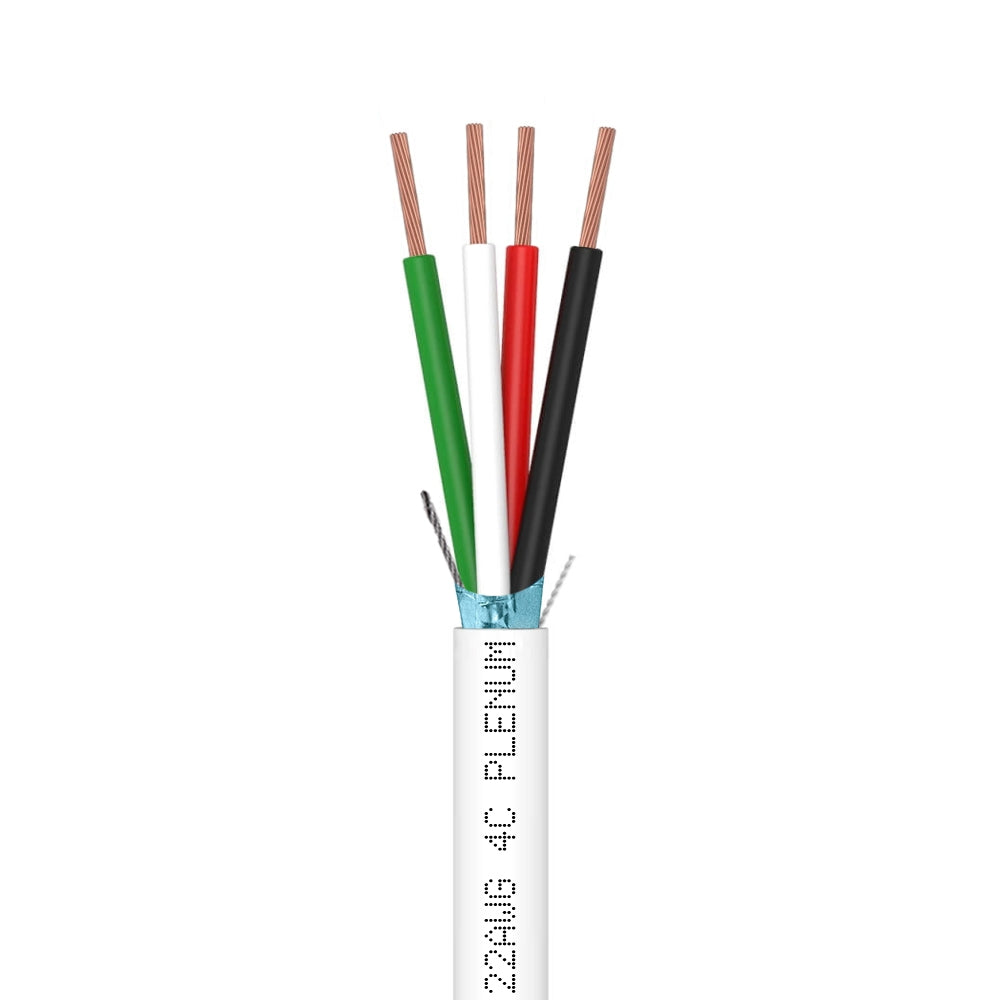

• Conductor: Stranded Bare Copper · AWG: 22 · Conductors: 4 (Black/Red/White/Green)

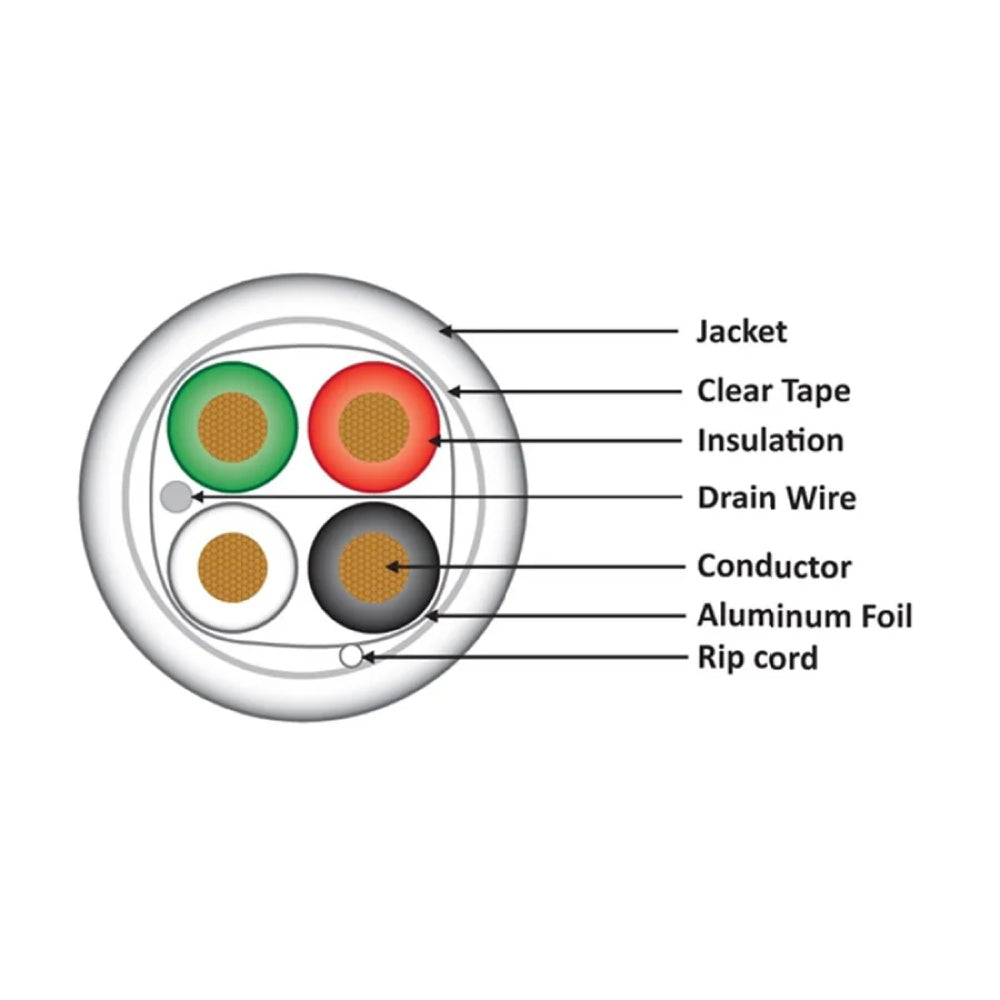

• Shield: AL-Foil (≥25% Overlap) + 24AWG Tinned Copper Drain Wire
• Jacket: Remguard Low-Smoke FR-PVC, CMP/CL2P · Color: White
• OD: 3.55 mm · Weight: 20.9 lbs/1000ft

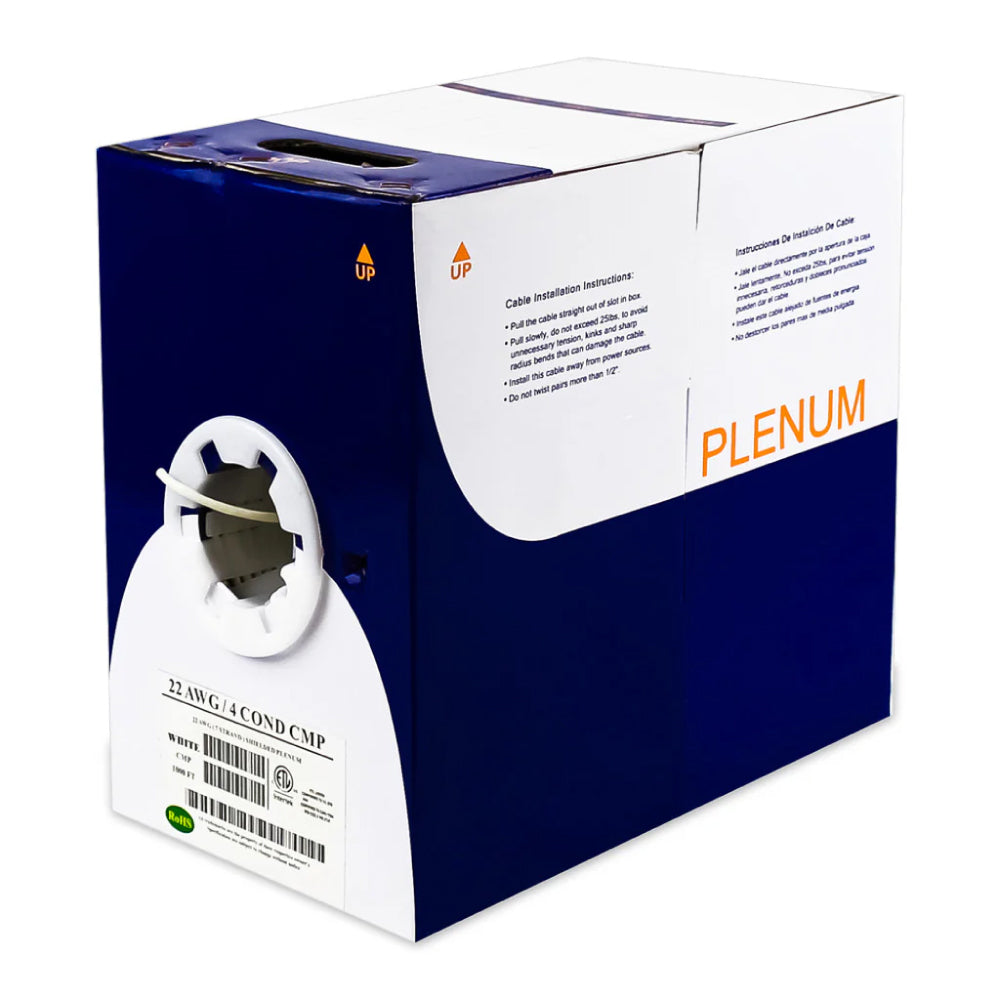

• Packaging: 1000ft Reelex II
Typical Applications:
• Fire security and burglar alarm control stations
• Sound and background music distribution
• Access control and intercom systems
• Any CMP-rated power-limited control circuit
• Above-ceiling plenum runs requiring EMI shielding
