Plenum Control Cable Shielded 22AWG 6 Conductor CMP Stranded Copper 1000ft White
-
22AWG Stranded Bare Copper · 6 Conductors
-
AL-Foil + 24AWG Tinned Copper Drain Wire
-
Low Smoke FR-PVC Jacket · CMP/CL2P
-
C(ETL)US Listed · UL 444 · 23.3 lbs
-
OD 4.20mm · White Jacket · 1000ft Reelex II
SAVE MORE
on Bulk Orders
The more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 3–9 units | $315.20 / unit | 3% |
| 10–19 units | $308.70 / unit | 5% |
| 20+ units | $302.20 / unit | 7% |
Price-match guarantee
FREE shipping
Lifetime warranty
Plenum Control Cable Shielded 22AWG 6 Conductor CMP Stranded Copper 1000ft White
-
𝐒𝐌𝐀𝐋𝐋𝐄𝐒𝐓 𝐒𝐇𝐈𝐄𝐋𝐃𝐄𝐃 𝟔𝐂 𝐂𝐌𝐏 At 4.20mm OD and 23.3 lbs, the smallest shielded 6-conductor CMP control cable in the lineup — more room in tight plenum conduit fills.
-
𝐑𝐄𝐌𝐆𝐔𝐀𝐑𝐃 𝐏𝐋𝐄𝐍𝐔𝐌 𝐏𝐎𝐋𝐘𝐌𝐄𝐑 Required low-smoke CMP jacket for 22AWG 6-conductor above-ceiling control wiring in commercial buildings.
-
𝐀𝐋-𝐅𝐎𝐈𝐋 𝐏𝐋𝐔𝐒 𝐃𝐑𝐀𝐈𝐍 𝐖𝐈𝐑𝐄 Full foil shield with drain wire protects six 22AWG signals from EMI in noisy plenum environments.
-
𝟔 𝐂𝐎𝐋𝐎𝐑-𝐂𝐎𝐃𝐄𝐃 𝐂𝐎𝐍𝐃𝐔𝐂𝐓𝐎𝐑𝐒 Six colored conductors for multi-channel DSP, relay logic, and automation terminations above ceilings.
-
𝟏𝟎𝟎𝟎𝐅𝐓 𝐖𝐇𝐈𝐓𝐄 𝐂𝐎𝐈𝐋 1000ft shielded CMP coil for complete above-ceiling multi-zone 22AWG 6C control installations.
Description
Description
Maximize conduit fill capacity in plenum spaces with this 22AWG shielded stranded bare copper control cable — the smallest shielded 6-conductor CMP cable in the lineup at just 4.20mm OD and 23.3 lbs per 1000ft. Rated CMP and C(ETL)US Listed, it delivers a significantly smaller footprint than the 18AWG version (5.85mm OD).

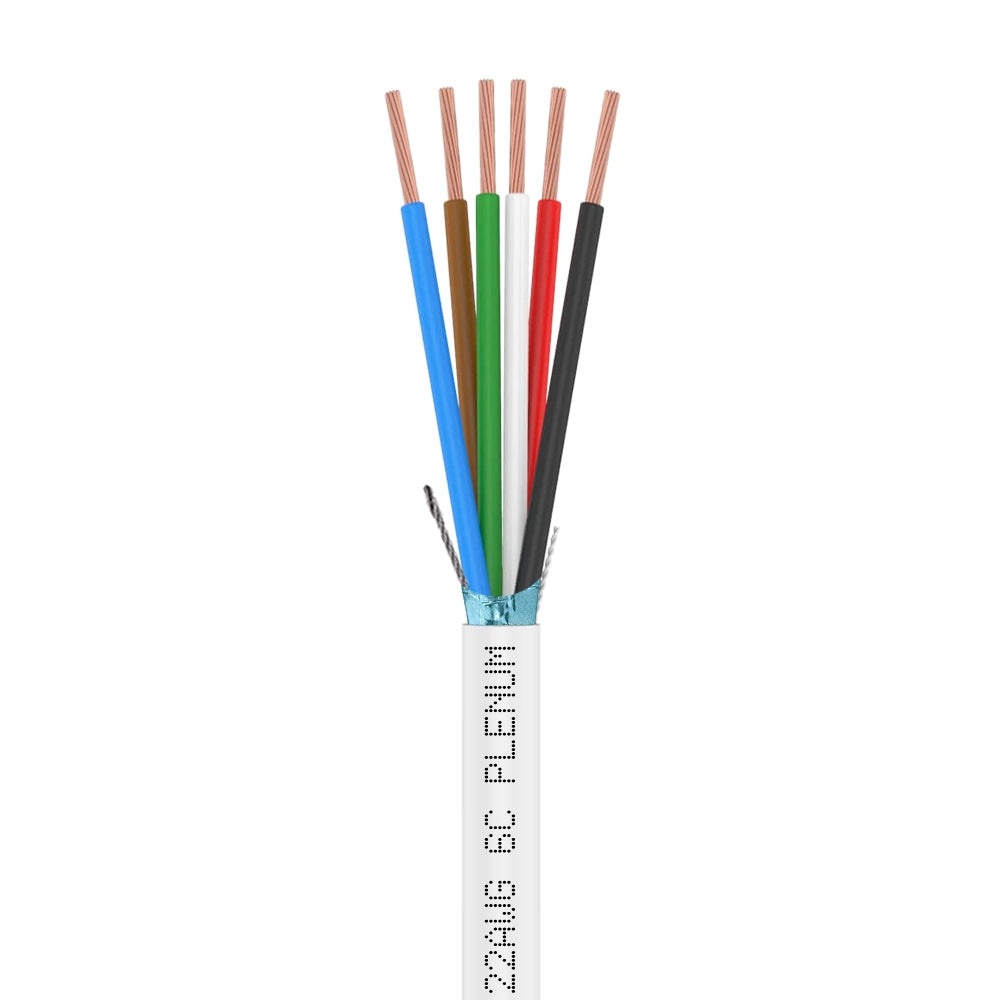

Six color-coded conductors (Black/Red/White/Green/Blue/Brown) handle power, signal, return, tamper, status, and auxiliary functions over a single plenum cable run. The AL-foil shield with tinned copper drain wire blocks EMI from HVAC systems, power wiring, and lighting ballasts. For higher current, choose the 18AWG 6C CMP version instead.
Standards: C(ETL)US Listed · CMP/CL2P · UL 444
Technical Specifications:
• Conductor: Stranded Bare Copper · AWG: 22 · Conductors: 6 (Black/Red/White/Green/Blue/Brown)

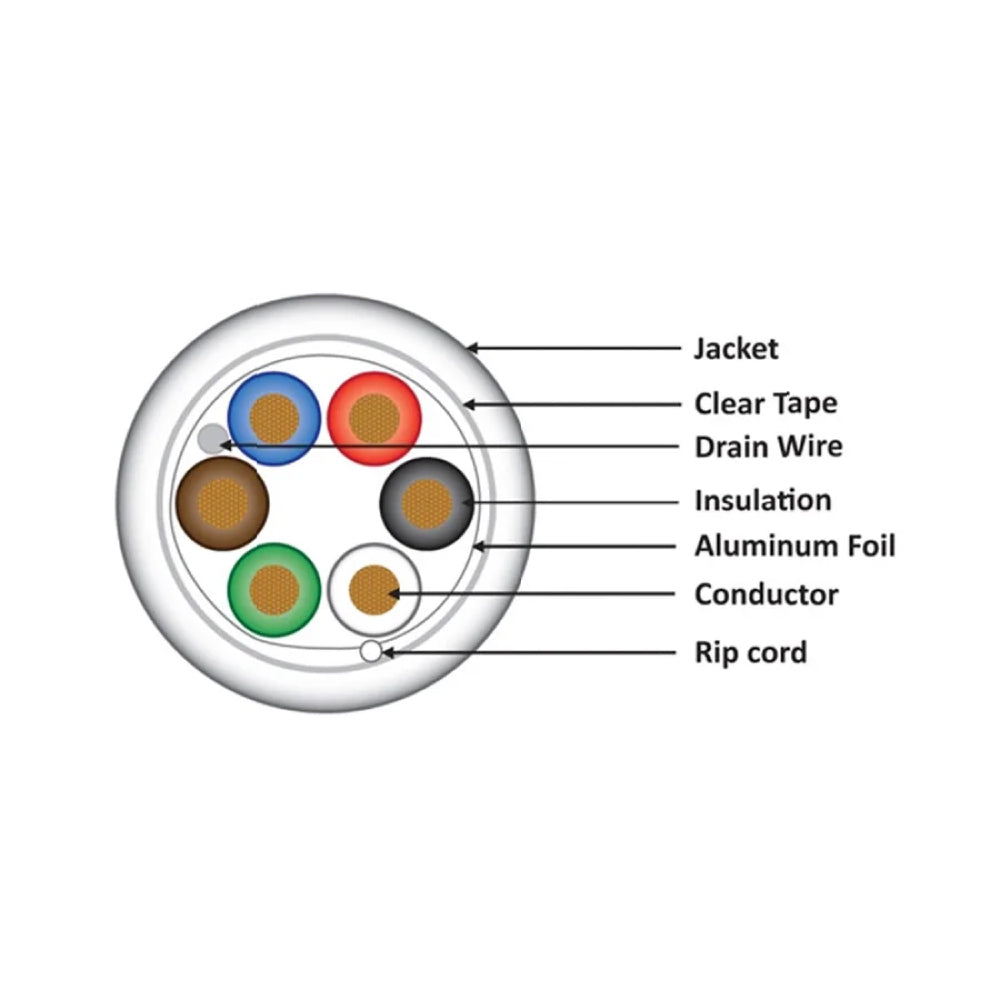

• Shield: AL-Foil (≥25% Overlap) + 24AWG Tinned Copper Drain Wire
• Jacket: Remguard Low-Smoke FR-PVC, CMP/CL2P · Color: White
• OD: 4.20 mm · Weight: 23.3 lbs/1000ft

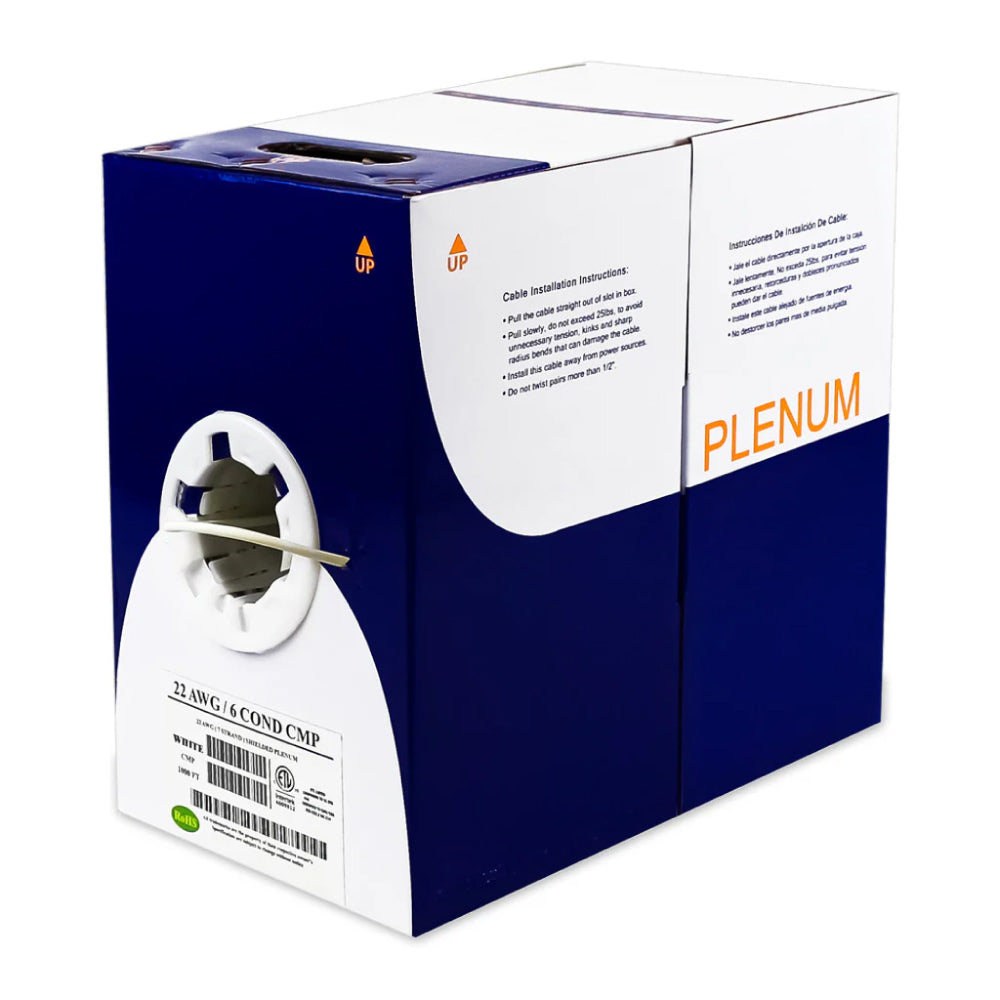

• Packaging: 1000ft Reelex II
Typical Applications:
• Multi-channel DSP, relay logic, and automation terminations
• Security systems, audio, and background music distribution
• Multi-zone alarm and status/tamper monitoring
• Any CMP-rated power-limited control circuit
• Above-ceiling plenum runs requiring EMI shielding
