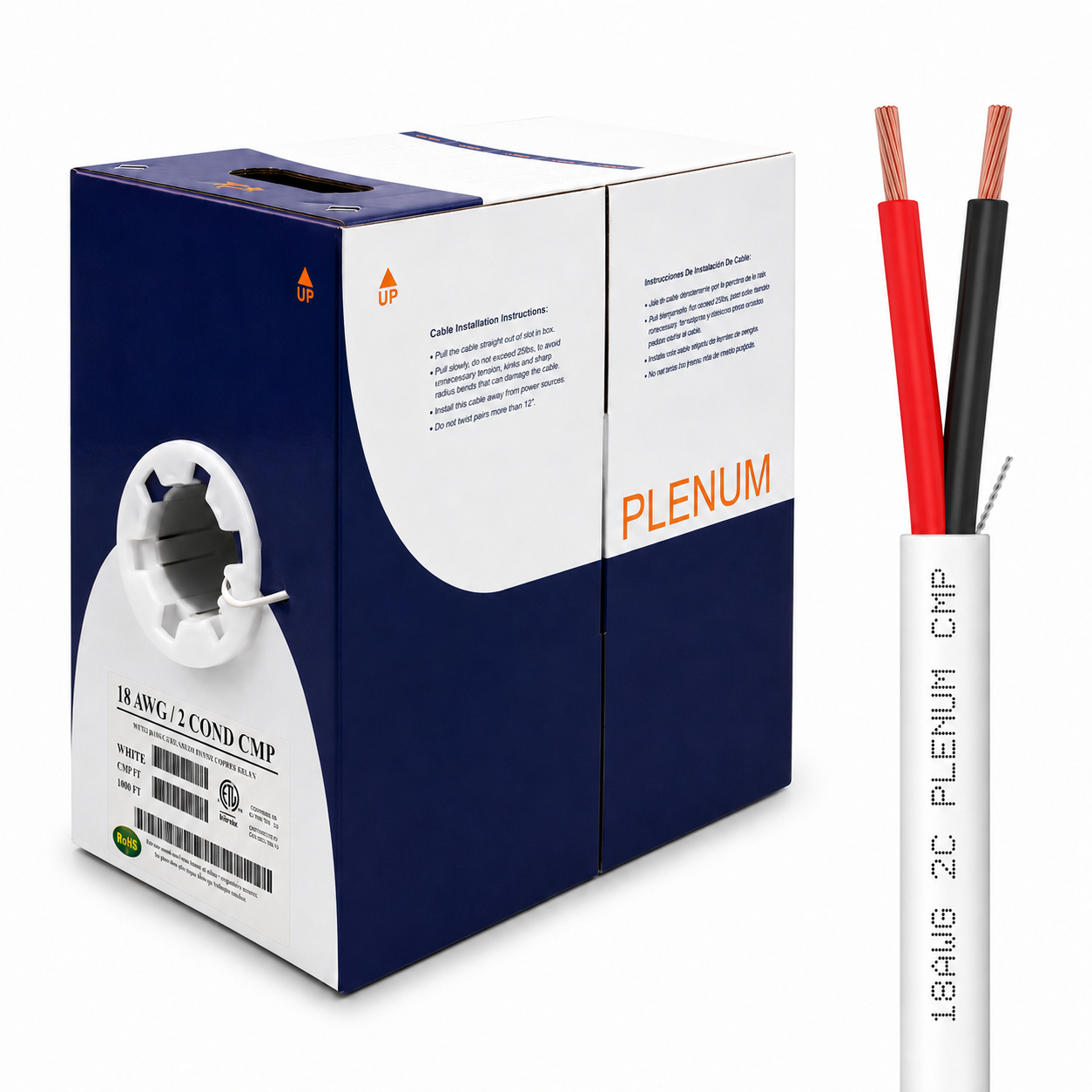

Plenum Control Cable Unshielded 18AWG 2 Conductor CMP Stranded Copper 1000ft White
-
Stranded Bare Copper · 18AWG · 2 Conductors
-
Unshielded · 7-Strand Conductors · Ripcord
-
Low Smoke FR-PVC Jacket · CMP/CL2P
-
C(ETL)US Listed · CL2P · 300V
-
OD 3.96mm · 1000ft Reelex II · White
SAVE MORE
on Bulk Orders
The more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 3–9 units | $223.05 / unit | 3% |
| 10–19 units | $218.45 / unit | 5% |
| 20+ units | $213.85 / unit | 7% |
Price-match guarantee
FREE shipping
Lifetime warranty
Plenum Control Cable Unshielded 18AWG 2 Conductor CMP Stranded Copper 1000ft White
-
𝐏𝐀𝐒𝐒𝐄𝐒 𝐈𝐍𝐒𝐏𝐄𝐂𝐓𝐈𝐎𝐍 𝐄𝐕𝐄𝐑𝐘𝐖𝐇𝐄𝐑𝐄 CMP/CL2P is the highest fire rating in the building — it covers riser and in-wall too, so one cable satisfies every space, not just the plenum.
-
𝐊𝐍𝐎𝐖 𝐖𝐇𝐄𝐍 𝐓𝐎 𝐆𝐎 𝐒𝐇𝐈𝐄𝐋𝐃𝐄𝐃 Near electrical panels or motors, step up to shielded instead — this listing tells you honestly when unshielded isn't enough.
-
𝐓𝐇𝐄 𝐒𝐓𝐀𝐍𝐃𝐀𝐑𝐃 𝐆𝐀𝐔𝐆𝐄 𝐅𝐎𝐑 𝐂𝐎𝐍𝐓𝐑𝐎𝐋 18AWG is the go-to size for thermostat, HVAC, alarm, and access control wiring — capacity for typical runs without paying extra.
-
𝐑𝐈𝐏𝐂𝐎𝐑𝐃 𝐒𝐏𝐄𝐄𝐃𝐒 𝐔𝐏 𝐓𝐄𝐑𝐌𝐈𝐍𝐀𝐓𝐈𝐎𝐍 Built-in ripcord strips the jacket cleanly at every termination point — less time with a blade, more time finishing the job.
-
𝐑𝐄𝐀𝐃𝐘 𝐅𝐎𝐑 𝐓𝐇𝐄 𝐖𝐇𝐎𝐋𝐄 𝐉𝐎𝐁 1000ft Reelex II pull box means fewer splices and reel changes across a full above-ceiling control or HVAC distribution run.
Description
Description
Keep your control wiring code-compliant and fire-safe with this 18AWG unshielded stranded bare copper control cable. Rated CMP and CL2P, approved for air-handling spaces above suspended ceilings, below raised floors, and in risers and walls — the highest indoor fire safety rating, covering every indoor environment with one spec.
18AWG is the standard gauge for low-voltage control circuits, thermostat wiring, HVAC controls, alarm and security systems, access control, and door systems. With no shield to add cost or complexity, it's the straightforward choice for clean environments without significant EMI from power lines, motors, or lighting ballasts — for EMI-heavy spaces, choose the shielded version instead.
Standards: C(ETL)US Listed · CL2P/CMP
Technical Specifications:

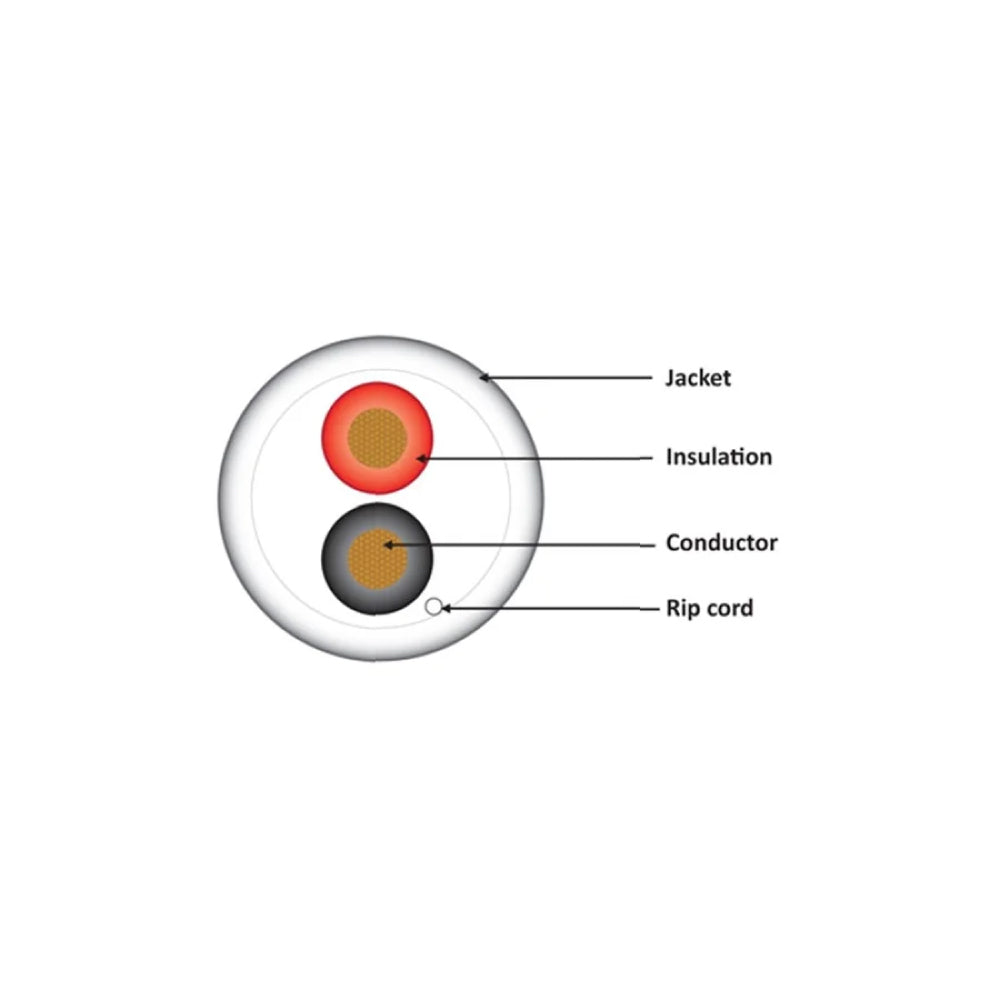

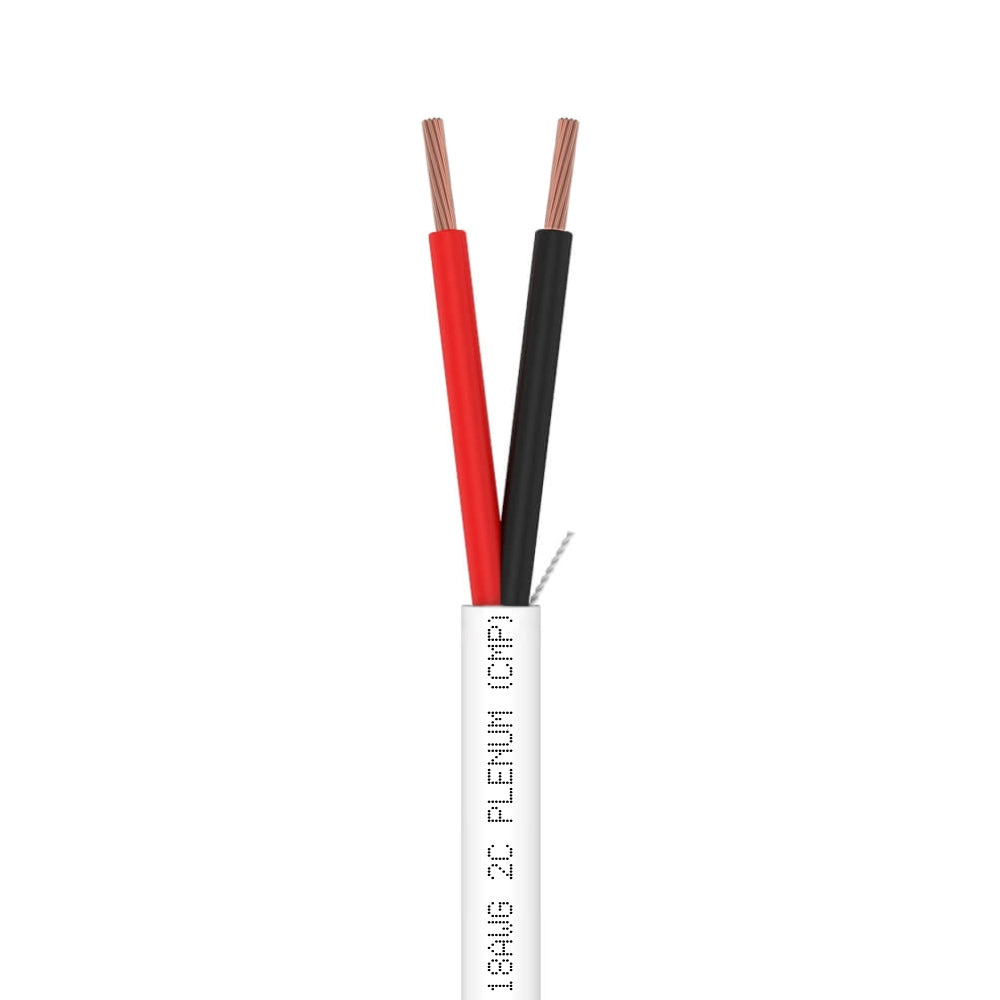

• Conductor: Stranded Bare Copper · AWG: 18 · Conductors: 2 (Black/Red)
• Shielding: None (Unshielded) · Ripcord: Yes
• Jacket: Low-Smoke FR-PVC, CMP/CL2P · Color: White
• OD: 3.96 mm · Voltage: 300V · Temp: -20°C to +60°C

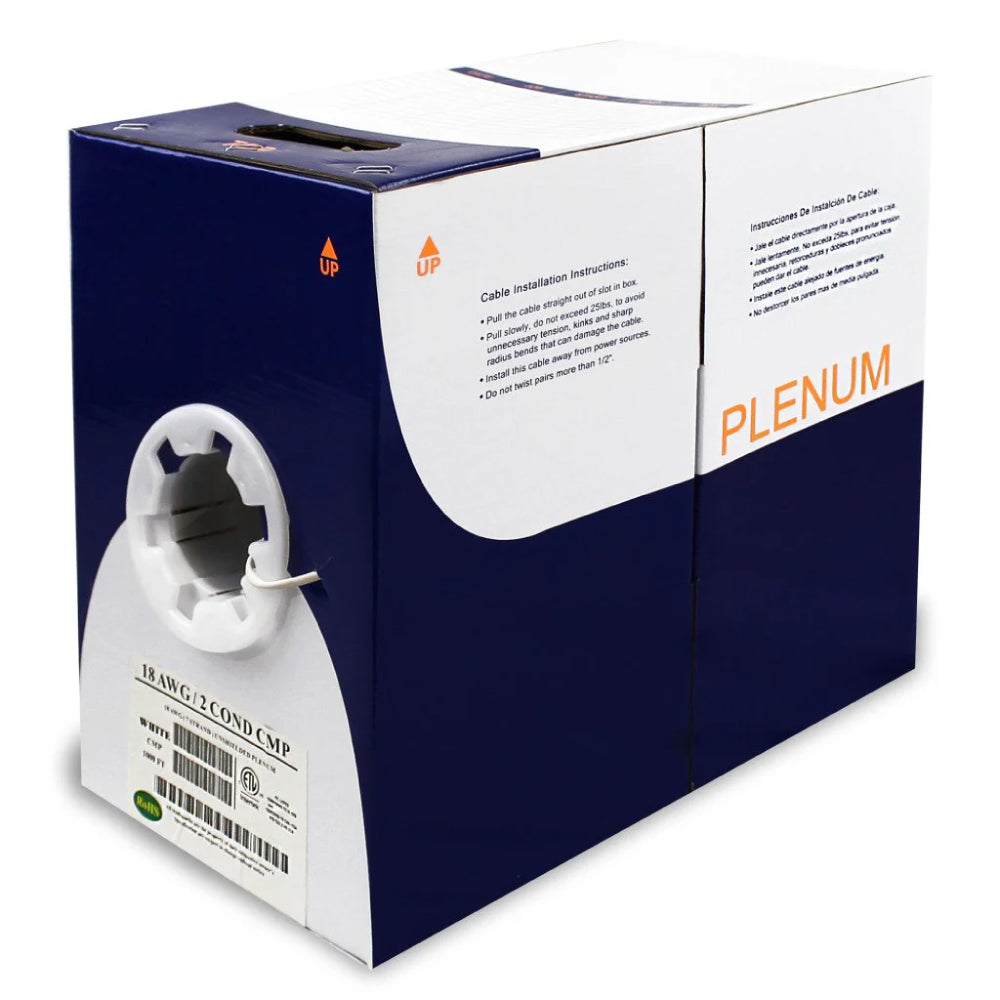

• Packaging: 1000ft Reelex II
Typical Applications:
• Thermostat wiring, HVAC controls, and building automation
• Alarm, security, and access control systems
• Door access systems and intercoms
• Any CMP-rated power-limited control circuit
• Above-ceiling, riser, and in-wall runs in one cable
