Plenum Control Cable Unshielded 18AWG 4 Conductor CMP Stranded Copper 1000ft White
-
18AWG Stranded Bare Copper · 4 Conductors
-
Unshielded · 4-Color Coded Conductors
-
Low Smoke FR-PVC Jacket · CMP/CL2P
-
C(ETL)US Listed · UL 444 · 300V
-
OD 3.96mm · White Jacket · 1000ft Reelex II
SAVE MORE
on Bulk Orders
The more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 3–9 units | $387.95 / unit | 3% |
| 10–19 units | $379.95 / unit | 5% |
| 20+ units | $371.95 / unit | 7% |
Price-match guarantee
FREE shipping
Lifetime warranty
Plenum Control Cable Unshielded 18AWG 4 Conductor CMP Stranded Copper 1000ft White
-
𝐒𝐄𝐂𝐔𝐑𝐈𝐓𝐘 𝐀𝐋𝐀𝐑𝐌 𝐂𝐀𝐁𝐋𝐄 𝐒𝐓𝐀𝐍𝐃𝐀𝐑𝐃 The industry-standard configuration for security systems, intercoms, and power-limited controls — 4 conductors in a plenum-rated jacket.
-
𝐂𝐌𝐏 𝐑𝐀𝐓𝐄𝐃 𝐅𝐎𝐑 𝐀𝐍𝐘 𝐒𝐏𝐀𝐂𝐄 CMP is the highest fire rating in the building — satisfies riser and in-wall runs too, so one cable works everywhere.
-
𝟒 𝐂𝐎𝐋𝐎𝐑-𝐂𝐎𝐃𝐄𝐃 𝐂𝐎𝐍𝐃𝐔𝐂𝐓𝐎𝐑𝐒 Four individually colored conductors simplify wiring at control panels and field devices above the ceiling.
-
𝐒𝐈𝐌𝐏𝐋𝐄 𝐂𝐎𝐒𝐓-𝐄𝐅𝐅𝐄𝐂𝐓𝐈𝐕𝐄 𝐃𝐄𝐒𝐈𝐆𝐍 No shield to add cost or complexity — the straightforward choice for plenum spaces without significant EMI.
-
𝟏𝟎𝟎𝟎𝐅𝐓 𝐖𝐇𝐈𝐓𝐄 𝐂𝐎𝐈𝐋 1000ft unshielded CMP coil for complete above-ceiling security alarm and intercom installations.
Description
Description
Wire security alarm systems, intercoms, and sound distribution in demanding above-ceiling plenum spaces with this 18AWG 4-conductor unshielded stranded bare copper control cable, rated CMP and C(ETL)US Listed. Multiple independent installers rely on this exact configuration for security systems, power-limited controls, and audio applications in commercial buildings.

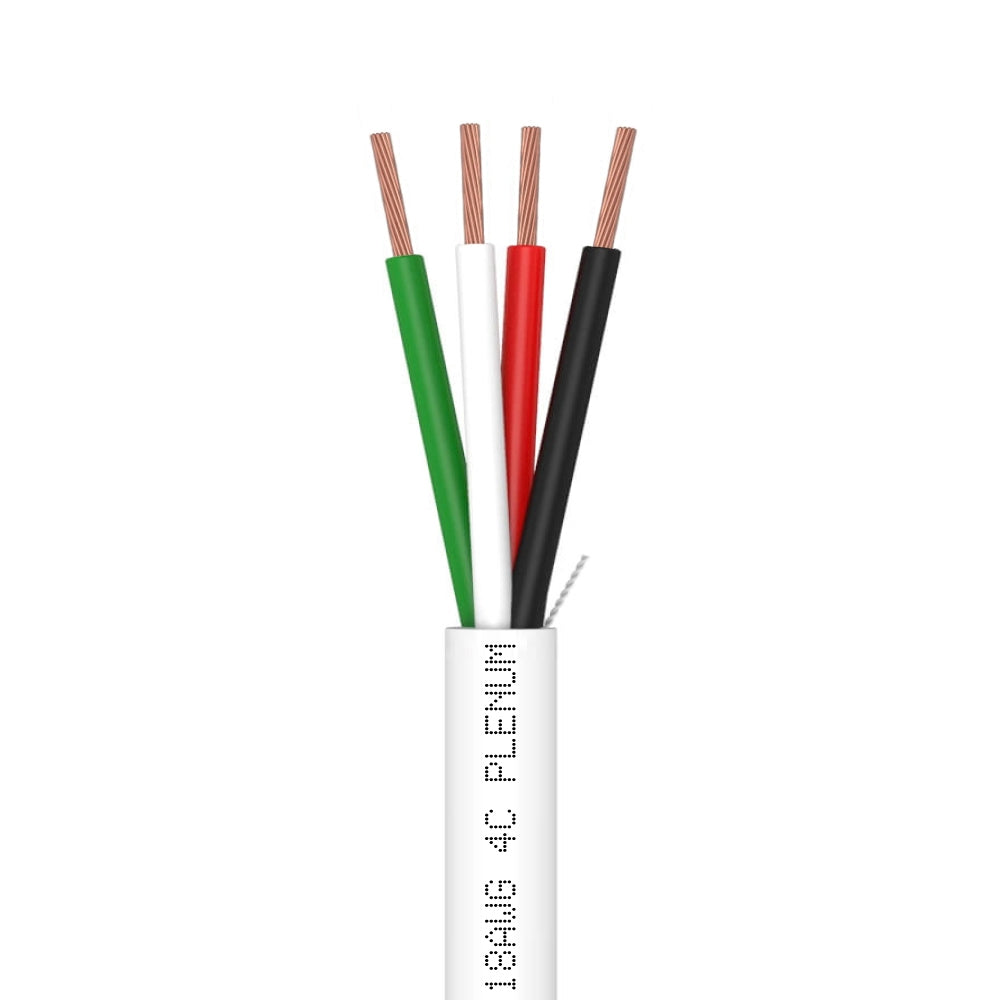

Four color-coded conductors (Black, Red, White, Green) handle power, signal, and auxiliary functions over a single cable run, reducing conduit fill compared to pulling multiple 2-conductor cables. The unshielded design keeps installation simple and cost-effective for spaces without significant EMI. For EMI-heavy environments, choose the shielded CMP version instead.
Standards: C(ETL)US Listed · CMP/CL2P · UL 444
Technical Specifications:

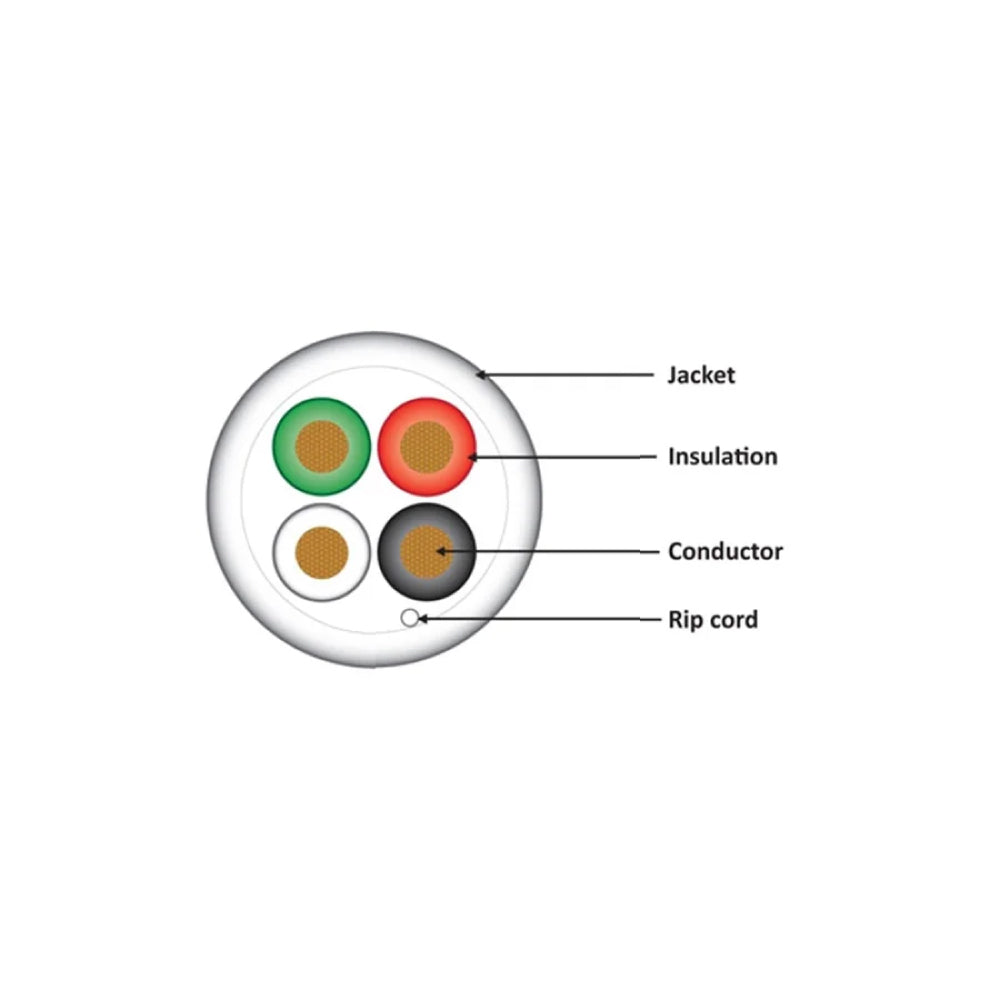

• Conductor: Stranded Bare Copper · AWG: 18 · Conductors: 4 (Black/Red/White/Green)
• Shielding: None (Unshielded) · Ripcord: Yes
• Jacket: Low Smoke FR-PVC, CMP/CL2P · Color: White
• OD: 3.96 mm · Weight: 37 lbs/1000ft

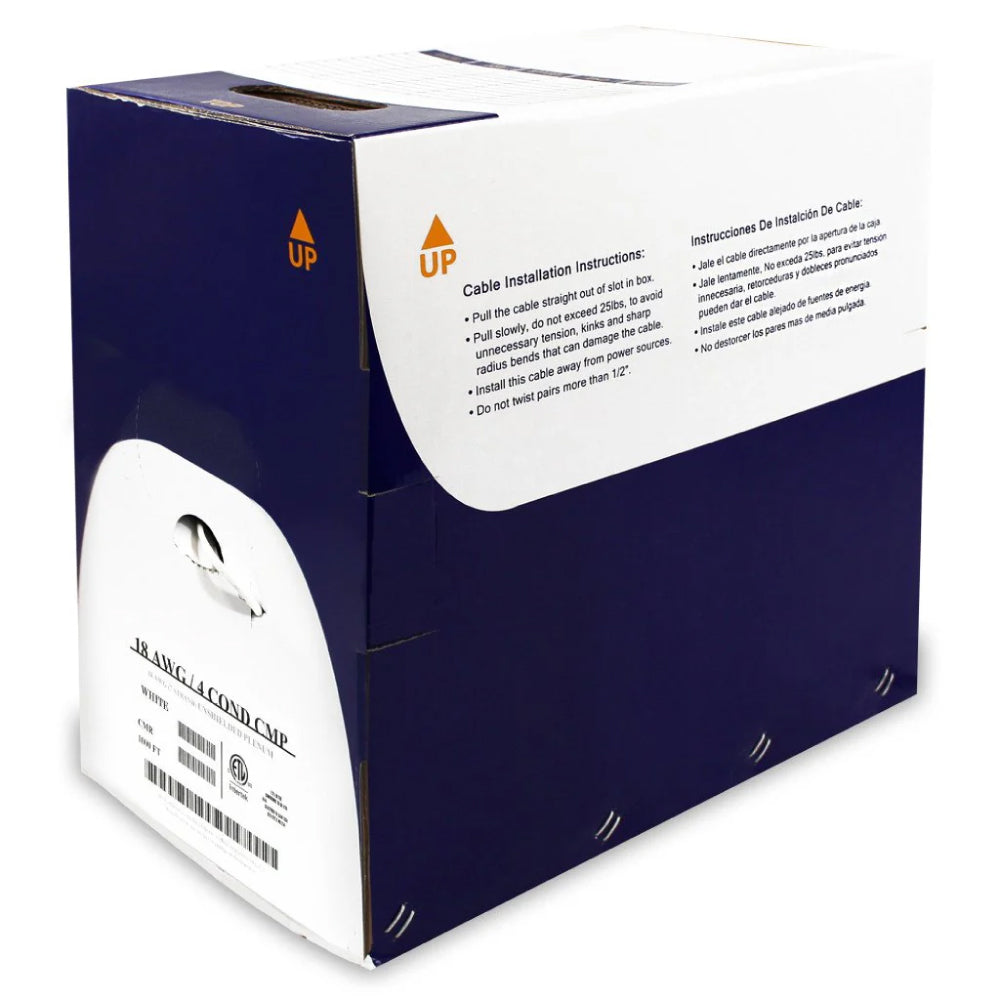

• Packaging: 1000ft Reelex II
Typical Applications:
• Security alarm systems and intercom wiring
• Sound and background music distribution
• Power-limited control circuits
• Any CMP-rated power-limited control circuit
• Above-ceiling plenum runs requiring the highest fire rating
