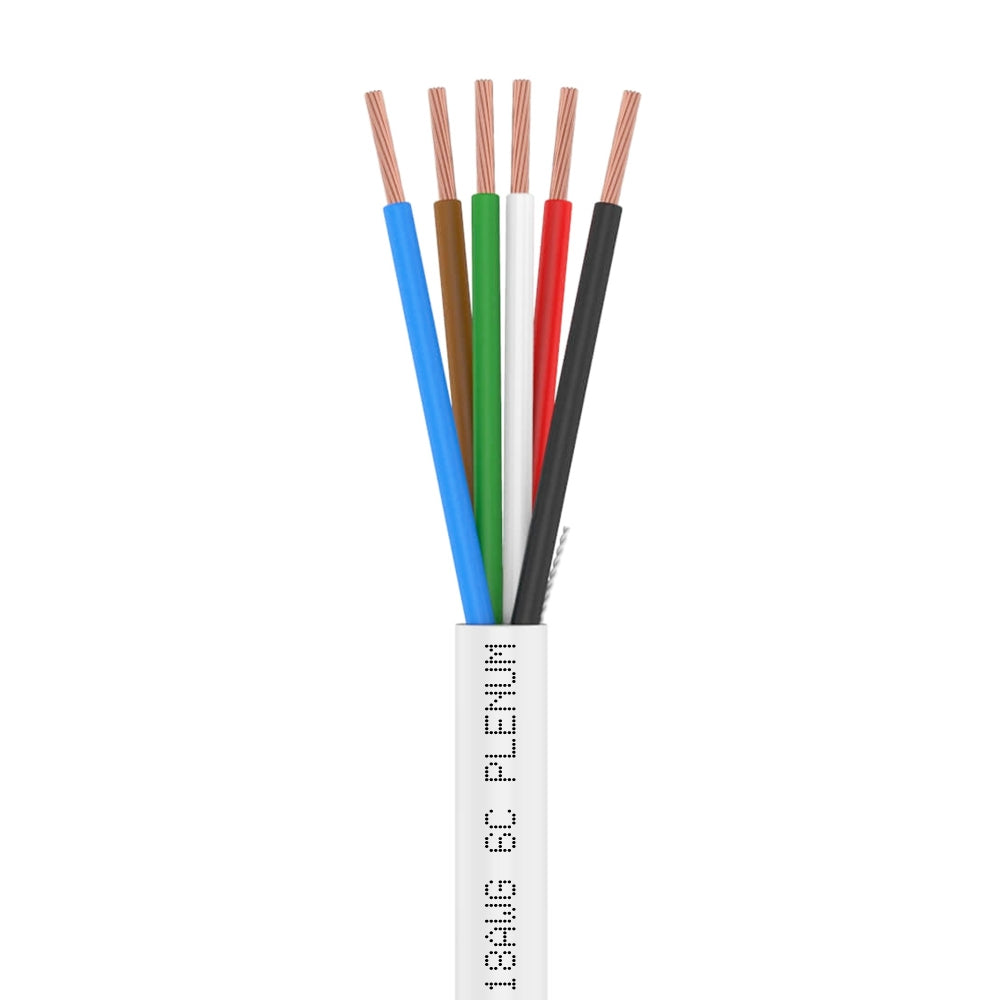

Plenum Control Cable Unshielded 18AWG 6 Conductor CMP Stranded Copper 1000ft White
-
18AWG Stranded Bare Copper · 6 Conductors
-
6-Color Coded: BK, RD, WH, GN, BR, BL
-
Low Smoke FR-PVC Jacket · CMP/CL2P
-
C(ETL)US Listed · UL 444 · CL2P · 300V
-
OD 5.70mm · White Jacket · 1000ft Reel
SAVE MORE
on Bulk Orders
The more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 3–9 units | $543.15 / unit | 3% |
| 10–19 units | $531.95 / unit | 5% |
| 20+ units | $520.75 / unit | 7% |
Price-match guarantee
FREE shipping
Lifetime warranty
Plenum Control Cable Unshielded 18AWG 6 Conductor CMP Stranded Copper 1000ft White
-
𝟏𝟖𝐀𝐖𝐆 𝐔𝐍𝐒𝐇𝐈𝐄𝐋𝐃𝐄𝐃 𝐂𝐌𝐏 Six 18AWG CMP conductors replace three 2-conductor runs — dramatically reduces plenum conduit fill.
-
𝐂𝐌𝐏 𝐑𝐀𝐓𝐄𝐃 𝐅𝐎𝐑 𝐀𝐍𝐘 𝐒𝐏𝐀𝐂𝐄 CMP is the highest fire rating in the building — satisfies riser and in-wall runs too, so one cable works everywhere.
-
𝟔 𝐂𝐎𝐋𝐎𝐑-𝐂𝐎𝐃𝐄𝐃 𝐂𝐎𝐍𝐃𝐔𝐂𝐓𝐎𝐑𝐒 Six individually colored conductors simplify wiring at control panels and zone boards above the ceiling.
-
𝐑𝐄𝐌𝐆𝐔𝐀𝐑𝐃 𝐏𝐋𝐄𝐍𝐔𝐌 𝐏𝐎𝐋𝐘𝐌𝐄𝐑 Required low-smoke CMP jacket for 18AWG 6-conductor above-ceiling control wiring in commercial buildings.
-
𝟏𝟎𝟎𝟎𝐅𝐓 𝐖𝐇𝐈𝐓𝐄 𝐂𝐎𝐈𝐋 1000ft white CMP coil for complete multi-zone 6-conductor control wiring in commercial buildings.
Description
Description
Handle complex above-ceiling control and security wiring with this 18AWG 6-conductor unshielded stranded bare copper control cable, rated CMP and C(ETL)US Listed for demanding air-handling plenum spaces above suspended ceilings. With six color-coded conductors, one cable run replaces three separate 2-conductor cables to the same device or panel.
Six conductors let you dedicate separate conductors to power, signal, return, tamper, status, and auxiliary functions for complex security panels, multi-channel audio zones, access control with door monitoring, and HVAC automation controllers. A built-in ripcord enables fast jacket removal at every termination. For EMI-heavy environments, choose shielded CMP instead.
Standards: C(ETL)US Listed · CMP/CL2P · UL 444
Technical Specifications:

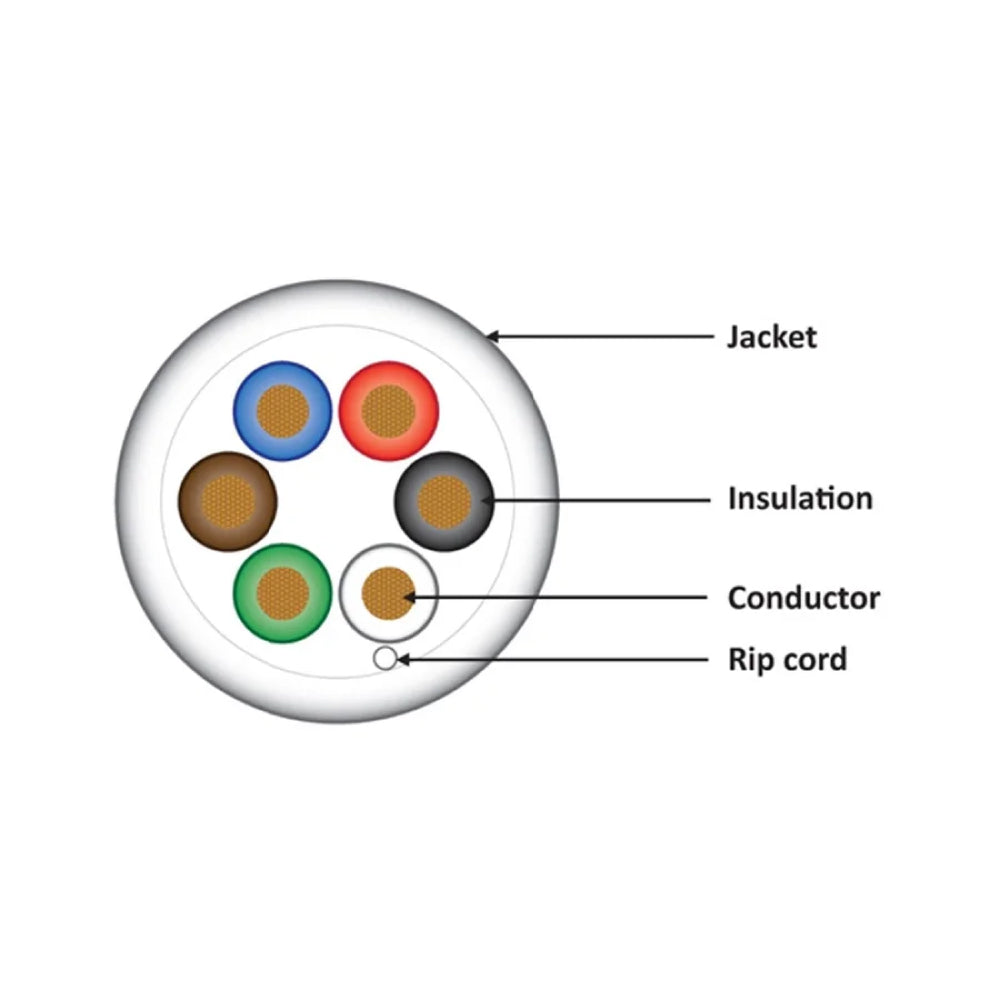

• Conductor: Stranded Bare Copper · AWG: 18 · Conductors: 6 (Black/Red/White/Green/Brown/Blue)
• Shielding: None (Unshielded) · Ripcord: Yes
• Jacket: Remguard Low-Smoke FR-PVC, CMP/CL2P · Color: White
• OD: 5.70 mm · Weight: 53 lbs/1000ft · Voltage: 300V

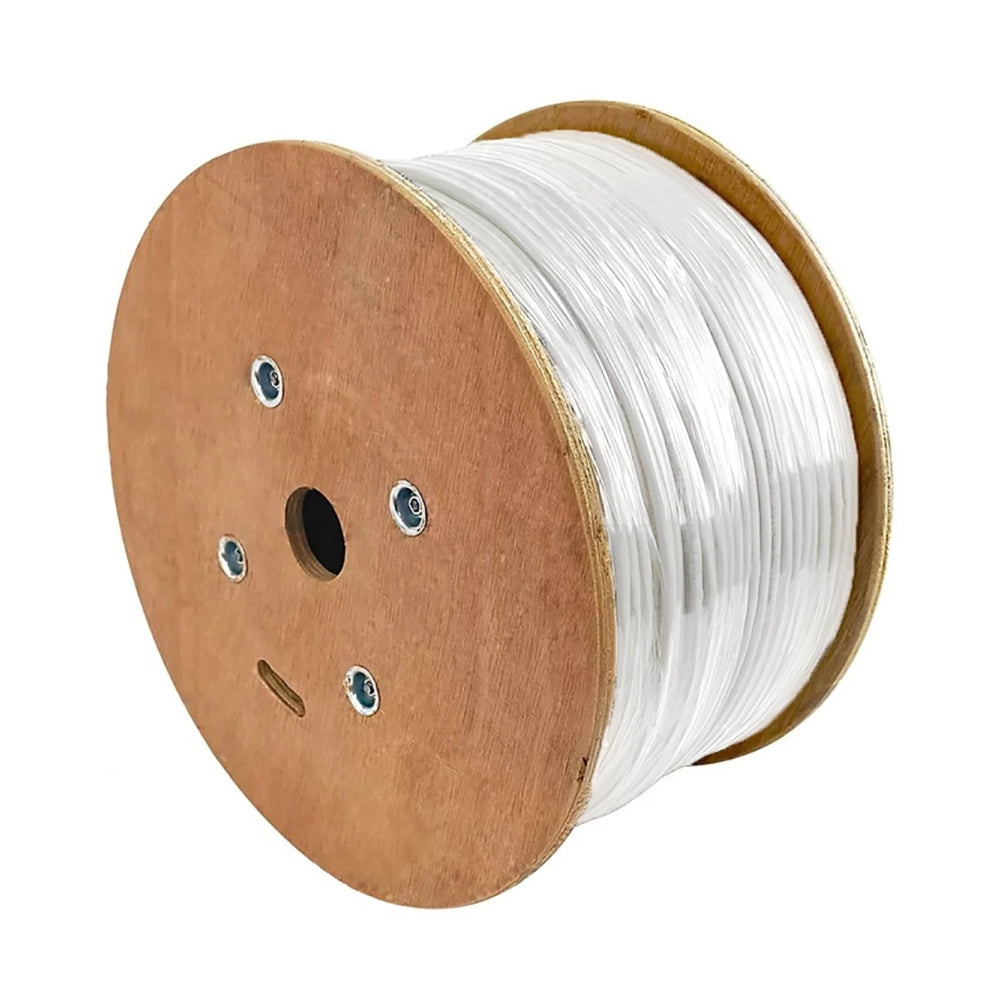

• Packaging: 1000ft Reel
Typical Applications:
• Complex security panels and multi-zone alarm systems
• Multi-channel audio zone wiring
• Access control with door monitoring
• HVAC building automation controllers
• Above-ceiling plenum runs requiring the highest fire rating
