Shielded Fire Alarm Cable 16AWG 2 Solid Conductors Bare Copper FPLR Riser 1000ft Red
SKU:
4095-Big
Sale price
$316.99
Regular price
$344.99
Unit price
8% off
-
16AWG Solid Bare Copper · 2 Conductors Black/Red
-
AL-Foil Shield + Drain Wire · PVC Insulation
-
C(UL) Listed FPLR · UL 1424 · UL 1666
-
OD 0.189 in. · 30 lbs/1000ft · Temp 75°C
-
FR-PVC Jacket · Rip Cord · NEC Article 760
Save More on Bulk Orders
SAVE MORE
on Bulk OrdersThe more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
Need a custom quote?
Contact our team for large volume pricing.
Contact Us
Contact our team for large volume pricing.
Price-match guarantee
FREE shipping
Lifetime warranty

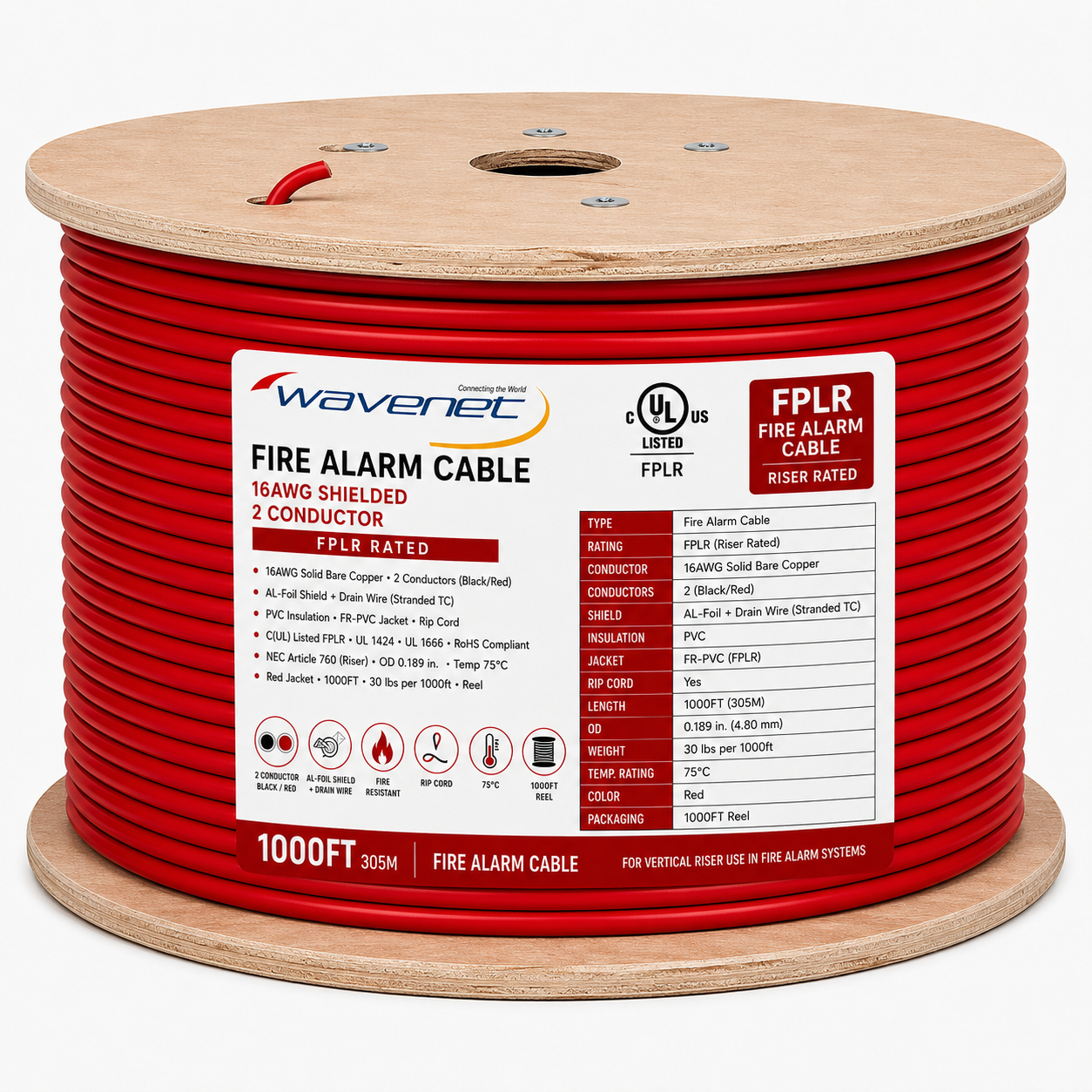

Shielded Fire Alarm Cable 16AWG 2 Solid Conductors Bare Copper FPLR Riser 1000ft Red
$344.99
$316.99
SKU:
4095-Big
Sale price
$316.99
Regular price
$344.99
Unit price
-
𝐅𝐏𝐋𝐑 𝐑𝐀𝐓𝐄𝐃 𝐅𝐎𝐑 𝐑𝐈𝐒𝐄𝐑 𝐑𝐔𝐍𝐒 FPLR rating meets NEC Article 760 for vertical riser shafts between floors — and also substitutes for FPL in any non-plenum location in the building.
-
𝐋𝐎𝐍𝐆𝐄𝐑 𝐑𝐔𝐍𝐒 𝐇𝐄𝐀𝐕𝐈𝐄𝐑 𝐋𝐎𝐀𝐃𝐒 16AWG lower resistance supports longer NAC runs and more devices per circuit — choose when 18AWG limits circuit distance or device count.
-
𝐀𝐋-𝐅𝐎𝐈𝐋 𝐁𝐋𝐎𝐂𝐊𝐒 𝐄𝐌𝐈 𝐀𝐍𝐃 𝐑𝐅𝐈 AL-foil shield and drain wire block EMI from motors, HVAC, and electrical panels — keeping alarm signals clean in large commercial buildings.
-
𝐒𝐎𝐋𝐈𝐃 𝐁𝐀𝐑𝐄 𝐂𝐎𝐏𝐏𝐄𝐑 𝟏𝟔𝐀𝐖𝐆 Solid bare copper delivers stable signal integrity and long-term electrical performance for fire protection circuits across the full 1000ft reel.
-
𝐈𝐍𝐒𝐓𝐀𝐋𝐋𝐄𝐑 𝐑𝐄𝐀𝐃𝐘 𝐑𝐄𝐄𝐋 Red jacket for instant fire alarm identification. Rip cord for fast jacket removal. Sequential footage markings. 1000ft reel for large installations.
Description
Description
FPLR-rated 16AWG shielded fire alarm cable for vertical riser runs in shafts and between floors. FPLR is the riser rating under NEC Article 760, required for circuits running vertically through more than 1 floor. Substitutes for FPL; FPLP substitutes for FPLR.
16AWG sits between 14AWG and 18AWG in the fire alarm range: lower resistance than 18AWG for longer NAC runs and more devices per circuit, while staying thinner and lighter than 14AWG for shorter runs and tighter conduit fill. AL-foil shield with drain wire blocks EMI from motors, HVAC, and electrical panels, keeping alarm signals clean in large buildings.
Standards: C(UL) Listed FPLR · UL 1424 · UL 1666 · RoHS Compliant
Technical Specifications:

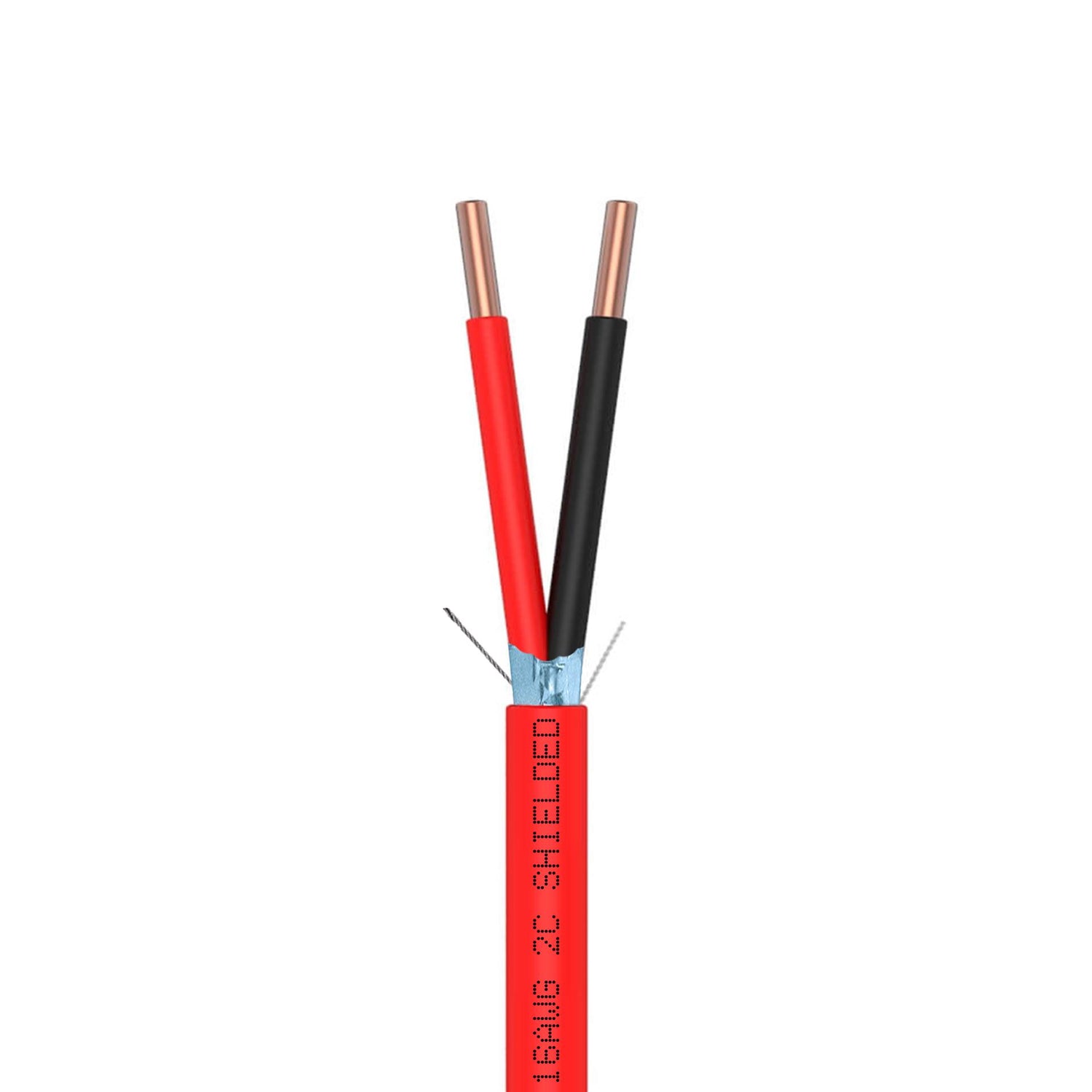

• Conductor: Solid Bare Copper · AWG: 16 · Conductors: 2 (Black/Red)
• Shield: AL-Foil + Drain Wire (Stranded TC) · Insulation: PVC
• Jacket: FR-PVC FPLR · Rip Cord: Yes · Color: Red
• OD: 0.189 in. · Weight: 30 lbs · Rated Temp: 75°C
• Packaging: 1000ft Reel
Typical Applications:
• Vertical riser runs in shafts and stairwells between floors
• Notification appliance circuits (NAC) — horns, strobes, sirens
• Addressable fire alarm and detection systems
• Runs near motors, HVAC, and electrical panels requiring EMI shielding
• Combined fire alarm and security/burglar alarm system wiring
