27U Standing Server Rack Cabinet 32in Deep for 19in Network Equipment Casters Steel Black
-
27U · 25.2” W x 55.3” H x 33.1” D
-
32in Deep · 27in Usable Depth
-
1700 lb Load Capacity (Properly Secured)
-
Fan Tray · (4) 68CFM Fans Pre-Installed
-
#12-24 Rails · Casters · Ships Fully Assembled
SAVE MORE
on Bulk Orders
The more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 3–9 units | $855.53 / unit | 3% |
| 10–19 units | $837.89 / unit | 5% |
| 20+ units | $820.25 / unit | 7% |
Price-match guarantee
FREE shipping
Lifetime warranty
-
𝟏𝟕𝟎𝟎 𝐋𝐁 𝐇𝐄𝐀𝐕𝐘 𝐃𝐔𝐓𝐘 𝐂𝐀𝐏𝐀𝐂𝐈𝐓𝐘 Loaded server rooms and dense equipment stacks stay solid — this cabinet holds up to 1700 lbs when properly secured.
-
𝐏𝐄𝐑𝐅𝐎𝐑𝐀𝐓𝐄𝐃 𝐃𝐎𝐎𝐑𝐒 𝐄𝐕𝐄𝐑𝐘𝐖𝐇𝐄𝐑𝐄 Airflow moves through the perforated front and split rear doors even fully loaded and locked, keeping equipment running cool.
-

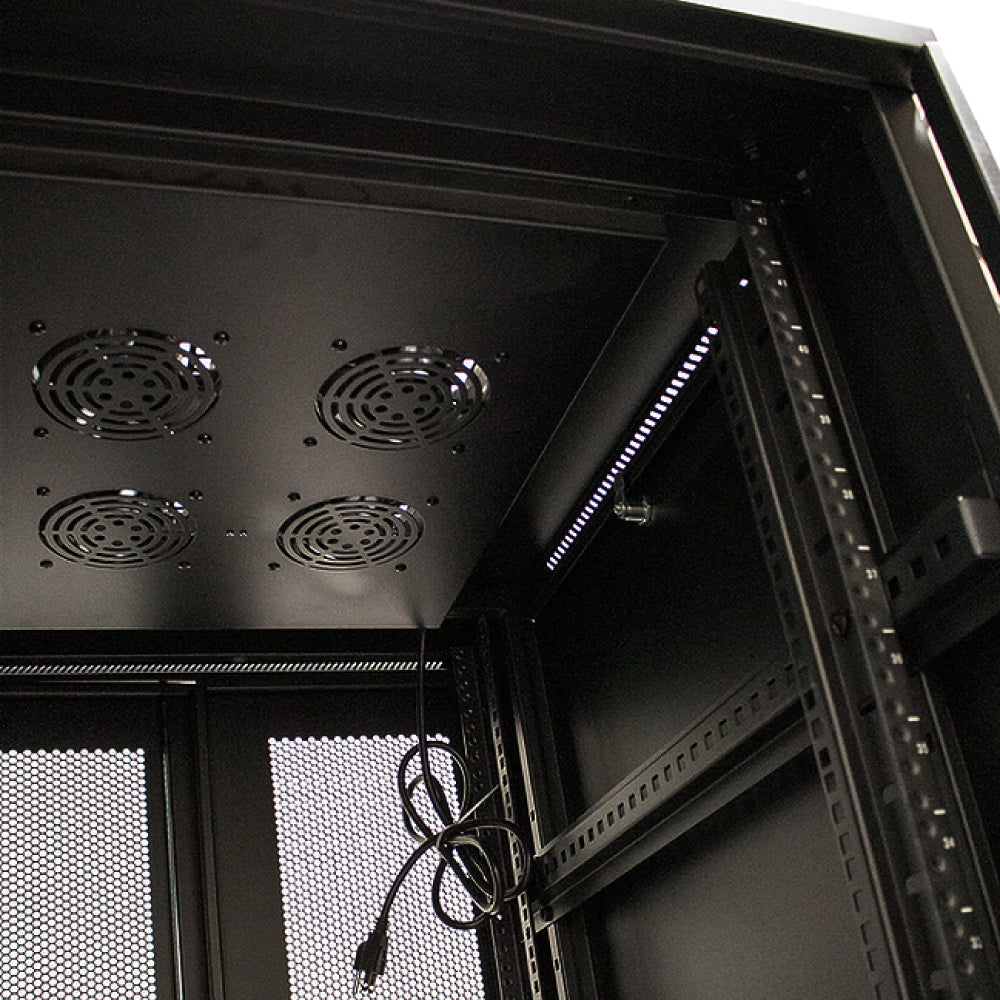

𝐅𝐎𝐔𝐑 𝐅𝐀𝐍 𝐓𝐑𝐀𝐘 𝐁𝐔𝐈𝐋𝐓 𝐈𝐍 A pre-installed tray of four 68CFM fans handles cooling for a full 27U of dense networking gear from day one.
-
𝐑𝐎𝐋𝐋𝐒 𝐈𝐍𝐓𝐎 𝐏𝐋𝐀𝐂𝐄 𝐀𝐍𝐃 𝐋𝐄𝐕𝐄𝐋𝐒 Four casters get it into position, then four leveling feet lock it steady — no separate hardware to source.
-
𝐓𝐖𝐎 𝐑𝐀𝐈𝐋 𝐓𝐘𝐏𝐄𝐒 𝐅𝐎𝐑 𝐘𝐎𝐔𝐑 𝐆𝐄𝐀𝐑 Choose #12-24 threaded rails or M6 cage nut rails to match the mounting hardware your equipment actually uses.
Description
Description

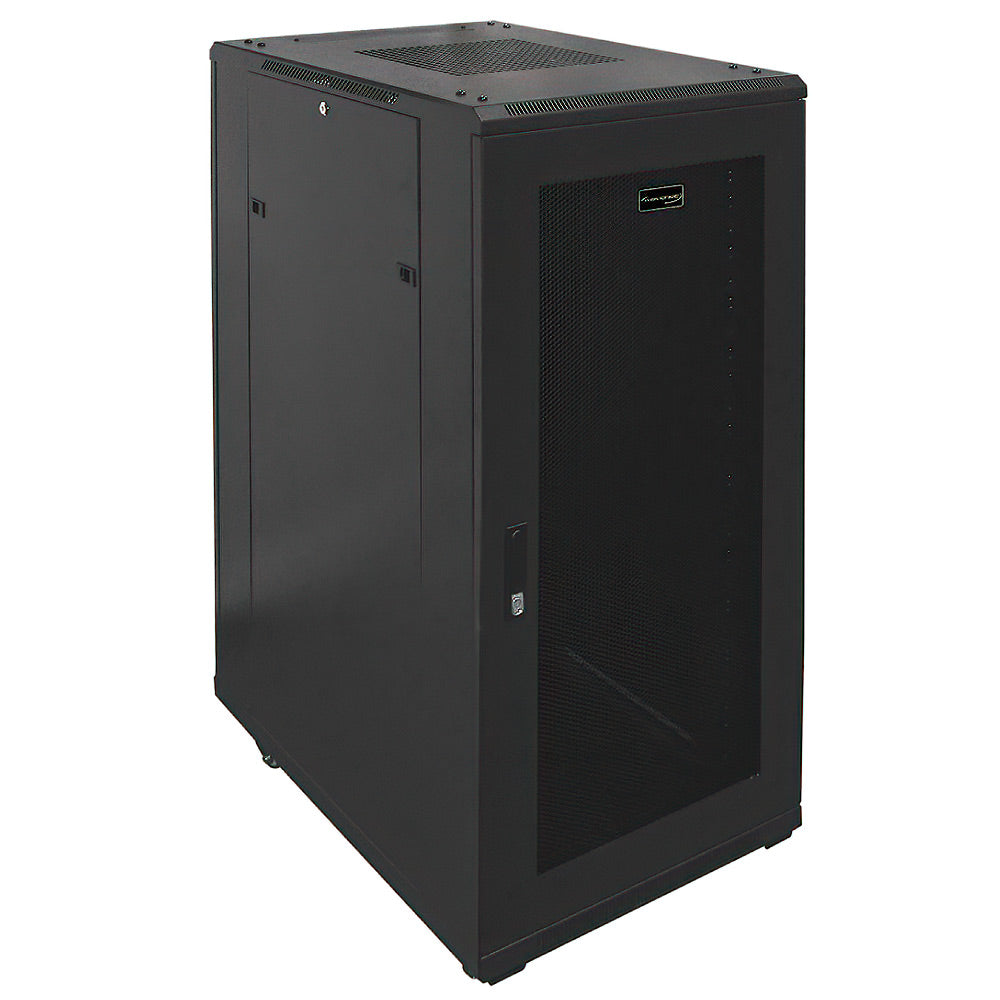

House data center, telecom, and networking equipment at scale with this 27U floor standing network server cabinet, built for IDF and MDF telecommunications rooms, data/audio/video/security applications, wiring closets, and manufacturing areas.

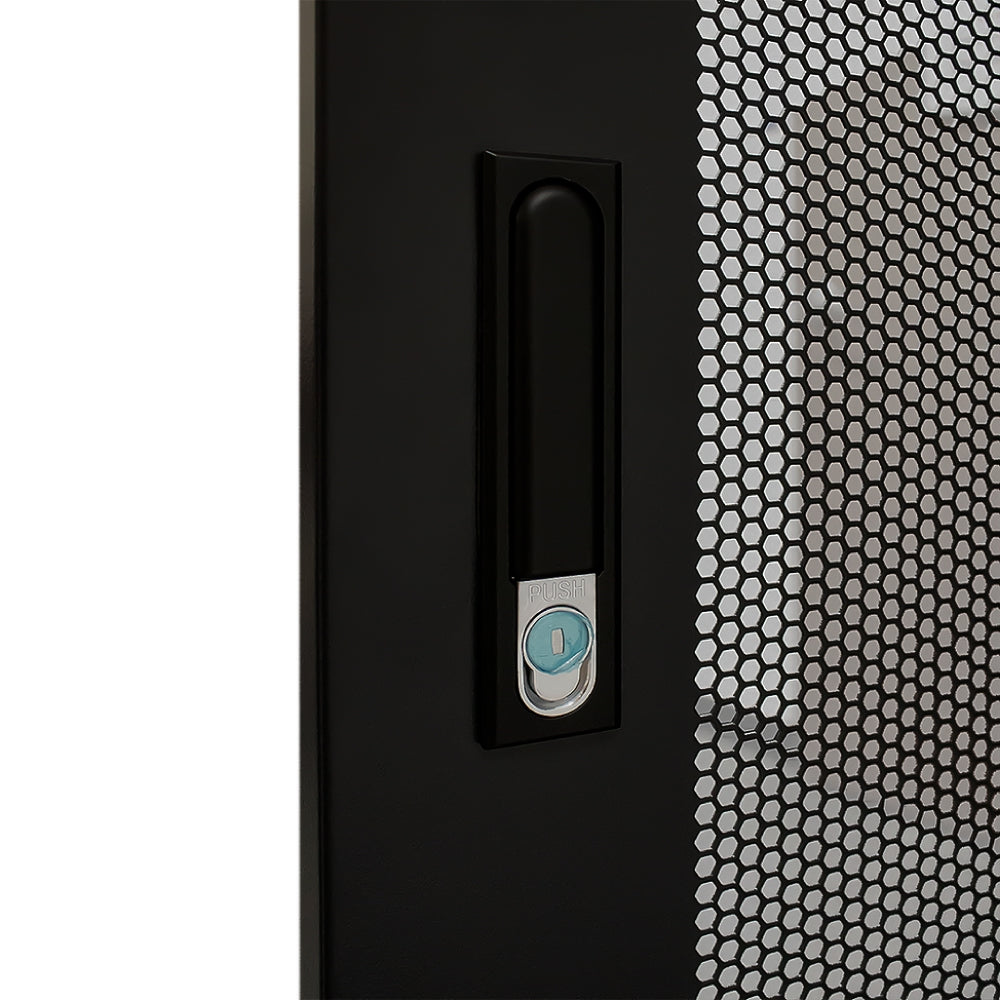

The perforated front door and split rear doors give secure, lockable access from every side while maintaining airflow, and the front door is reversible for right- or left-handed swing. A pre-installed fan tray with (4) 68CFM fans keeps equipment cool, and four pre-installed casters with leveling feet make positioning straightforward. Ships fully assembled.
Standards: ANSI/EIA 310-D · IEC60297-2 · DIN41194 Part 1 · DIN41494 Part 7 · RoHS
Technical Specifications:
• Rack Size: 27U · Dimensions: 25.2” W x 55.3” H x 33.1” D
• Overall Depth: 32in · Usable Depth: 27in
• Load Capacity: 1700 lbs (When Properly Secured)
• Rail Type: #12-24 Threaded · Material: Steel · Finish: Black
• Cooling: Pre-Installed Fan Tray, (4) 68CFM Fans
• Package: Cabinet (1), 4 Casters + 4 Leveling Feet, 2 Keys — Ships Fully Assembled
Typical Applications:
• IDF and MDF telecommunications rooms
• Data center and server room equipment mounting
• Audio/video and security equipment protection
• Wiring closets, manufacturing areas, and warehouses
• Small-to-large networking equipment installations
Specifications
Specifications
-
