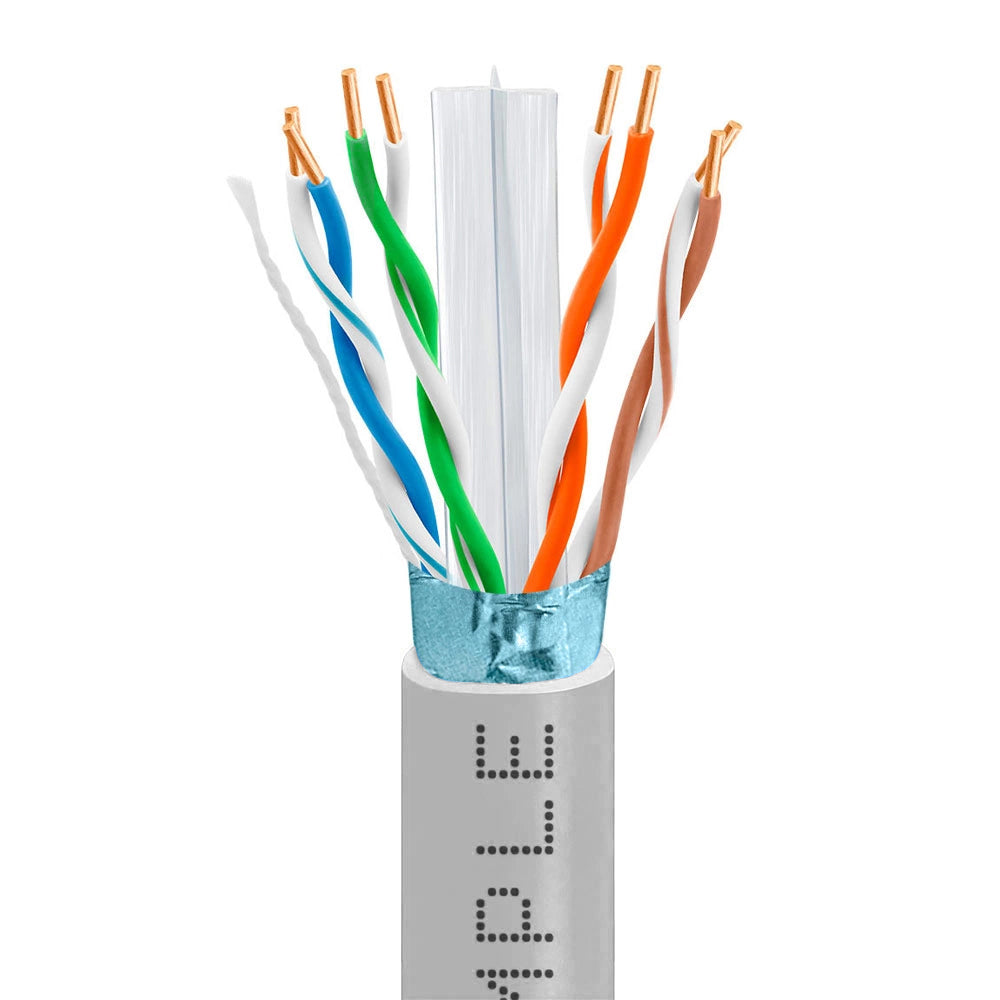

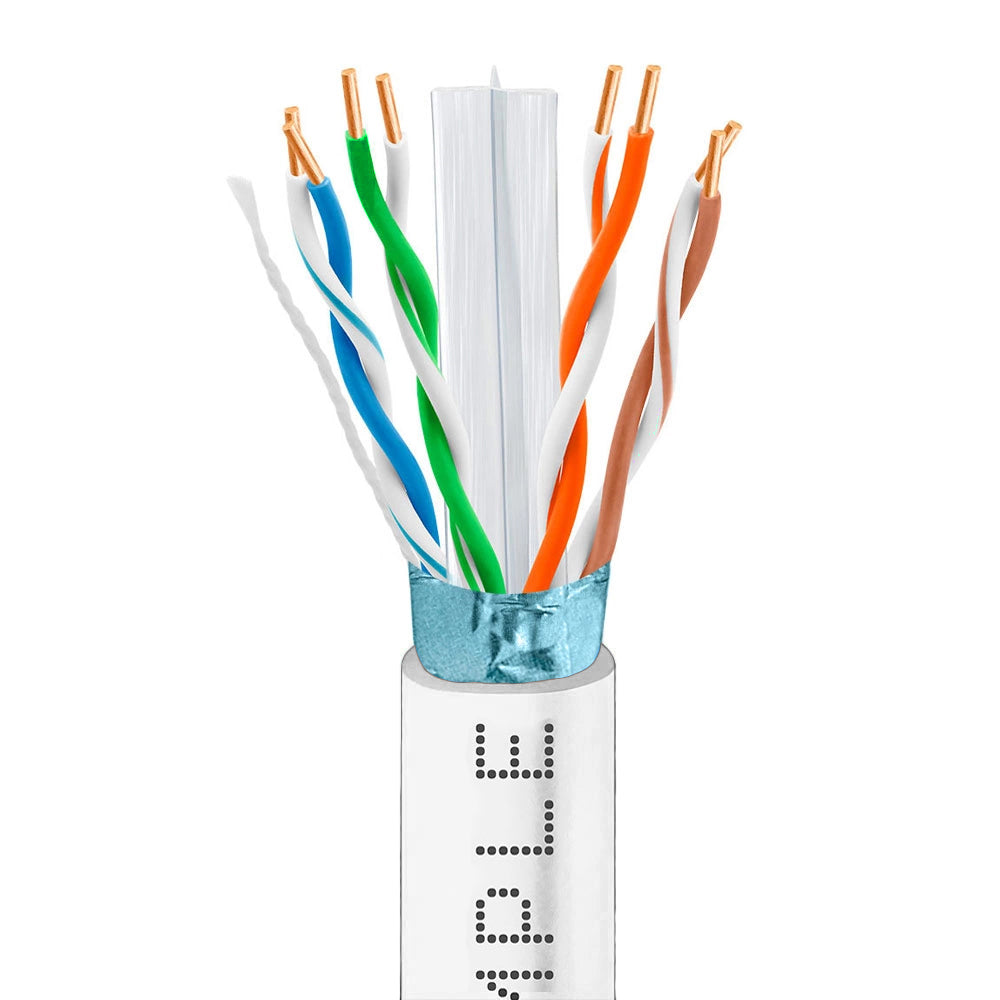

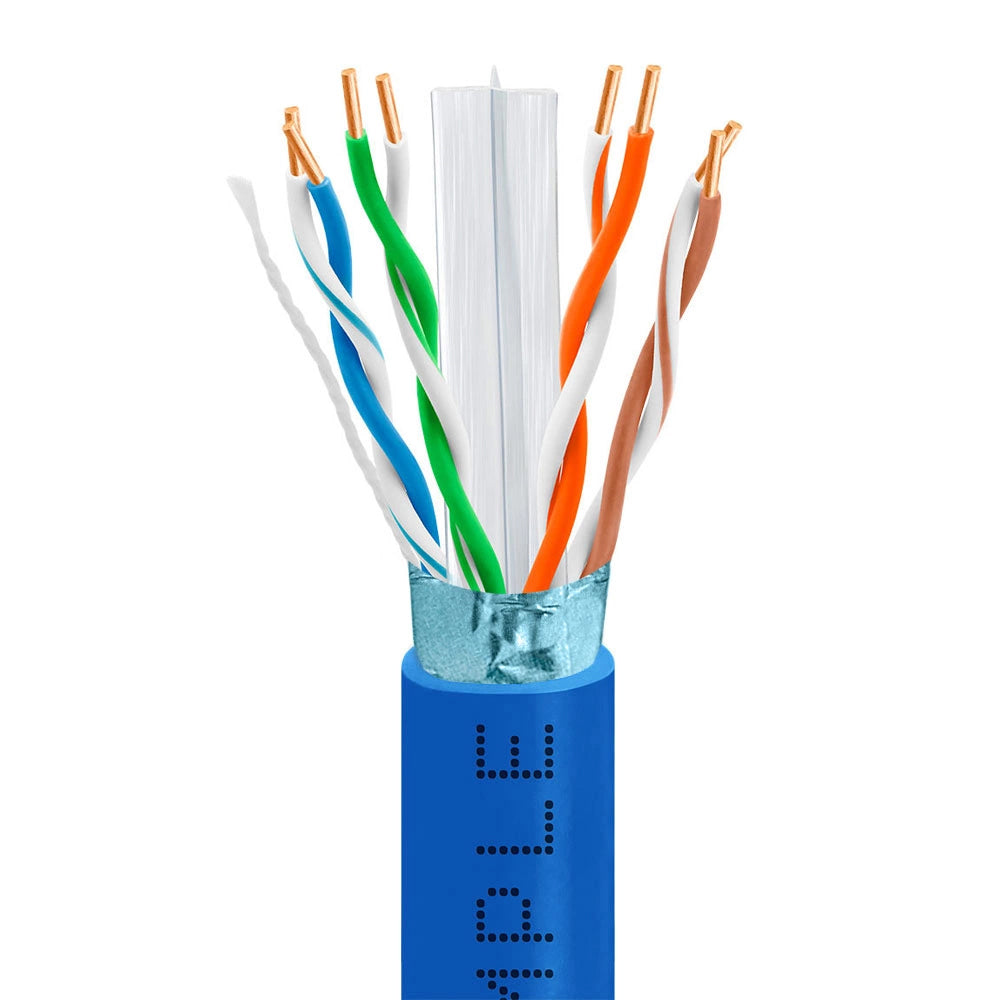

Cat6 Shielded Plenum Ethernet Cable 1000ft 23AWG Solid Bare Copper 600MHz CMP ETL Listed
-
23AWG Solid Bare Copper · 4 Shielded Twisted Pairs
-
FEP Insulation · Low Smoke FR-PVC CMP/FT6 Jacket
-
AL-Foil F/UTP Shield · Blocks EMI and Crosstalk
-
C(ETL) Listed FT6 · TIA-568-C.2 · RoHS Compliant
-
600MHz · 10Gb to 165ft · Separator · Ripcord
SAVE MORE
on Bulk Orders
The more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 3–9 units | $534.84 / unit | 5% |
| 10–19 units | $523.58 / unit | 7% |
| 20+ units | $506.69 / unit | 10% |
Price-match guarantee
FREE shipping
Lifetime warranty
Cat6 Shielded Plenum Ethernet Cable 1000ft 23AWG Solid Bare Copper 600MHz CMP ETL Listed
-
𝐏𝐋𝐄𝐍𝐔𝐌 𝐂𝐄𝐑𝐓𝐈𝐅𝐈𝐄𝐃 𝐂𝐌𝐏/𝐅𝐓𝟔 CMP/FT6-rated jacket is approved for above-ceiling plenum spaces and also covers riser and in-wall runs in commercial buildings and offices.
-
𝐀𝐋-𝐅𝐎𝐈𝐋 𝐄𝐌𝐈 𝐒𝐇𝐈𝐄𝐋𝐃 𝐅/𝐔𝐓𝐏 Overall aluminum foil shield blocks EMI and reduces crosstalk from HVAC, electrical panels, and dense cable runs in commercial environments.
-
𝐒𝐎𝐋𝐈𝐃 𝐁𝐀𝐑𝐄 𝐂𝐎𝐏𝐏𝐄𝐑 𝟐𝟑𝐀𝐖𝐆 Solid bare copper conductors deliver maximum conductivity and long-term signal reliability across every permanent plenum installation.
-
𝐅𝐄𝐏 𝐈𝐍𝐒𝐔𝐋𝐀𝐓𝐈𝐎𝐍 𝐋𝐎𝐖 𝐒𝐌𝐎𝐊𝐄 FEP insulation handles plenum temperatures and produces less toxic smoke in a fire than standard PVC, meeting strict CMP flame requirements.
-

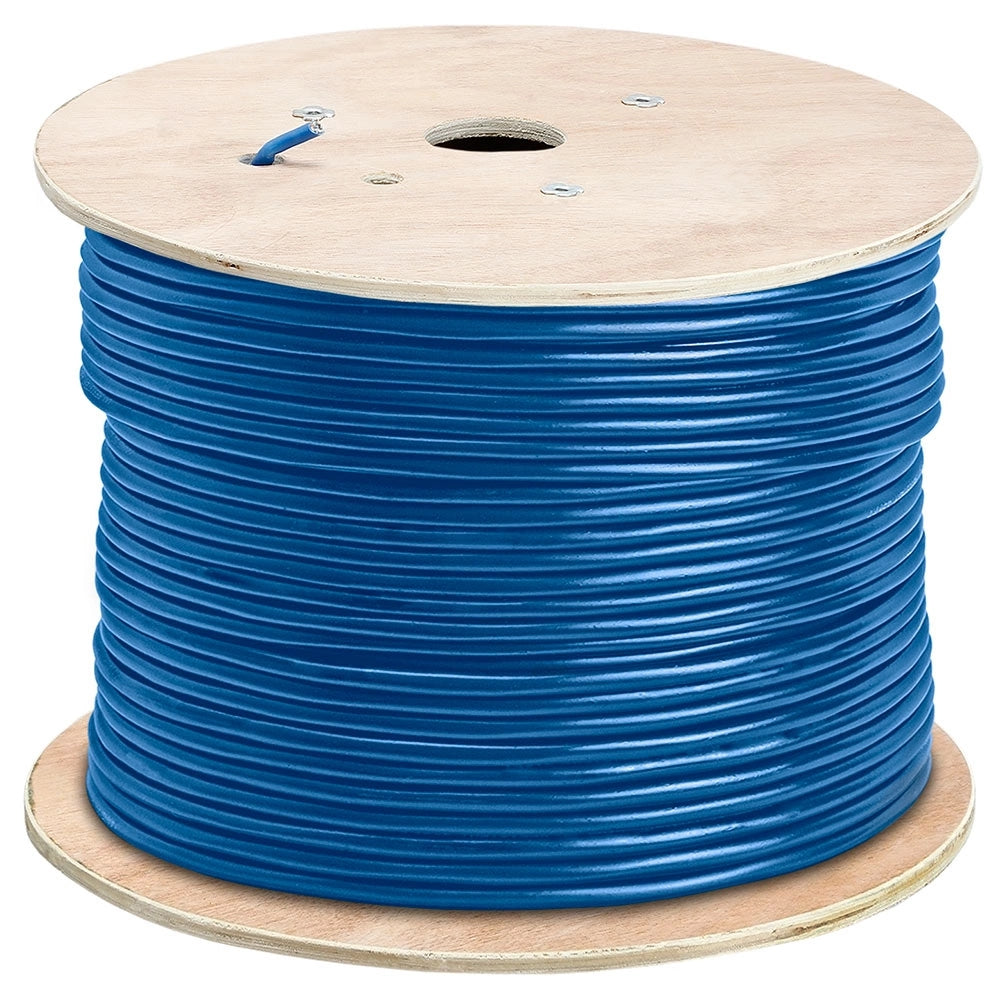

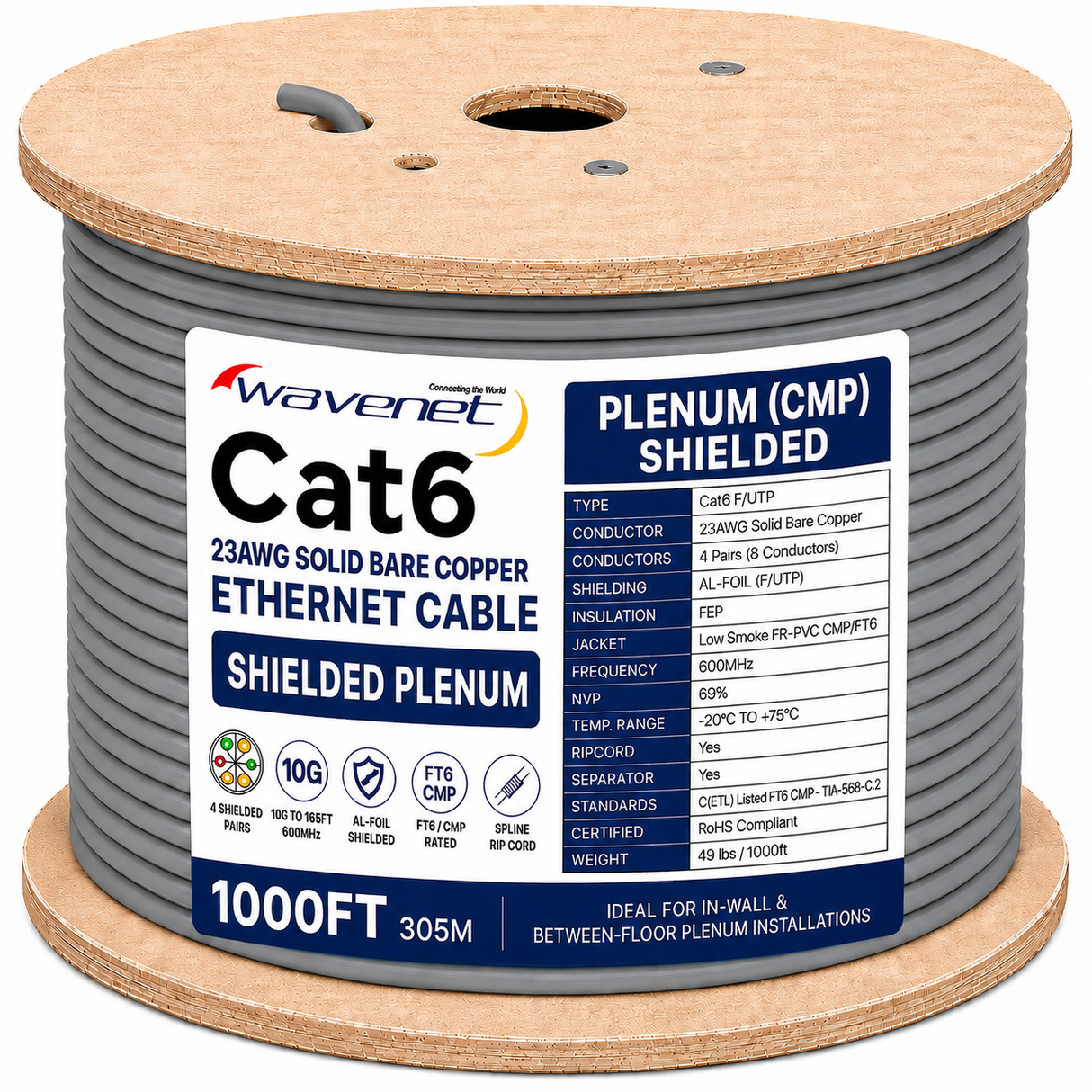

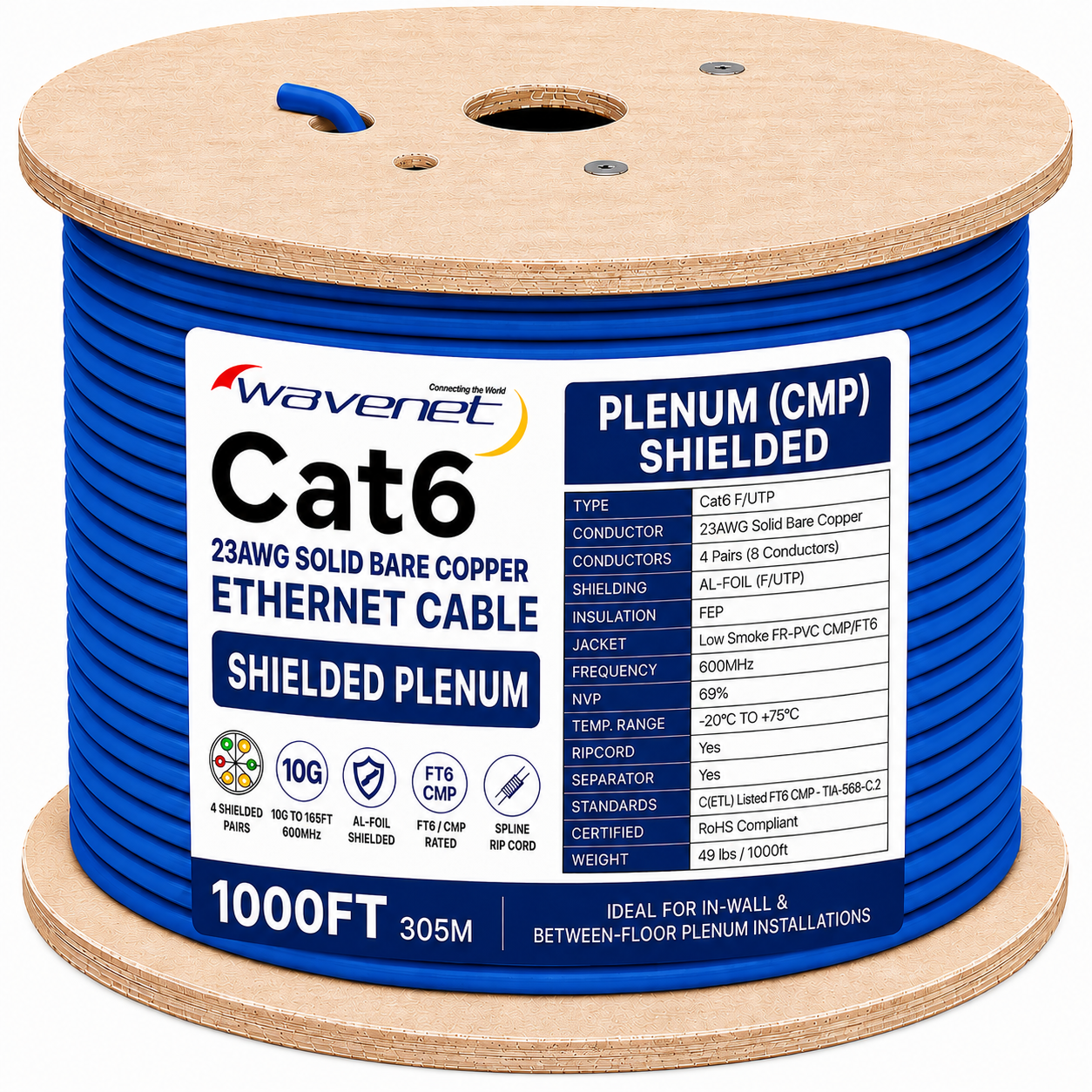

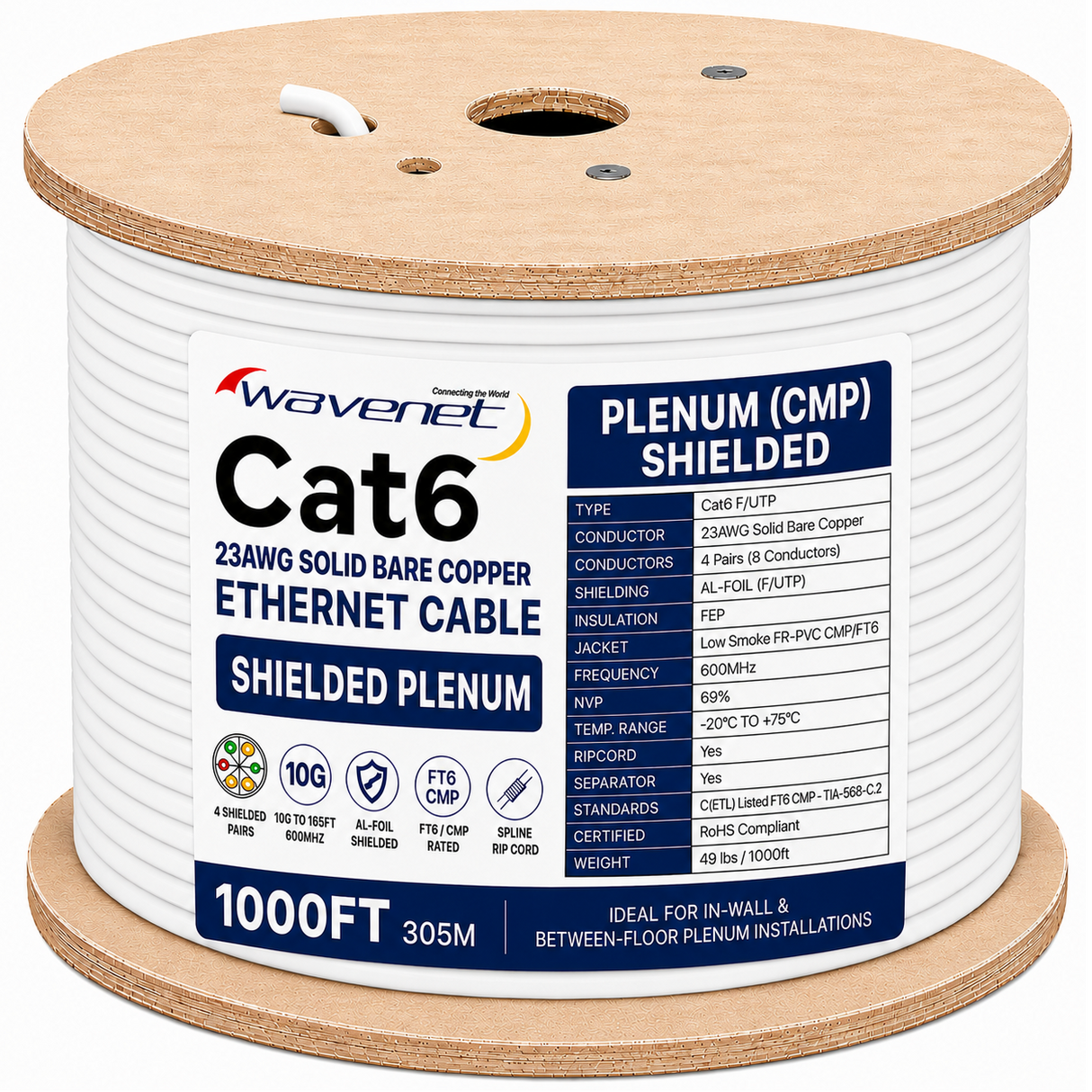

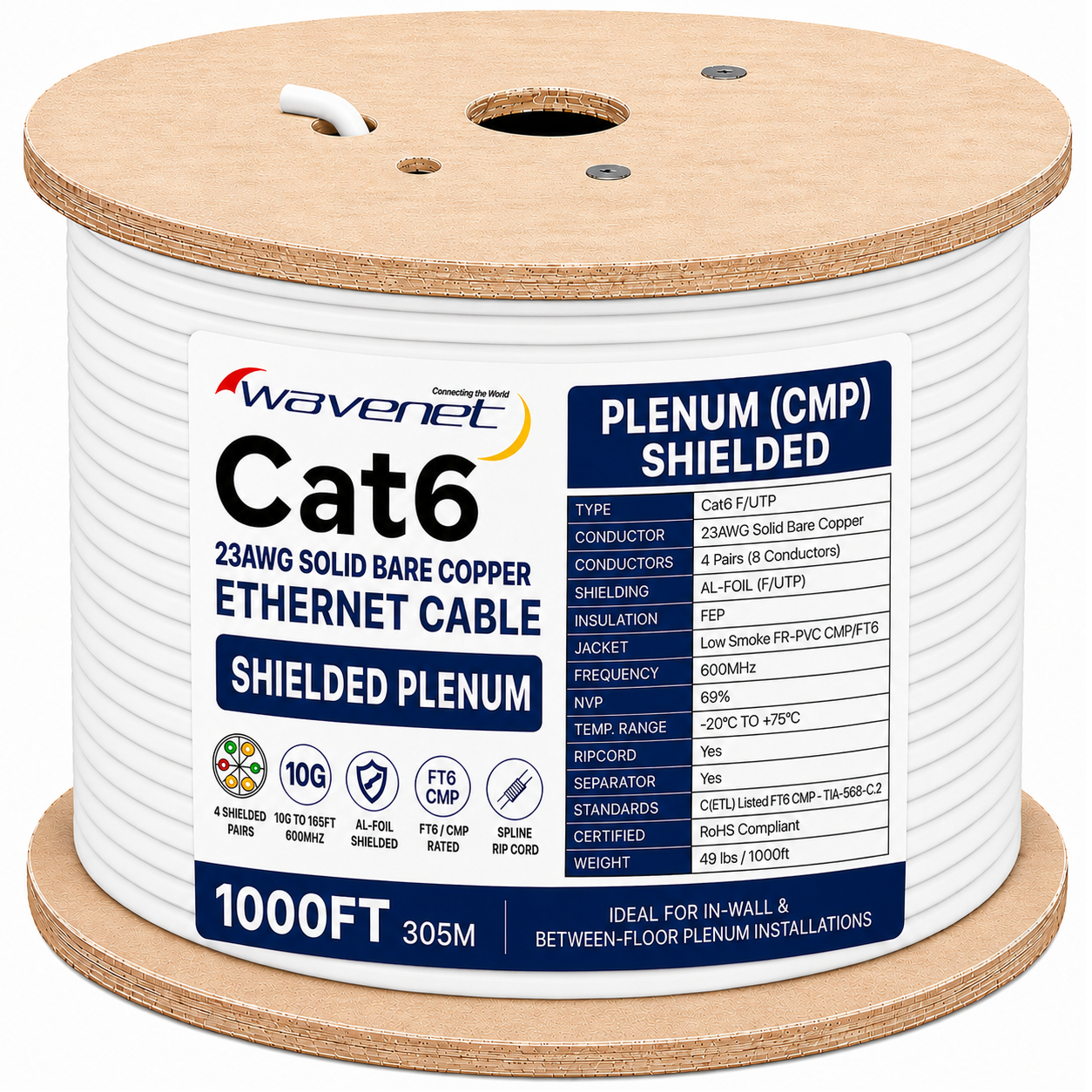

𝐏𝐑𝐎 𝐈𝐍𝐒𝐓𝐀𝐋𝐋𝐀𝐓𝐈𝐎𝐍 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒 1000ft reel with spline separator, ripcord, and sequential footage markings for organized payout, clean jacket removal, and accurate cuts.
Description
Description
This Cat6 CMP-rated shielded plenum Ethernet cable is built for above-ceiling air-handling spaces and can also replace CMR or in-wall cable in any installation. 23AWG solid bare copper conductors deliver strong signal, and the overall F/UTP aluminum-foil shield blocks EMI and reduces crosstalk from HVAC units, electrical panels, and dense cable runs. FEP insulation meets strict low-smoke plenum requirements that standard PVC cannot.
Note: shielded cable requires shielded RJ45 connectors and proper grounding for full EMI protection.
Standards: C(ETL) Listed FT6 CMP · C(ETL)US Verified ANSI/TIA-568-C.2 · RoHS Compliant
Technical Specifications:
• Conductor: Solid Bare Copper · AWG: 23 · Pairs: 4 F/UTP (AL-Foil Shielded)
• Insulation: FEP · Jacket: Low Smoke FR-PVC CMP/FT6
• Separator: Yes · Ripcord: Yes · OD: 0.311 in. · Weight: 49 lbs · NVP: 69%
• Performance: 600MHz · Gigabit to 328ft · 10Gb to 165ft
• Packaging: 1000ft Reel
• Colors: White, Gray, Blue
Typical Applications:
• Plenum-rated structured cabling in offices, schools, and hospitals
• EMI-sensitive runs near HVAC, electrical panels, and industrial equipment
• Shielded network backbone in commercial and data-center environments
• In-wall and riser runs wherever CMP is required or preferred
• Security and access-control cabling in electrically noisy spaces
