Alarm Security Wire 22AWG 6 Stranded Bare Copper Conductors Shielded CMR CL2R 1000ft White
SKU:
1326-Big
Sale price
$299.99
Regular price
$449.99
Unit price
33% off
-
7-Strand Bare Copper · 22AWG · 6 Conductors
-
AL-Mylar + AL Foil + PE Tape + 24AWG TC Drain
-
FR-PVC Jacket · CMR/FT4 · C(ETL)US · CL2R
-
OD 0.163 in. (4.14 mm) · 28 lbs · 300V RMS
-
Colors: Grn/Red/Blk/Wht/Brn/Blu · Rip Cord
Save More on Bulk Orders
SAVE MORE
on Bulk OrdersThe more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
Need a custom quote?
Contact our team for large volume pricing.
Contact Us
Contact our team for large volume pricing.
Price-match guarantee
FREE shipping
Lifetime warranty
Alarm Security Wire 22AWG 6 Stranded Bare Copper Conductors Shielded CMR CL2R 1000ft White
$449.99
$299.99
SKU:
1326-Big
Sale price
$299.99
Regular price
$449.99
Unit price
-
𝟔 𝐂𝐎𝐍𝐃𝐔𝐂𝐓𝐎𝐑𝐒 𝐎𝐍𝐄 𝐂𝐀𝐁𝐋𝐄 𝐑𝐔𝐍 6 color-coded conductors handle power, signal, tamper loops, auxiliary zones, and access control functions over a single shielded run.
-
𝐌𝐔𝐋𝐓𝐈-𝐋𝐀𝐘𝐄𝐑 𝐒𝐇𝐈𝐄𝐋𝐃 𝐒𝐓𝐎𝐏𝐒 𝐄𝐌𝐈 AL-Mylar foil, PE tape, AL foil, and 24AWG tinned copper drain wire deliver superior protection against RFI and power frequency interference.
-
𝐂𝐌𝐑 𝐑𝐀𝐓𝐄𝐃 𝐅𝐎𝐑 𝐈𝐍-𝐖𝐀𝐋𝐋 𝐑𝐔𝐍𝐒 FR-PVC jacket meets fire code for permanent in-wall and riser installations between floors. C(ETL)US Listed, CMR/FT4, CL2R, Class 2 Power Limited.
-
𝐒𝐓𝐑𝐀𝐍𝐃𝐄𝐃 𝐅𝐋𝐄𝐗𝐈𝐁𝐋𝐄 𝐂𝐎𝐍𝐃𝐔𝐂𝐓𝐎𝐑 7-strand bare copper bends through walls and conduit without kinking — essential for routing a 6-conductor cable through complex security installs.
-
𝟏𝟎𝟎𝟎𝐅𝐓 𝐑𝐄𝐄𝐋𝐄𝐗 𝐈𝐈 𝐏𝐔𝐋𝐋 𝐁𝐎𝐗 1000ft Reelex II pull box delivers tangle-free straight payout on every pull — professional packaging for professional security cable installations.
Description
Description

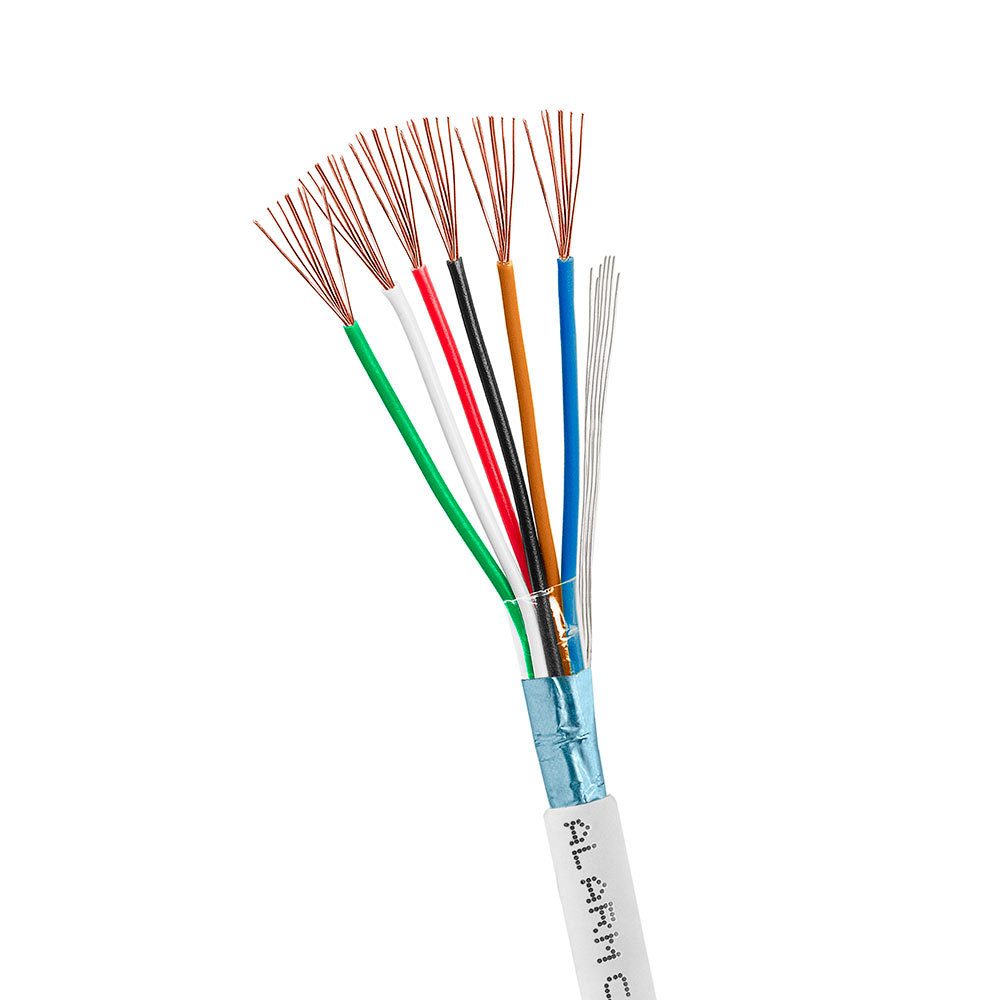

Wire complex, multi-zone security systems with one cable — this 22/6 shielded stranded alarm wire carries six color-coded conductors inside a multi-layer aluminum Mylar foil shield, rated CMR/FT4 and C(ETL)US Listed.
Six conductors handle multiple functions over one run: power, signal, tamper loops, and access control back to the panel. The three-layer shield — Low Smoke AL-Mylar foil, PE tape, and 24AWG tinned copper drain wire — protects against RF and power frequency interference that causes false alarms. Stranded conductors add flexibility for routing through walls.
Standards: C(ETL)US Listed (Intertek) · CMR/FT4 Rated · CL2R · Class 2 Power Limited · UL STD 444 · CAN/CSA STD C22.2 NO.214
Technical Specifications:
• Conductor: 7-Strand Bare Copper · AWG: 22 · Conductors: 6 (Green/Red/Black/White/Brown/Blue)
• Shield: Low Smoke AL-Mylar + PE Tape + AL Foil + 24AWG TC Drain Wire
• Jacket: FR-PVC CMR/FT4 · Color: White · Rip Cord: Yes
• OD: 0.163 in. · Weight: 28 lbs · Voltage: 300V RMS · Temp: -20°C to 75°C

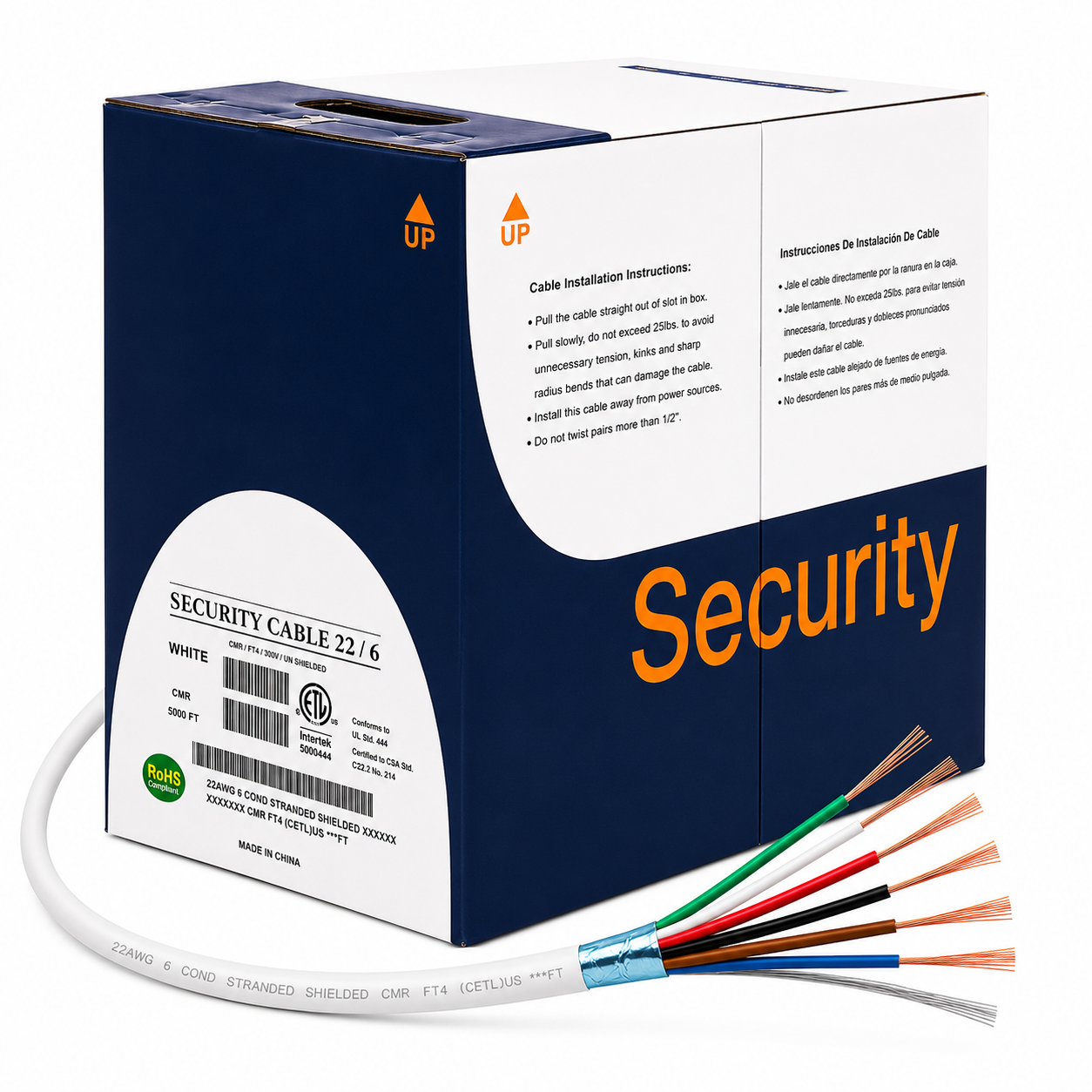

• Packaging: 1000ft Reelex II
Typical Applications:
• Multi-zone alarm panels with power, signal, and tamper loops
• Access control and auxiliary zone wiring
• Installations near motors and electrical interference
• Complex commercial and residential security systems
• In-wall and riser runs requiring EMI shielding
