Cat6 Ethernet Cable CMP Plenum 23AWG Solid Bare Copper No Spline UTP 550MHz 1000ft
-
23AWG Solid Bare Copper · 4 Unshielded Pairs
-
No Spline · OD 0.205 in. · Weight 26 lbs
-
FEP Insulation · Flame Retardant PVC Jacket
-
CMP/FT6 Rated · C(UL) Listed · TIA-568-C.2
-
550MHz · Gigabit to 328ft · NVP 70% · Ripcord
-
𝐓𝐇𝐈𝐍𝐍𝐄𝐑 𝐄𝐀𝐒𝐈𝐄𝐑 𝐓𝐎 𝐏𝐔𝐋𝐋 No spline means OD of 0.205 in. vs 0.236 in. on standard Cat6 CMP — fits tighter conduit, bends more naturally, and runs more cables per pathway.
-
𝐅𝐀𝐒𝐓𝐄𝐑 𝐓𝐎 𝐓𝐄𝐑𝐌𝐈𝐍𝐀𝐓𝐄 Without a central spline, jacket removal and pair separation go faster at every termination — significant time savings on large plenum installations.
-
𝐂𝐎𝐃𝐄-𝐑𝐄𝐐𝐔𝐈𝐑𝐄𝐃 𝐅𝐎𝐑 𝐏𝐋𝐄𝐍𝐔𝐌 CMP/FT6 jacket is required by fire code for air-handling spaces above drop ceilings — and also covers CMR and every lower-rated installation.
-
𝐅𝐄𝐏 𝐈𝐍𝐒𝐔𝐋𝐀𝐓𝐈𝐎𝐍 𝐋𝐎𝐖 𝐒𝐌𝐎𝐊𝐄 FEP insulation handles plenum temperatures and produces less toxic smoke in a fire than standard PVC, meeting the stricter CMP flame requirements.
-

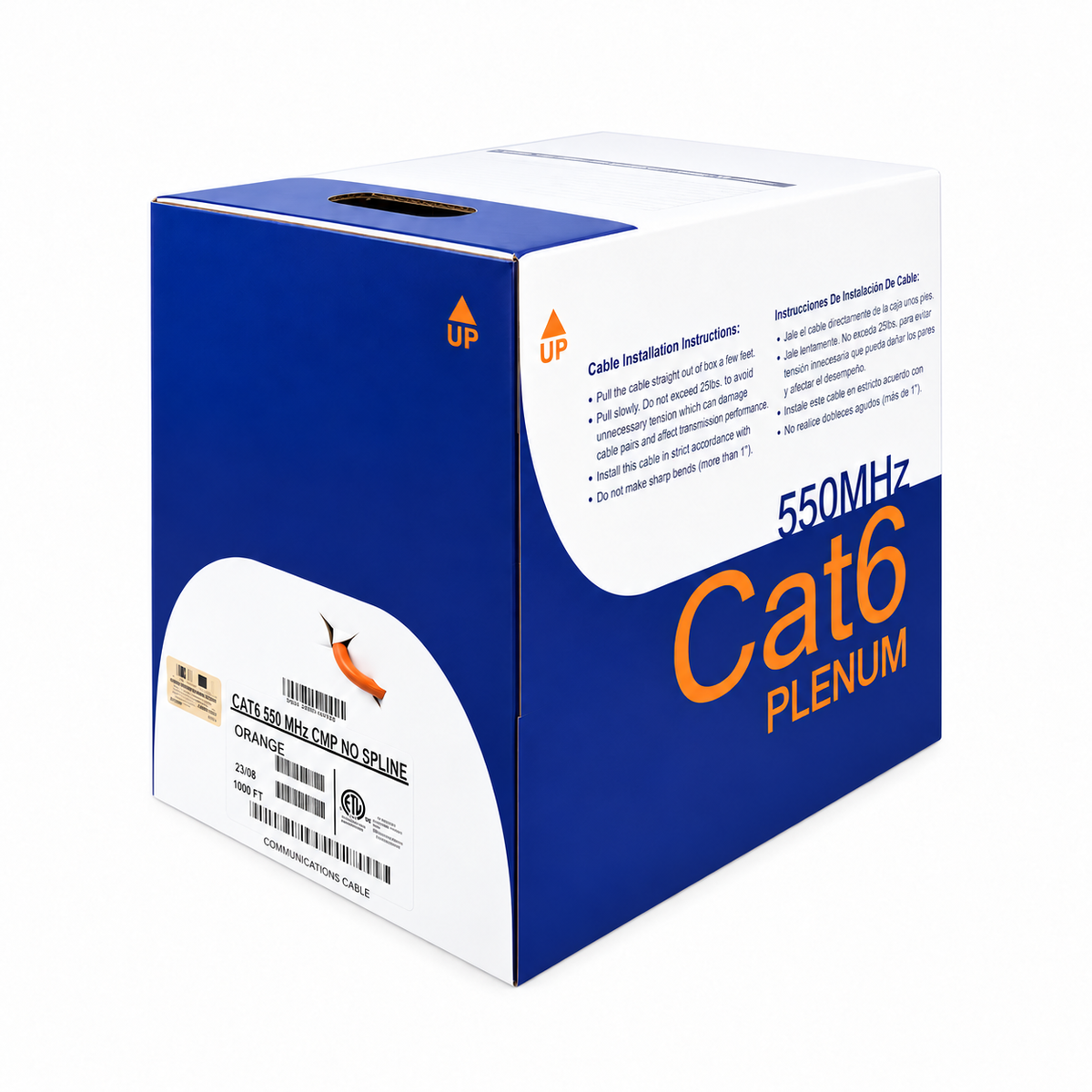

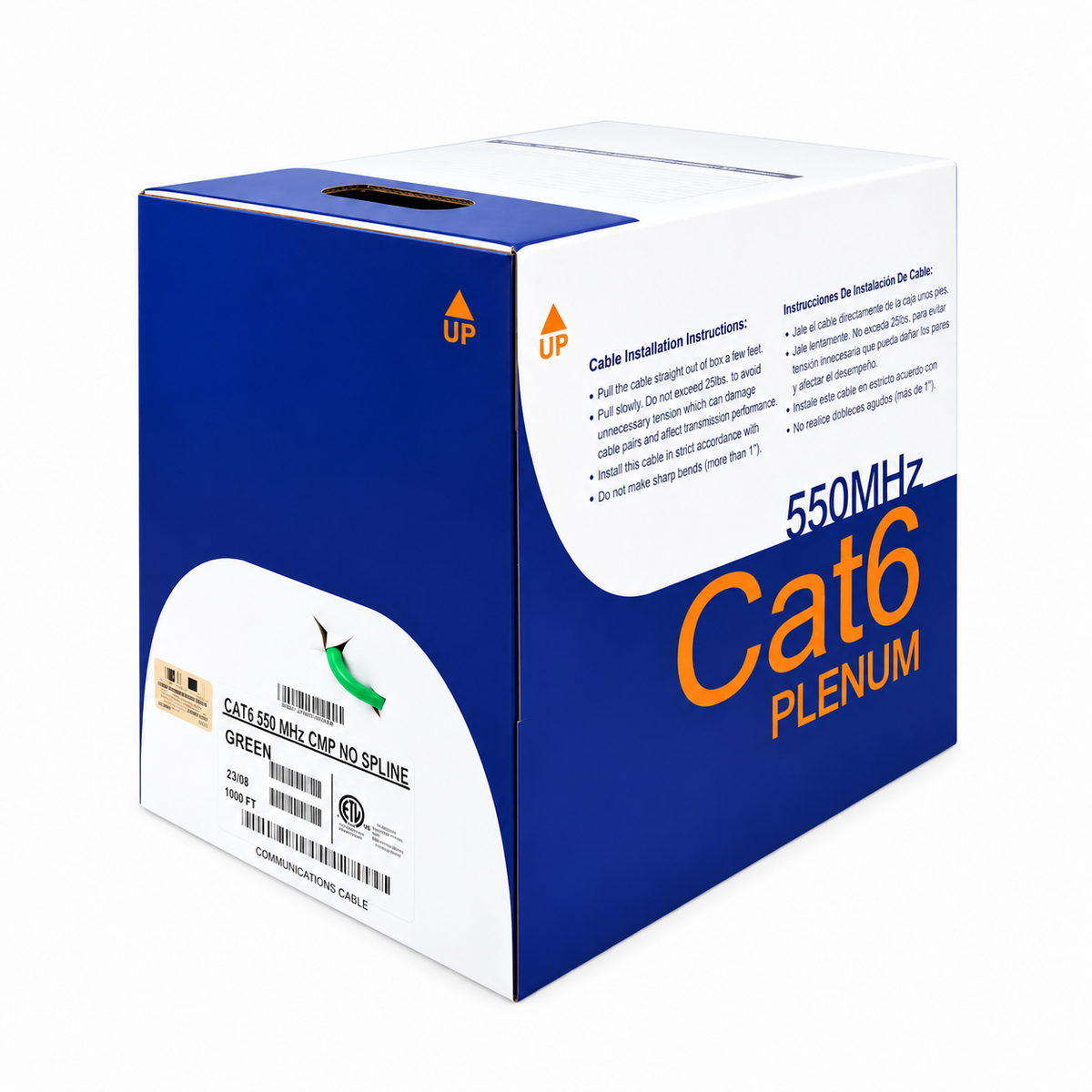

𝐄𝐀𝐒𝐘 𝐏𝐔𝐋𝐋 𝐁𝐎𝐗 𝐈𝐍𝐂𝐋𝐔𝐃𝐄𝐃 1000ft Reelex II easy pull box with rip cord and sequential footage markings for tangle-free payout and clean terminations on every run.
Description
Description
Cat6 CMP-rated plenum ethernet cable designed without a spline separator for installations where flexibility, slim profile, and fast termination matter. Without the central spline, the cable is thinner (OD 0.205 in. vs 0.236 in. on spline Cat6 CMP), bends more naturally through tight conduit, and strips faster at every termination point. Supports Gigabit Ethernet at up to 328 feet with 550MHz bandwidth. CMP/FT6 rated — covers plenum, riser, and in-wall installations.
FEP insulation handles elevated temperatures and produces less toxic smoke than standard PVC. 23AWG solid bare copper, 4 unshielded twisted pairs, rip cord. Weight: 26 lbs per 1000ft. NVP: 70%.
Standards: C(UL) Listed FT6 CMP · C(UL)US Verified ANSI/TIA-568-C.2 · RoHS Compliant.

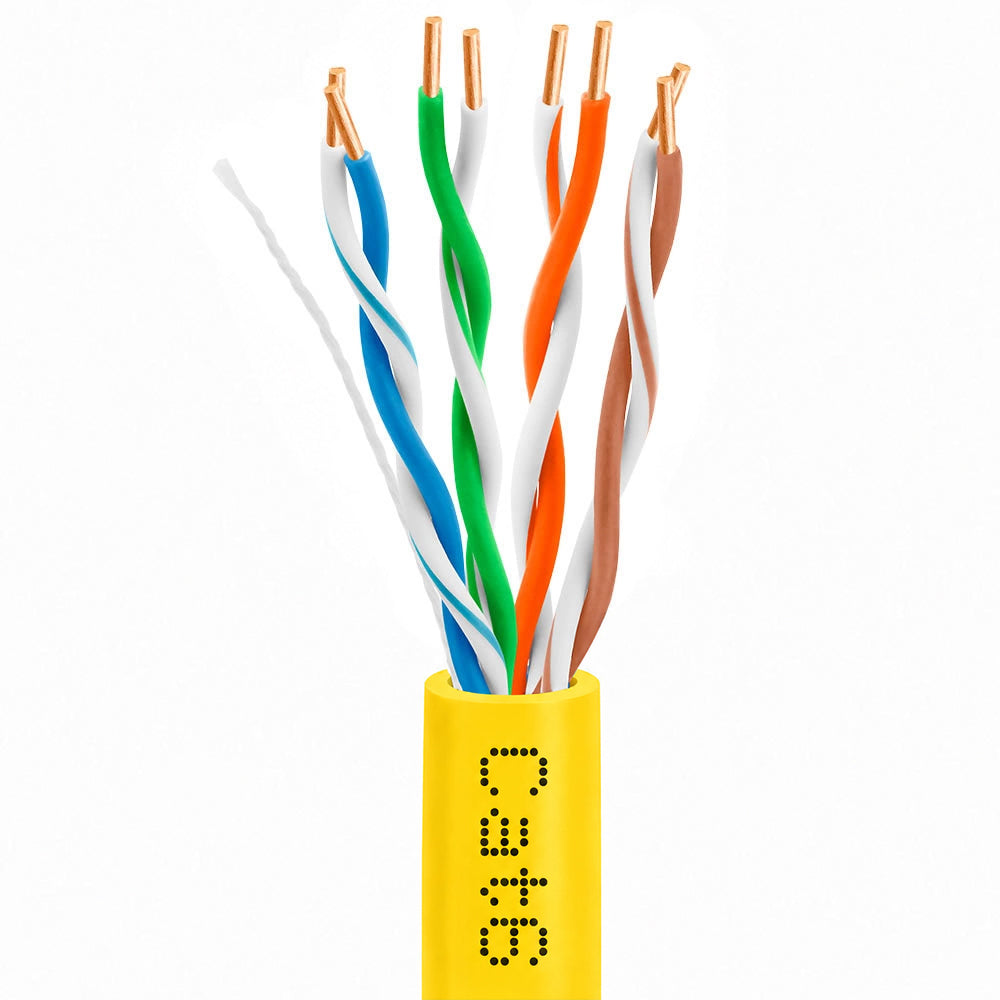

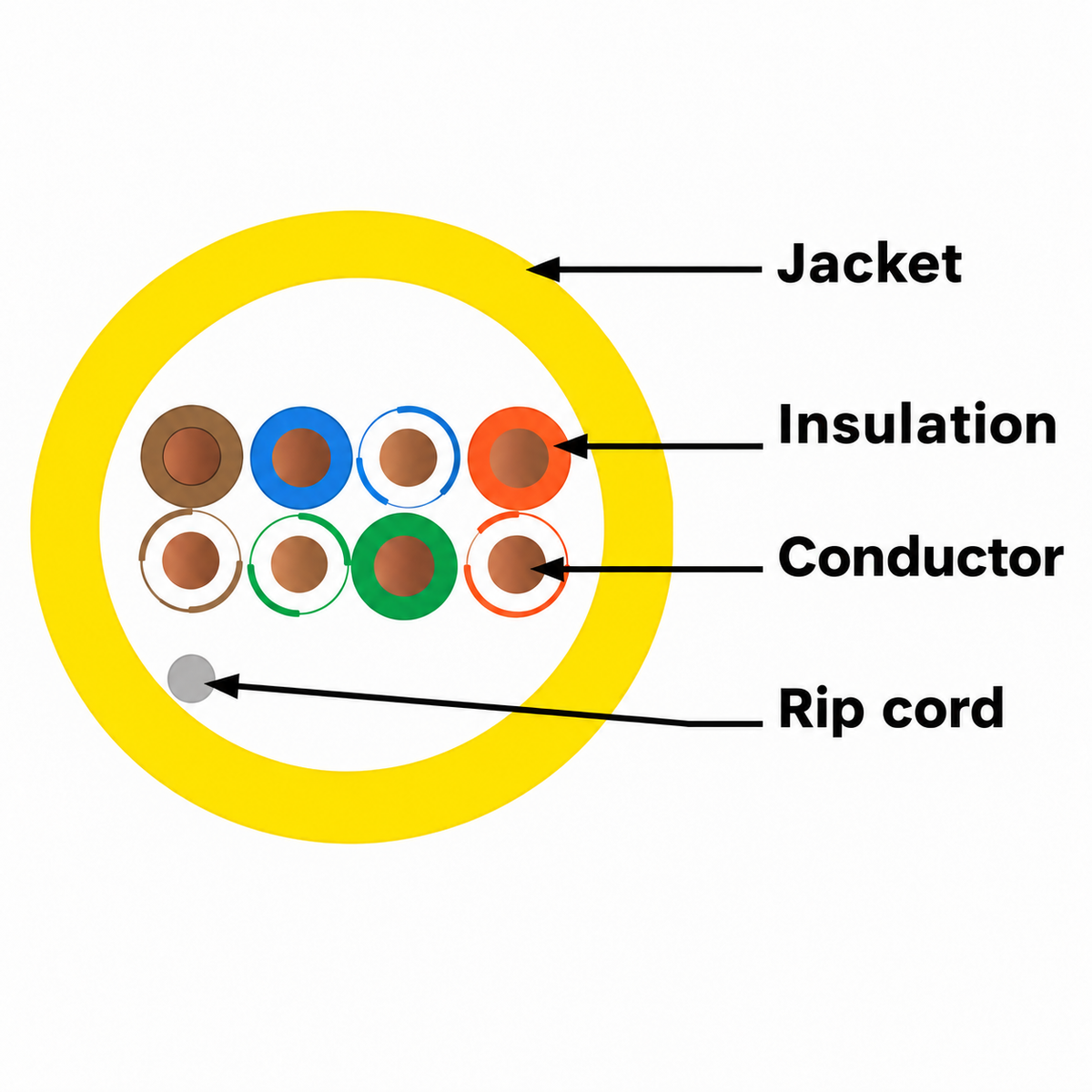

• Conductor: Solid Bare Copper · AWG: 23 · Pairs: 4 U/UTP · No Spline
• Insulation: FEP · Jacket: FR-PVC CMP/FT6 · Ripcord: Yes
• OD: 0.205 in. · Weight: 26 lbs · NVP: 70%
• Performance: 550MHz · Gigabit to 328ft
• Packaging: 1000ft Reelex II
• Colors: Blue, Black, Grey, Green, Red, Orange, Purple, White, Yellow · Length: 1000ft
