Cat6 Ethernet Cable CMR Riser 23AWG Solid Bare Copper No Spline UTP 550MHz 1000ft
-
23AWG Solid Bare Copper · 4 Unshielded Pairs
-
No Spline · OD 0.205 in. · Weight 26 lbs
-
HDPE Insulation · Flame Retardant PVC Jacket
-
CMR/FT4 Rated · C(ETL) Listed · TIA-568-C.2
-
550MHz · Gigabit to 328ft · NVP 67% · Ripcord
SAVE MORE
on Bulk Orders
The more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 3–9 units | $197.87 / unit | 3% |
| 10–19 units | $193.79 / unit | 5% |
| 20+ units | $189.71 / unit | 7% |
Price-match guarantee
FREE shipping
Lifetime warranty
-
𝐓𝐇𝐈𝐍𝐍𝐄𝐑 𝐄𝐀𝐒𝐈𝐄𝐑 𝐓𝐎 𝐏𝐔𝐋𝐋 No spline means OD of 0.205 in. vs 0.244 in. on standard Cat6 CMR — fits tighter conduit, bends more naturally, and runs more cables per pathway.
-
𝐅𝐀𝐒𝐓𝐄𝐑 𝐓𝐎 𝐓𝐄𝐑𝐌𝐈𝐍𝐀𝐓𝐄 Without a central spline, jacket removal and pair separation go faster at every termination — significant time savings on large riser installations.
-
𝐂𝐌𝐑 𝐑𝐀𝐓𝐄𝐃 𝐅𝐎𝐑 𝐄𝐕𝐄𝐑𝐘 𝐖𝐀𝐋𝐋 CMR/FT4-rated jacket meets fire code for permanent in-wall and riser installations — one cable for every non-plenum run in the building.
-
𝐒𝐎𝐋𝐈𝐃 𝐁𝐀𝐑𝐄 𝐂𝐎𝐏𝐏𝐄𝐑 𝟐𝟑𝐀𝐖𝐆 Solid bare copper conductors deliver maximum conductivity and long-term signal reliability compared with CCA — across every riser run, every time.
-
𝐄𝐀𝐒𝐘 𝐏𝐔𝐋𝐋 𝐁𝐎𝐗 𝐈𝐍𝐂𝐋𝐔𝐃𝐄𝐃 1000ft Reelex II easy pull box with rip cord and sequential footage markings for tangle-free payout and clean terminations on every run.
Description
Description
Cat6 CMR-rated riser ethernet cable designed without a spline separator for installations where flexibility, slim profile, and fast termination matter. Without the central spline, the cable is thinner (OD 0.205 in. vs 0.244 in. on spline Cat6 CMR), bends more naturally through tight conduit, and strips faster at every termination point. Supports Gigabit Ethernet at up to 328 feet with 550MHz bandwidth and PoE/PoE+ (IEEE 802.3af/at). CMR/FT4 rated — approved for in-wall and riser installations.
HDPE insulation provides corrosion and chemical resistance. FR-PVC jacket, rip cord. Weight: 26 lbs per 1000ft. NVP: 67%.
Standards: C(ETL) Listed FT4 CMR · C(ETL)US Verified ANSI/TIA-568-C.2 · RoHS Compliant.

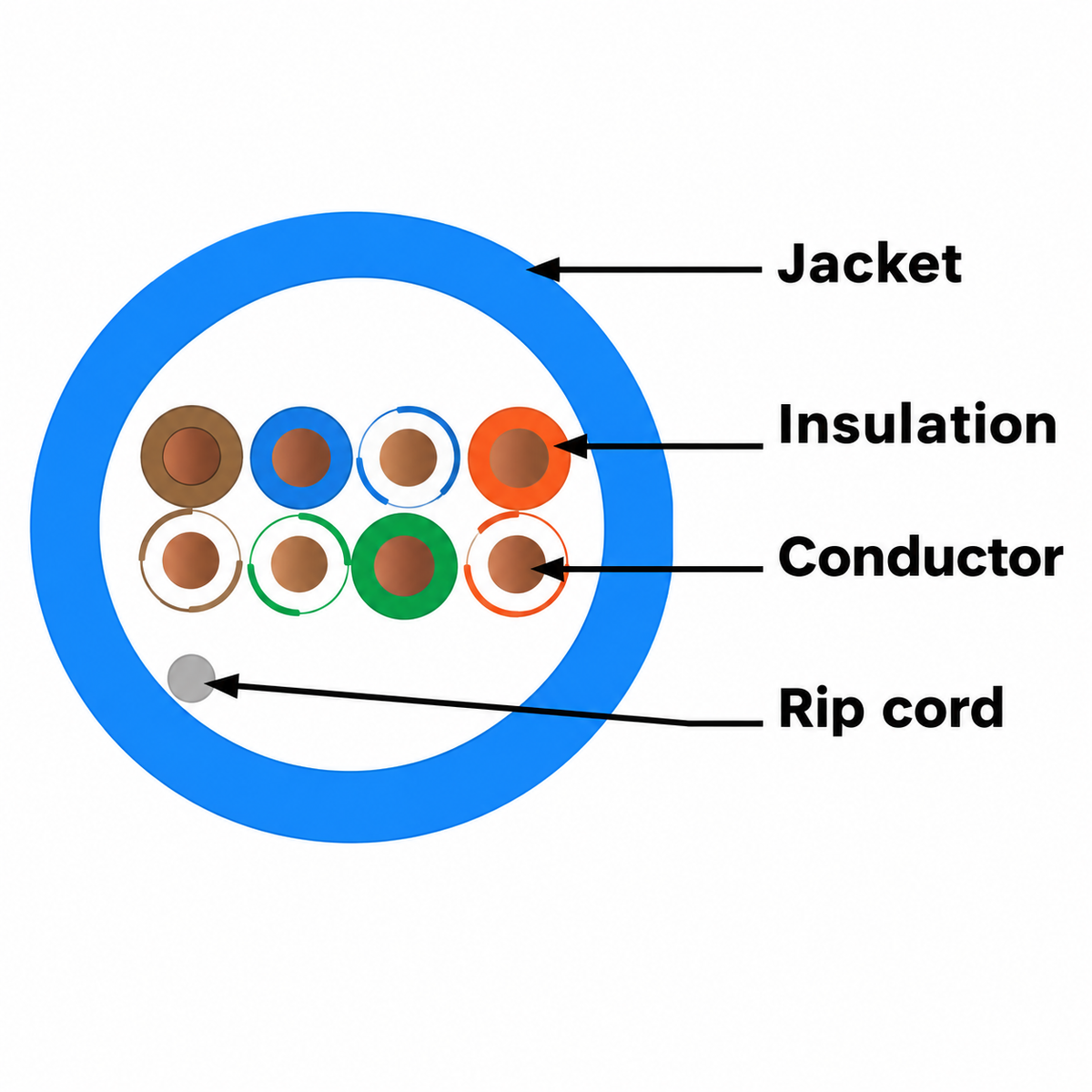

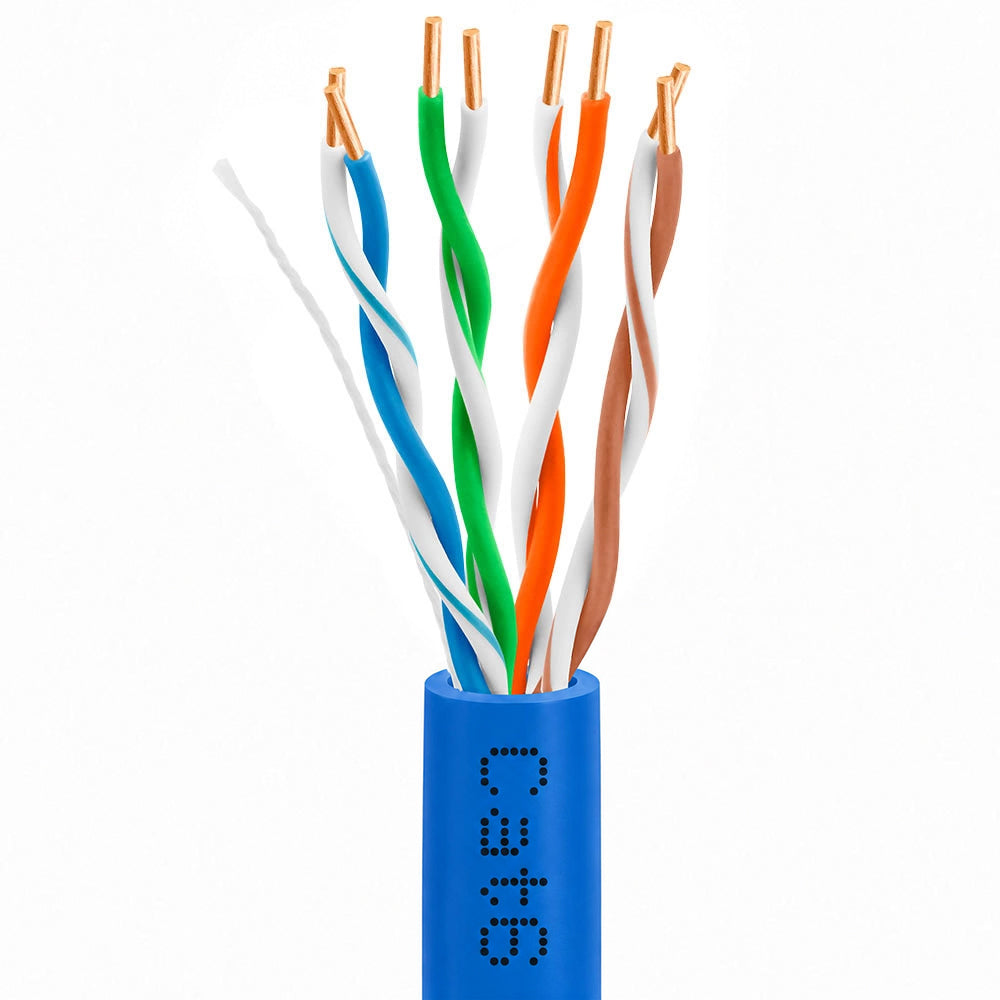

• Conductor: Solid Bare Copper · AWG: 23 · Pairs: 4 U/UTP · No Spline
• Insulation: HDPE · Jacket: FR-PVC CMR/FT4 · Ripcord: Yes
• OD: 0.205 in. · Weight: 26 lbs · NVP: 67%
• Performance: 550MHz · Gigabit to 328ft · PoE/PoE+

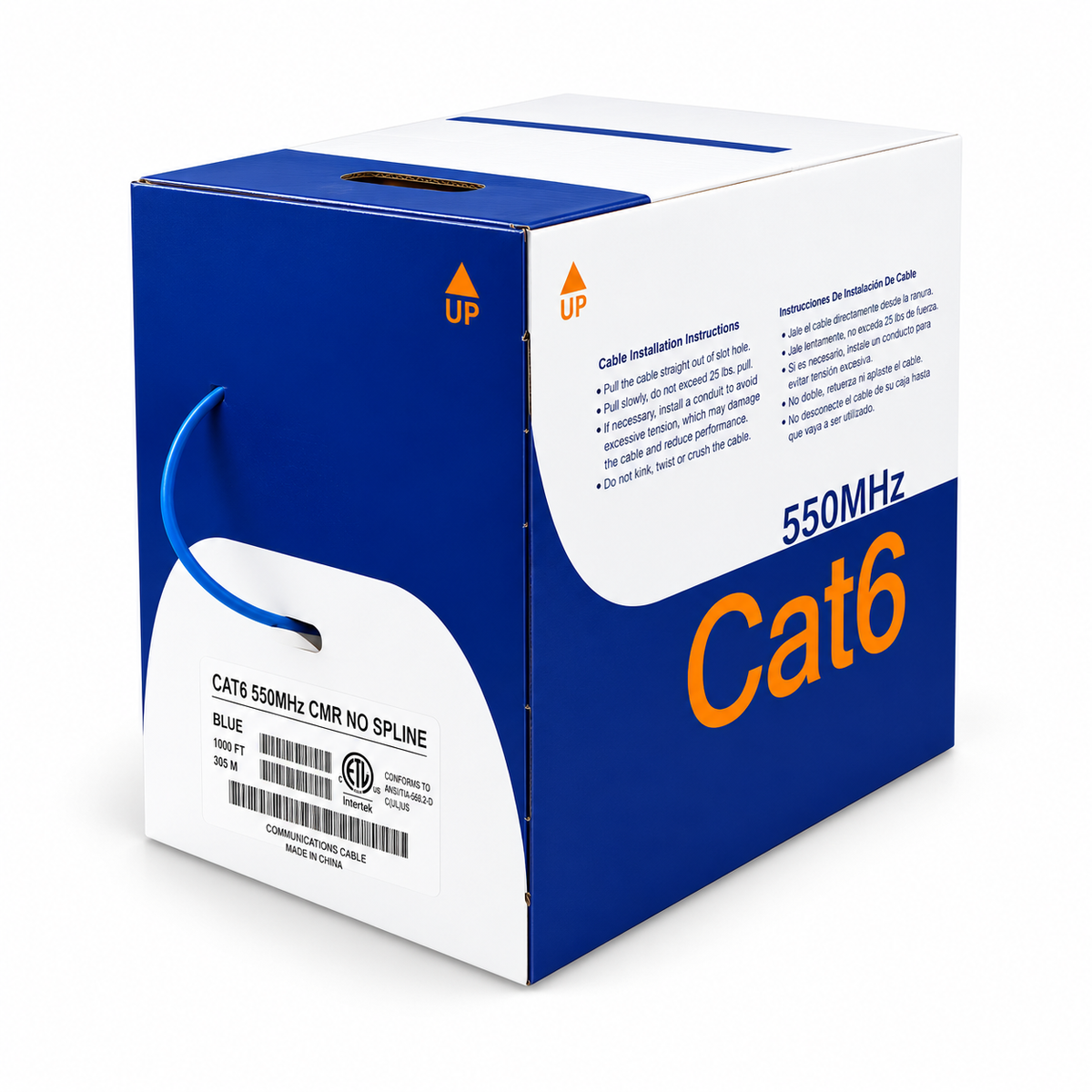

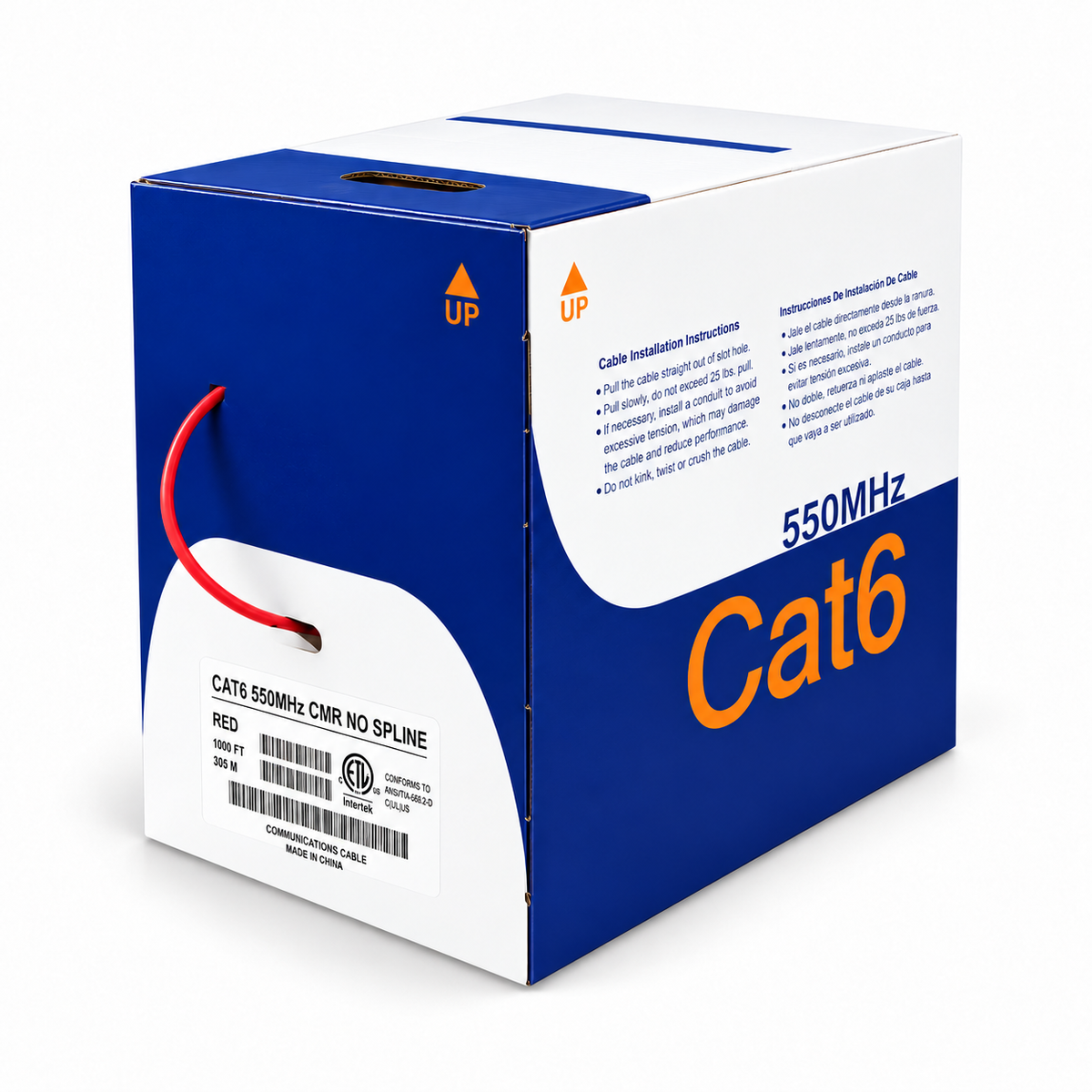

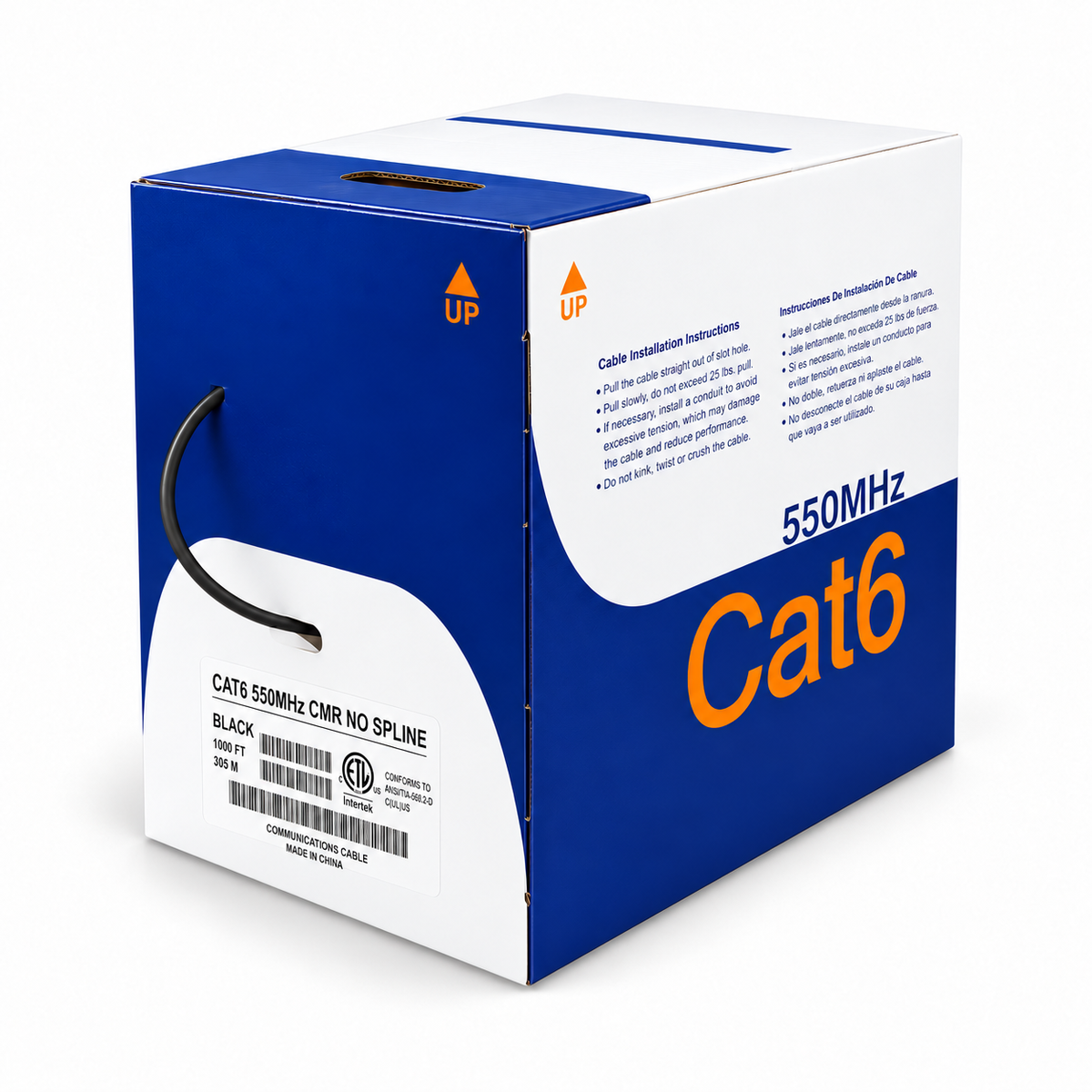

• Packaging: 1000ft Reelex II
• Colors: Blue, Black, Grey, Green, Red, Orange, Purple, White, Yellow · Length: 1000ft
