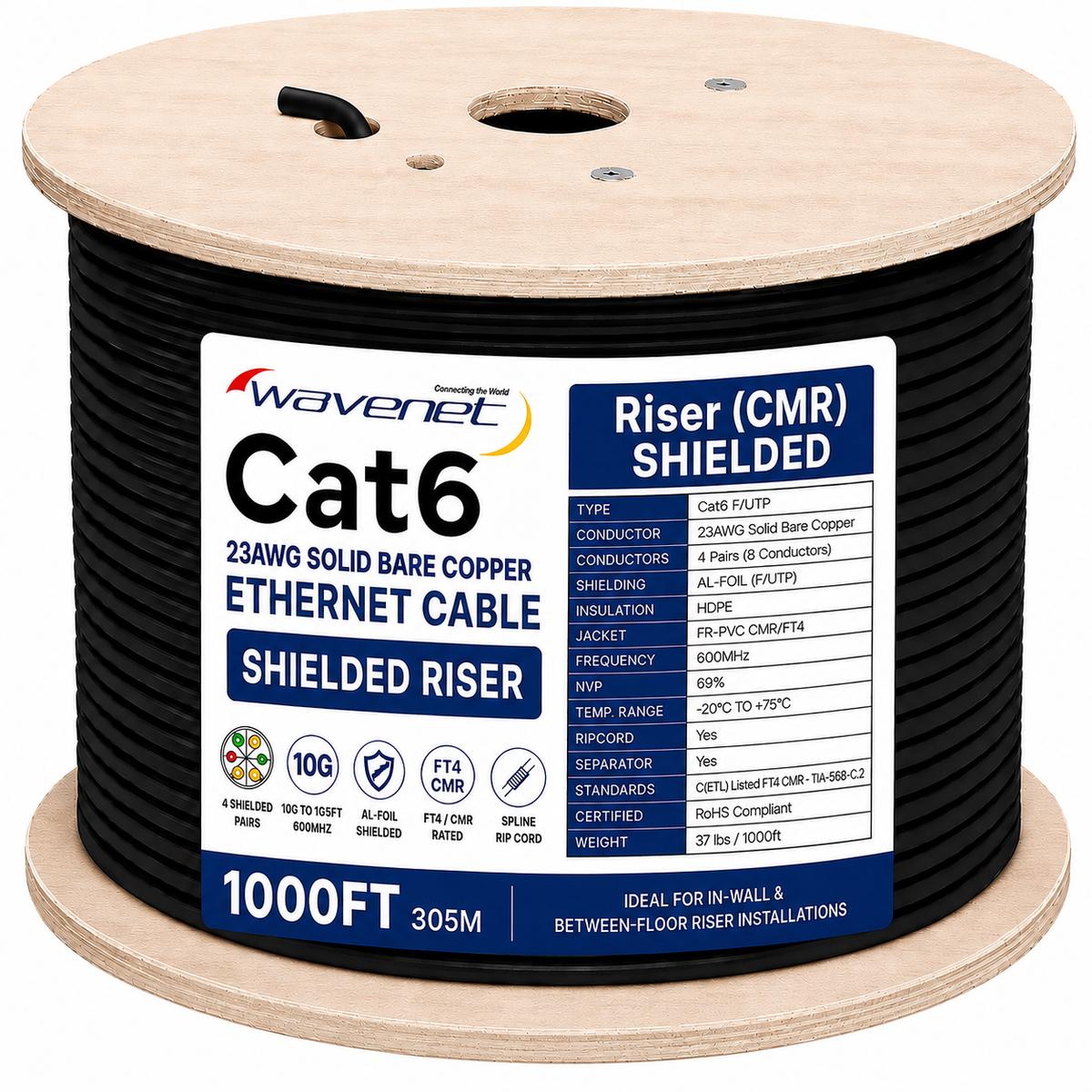

Cat6 Shielded Riser Ethernet Cable 1000ft 23AWG Solid Bare Copper 600MHz CMR ETL Listed
-
23AWG Solid Bare Copper · 4 Shielded Twisted Pairs
-
HDPE Insulation · Flame Retardant PVC Jacket
-
AL-Foil F/UTP Shield · Blocks EMI and Crosstalk
-
CMR/FT4 Rated · C(ETL) Listed · ANSI/TIA-568-C.2
-
600MHz · 10Gb to 165ft · Separator · Ripcord
SAVE MORE
on Bulk Orders
The more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 3–9 units | $281.29 / unit | 3% |
| 10–19 units | $275.49 / unit | 5% |
| 20+ units | $269.69 / unit | 7% |
Price-match guarantee
FREE shipping
Lifetime warranty
Cat6 Shielded Riser Ethernet Cable 1000ft 23AWG Solid Bare Copper 600MHz CMR ETL Listed
-
𝐂𝐌𝐑 𝐑𝐈𝐒𝐄𝐑 𝐑𝐀𝐓𝐄𝐃 𝐅𝐓𝟒 CMR/FT4-rated jacket is approved for in-wall and vertical between-floor installations in offices, residential buildings, and commercial spaces.
-
𝐀𝐋-𝐅𝐎𝐈𝐋 𝐄𝐌𝐈 𝐒𝐇𝐈𝐄𝐋𝐃 𝐅/𝐔𝐓𝐏 Overall aluminum foil shield blocks EMI and reduces crosstalk from electrical panels, HVAC, and industrial equipment in demanding environments.
-
𝐒𝐎𝐋𝐈𝐃 𝐁𝐀𝐑𝐄 𝐂𝐎𝐏𝐏𝐄𝐑 𝟐𝟑𝐀𝐖𝐆 Solid bare copper conductors deliver maximum conductivity and long-term signal reliability across every permanent riser and in-wall installation.
-
𝐇𝐃𝐏𝐄 𝐈𝐍𝐒𝐔𝐋𝐀𝐓𝐈𝐎𝐍 High-density polyethylene insulation provides corrosion and chemical resistance with solid-core performance over long-distance runs.
-
𝐏𝐑𝐎 𝐈𝐍𝐒𝐓𝐀𝐋𝐋𝐀𝐓𝐈𝐎𝐍 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒 1000ft reel with spline separator, ripcord, and sequential footage markings for organized payout, clean jacket removal, and accurate cuts on the job.
Description
Description
This Cat6 CMR-rated shielded riser Ethernet cable is built for permanent in-wall and vertical between-floor installations in residential and commercial buildings. 23AWG solid bare copper conductors deliver strong signal, and the overall F/UTP aluminum-foil shield blocks EMI and reduces crosstalk from electrical panels, HVAC, and industrial equipment. HDPE insulation adds corrosion and chemical resistance.
Note: shielded cable requires shielded RJ45 connectors and proper grounding for full EMI protection.
Standards: C(ETL) Listed FT4 CMR · C(ETL)US Verified ANSI/TIA-568-C.2 · RoHS Compliant
Technical Specifications:

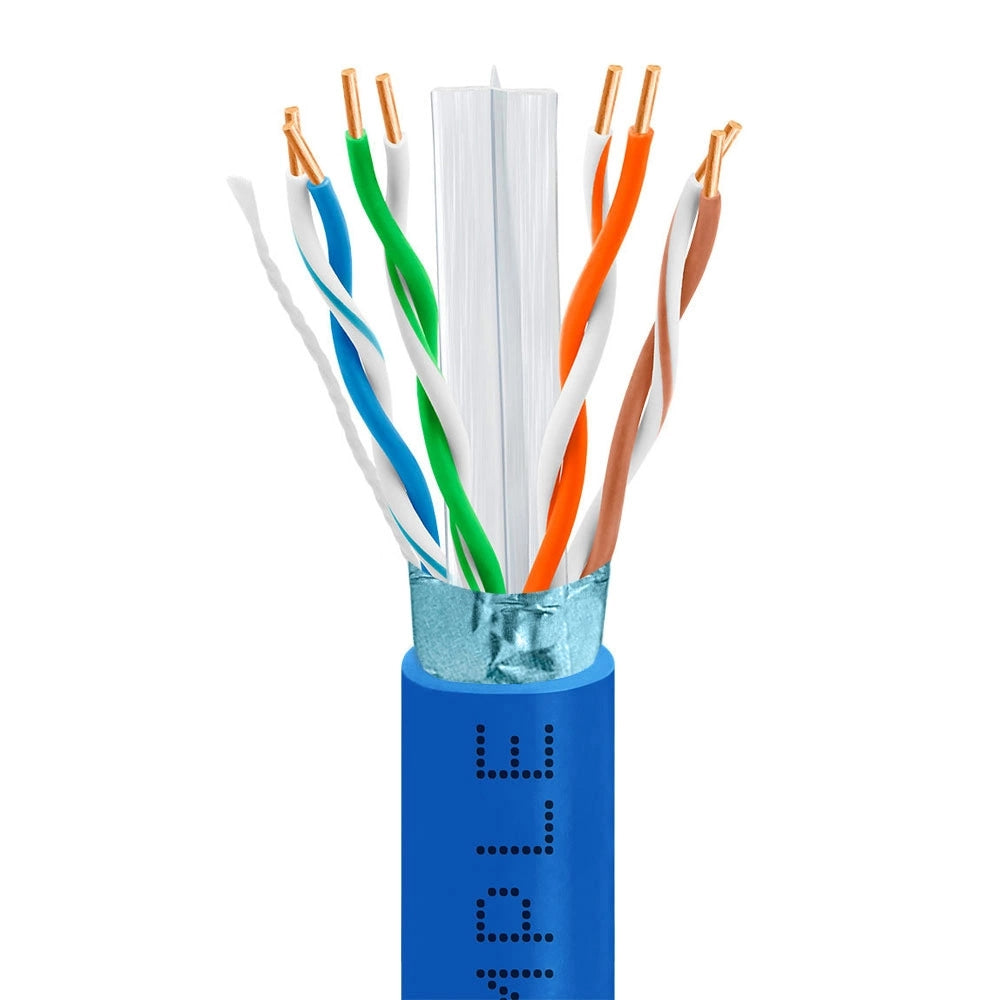

• Conductor: Solid Bare Copper · AWG: 23 · Pairs: 4 F/UTP (AL-Foil Shielded)
• Insulation: HDPE · Jacket: FR-PVC CMR/FT4
• Separator: Yes · Ripcord: Yes · OD: 0.299 in. · Weight: 37 lbs · NVP: 69%
• Performance: 600MHz · Gigabit to 328ft · 10Gb to 165ft
• Packaging: 1000ft Reel

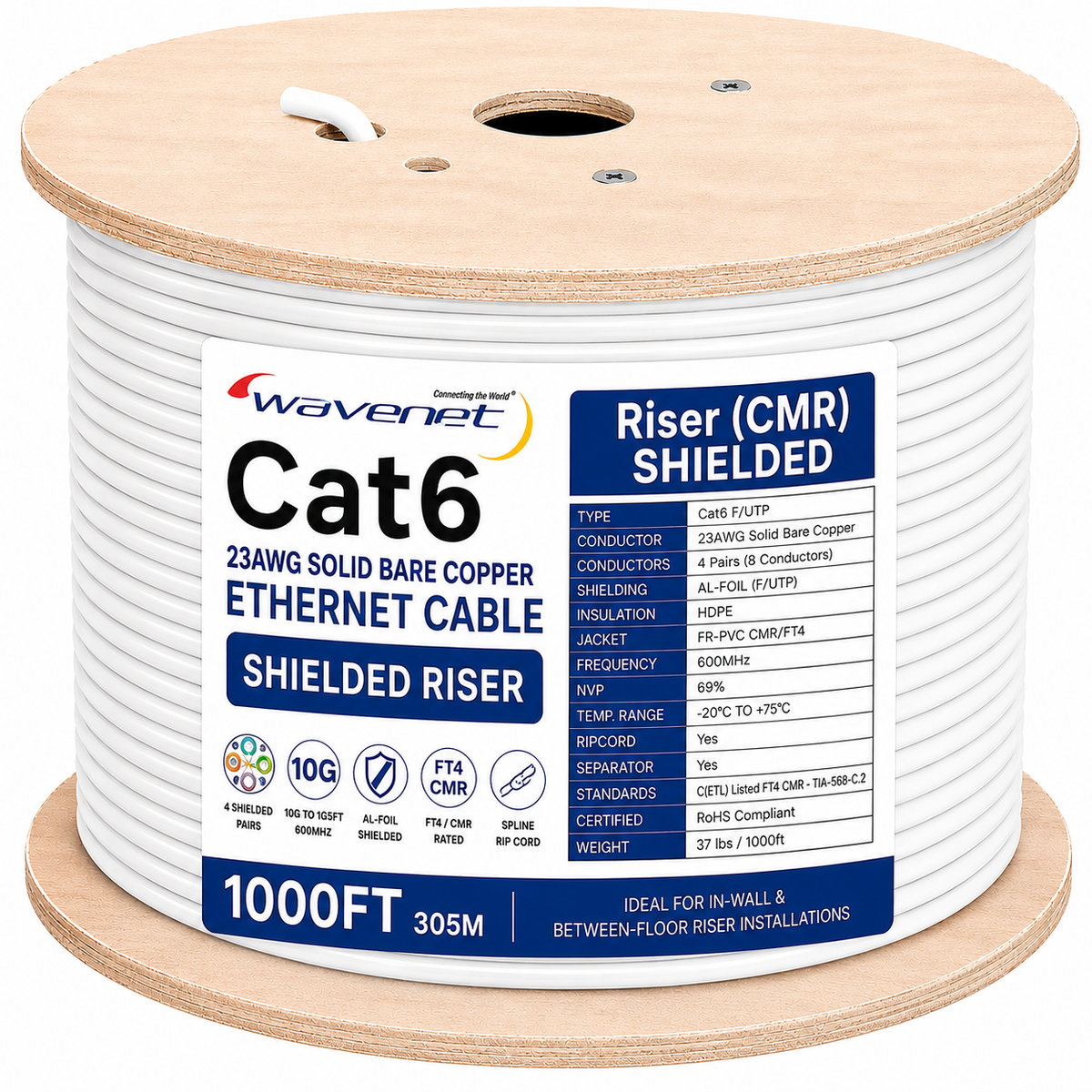

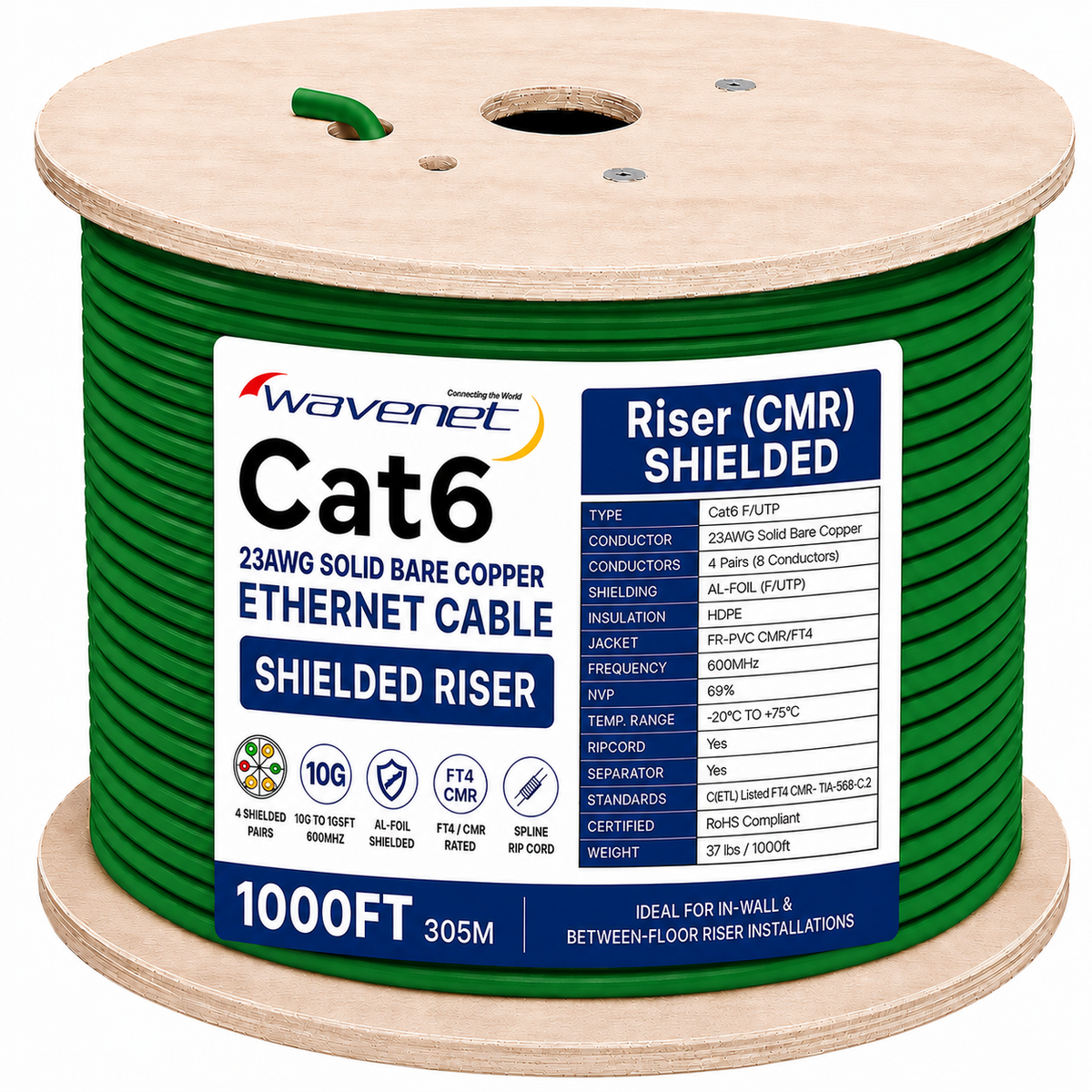

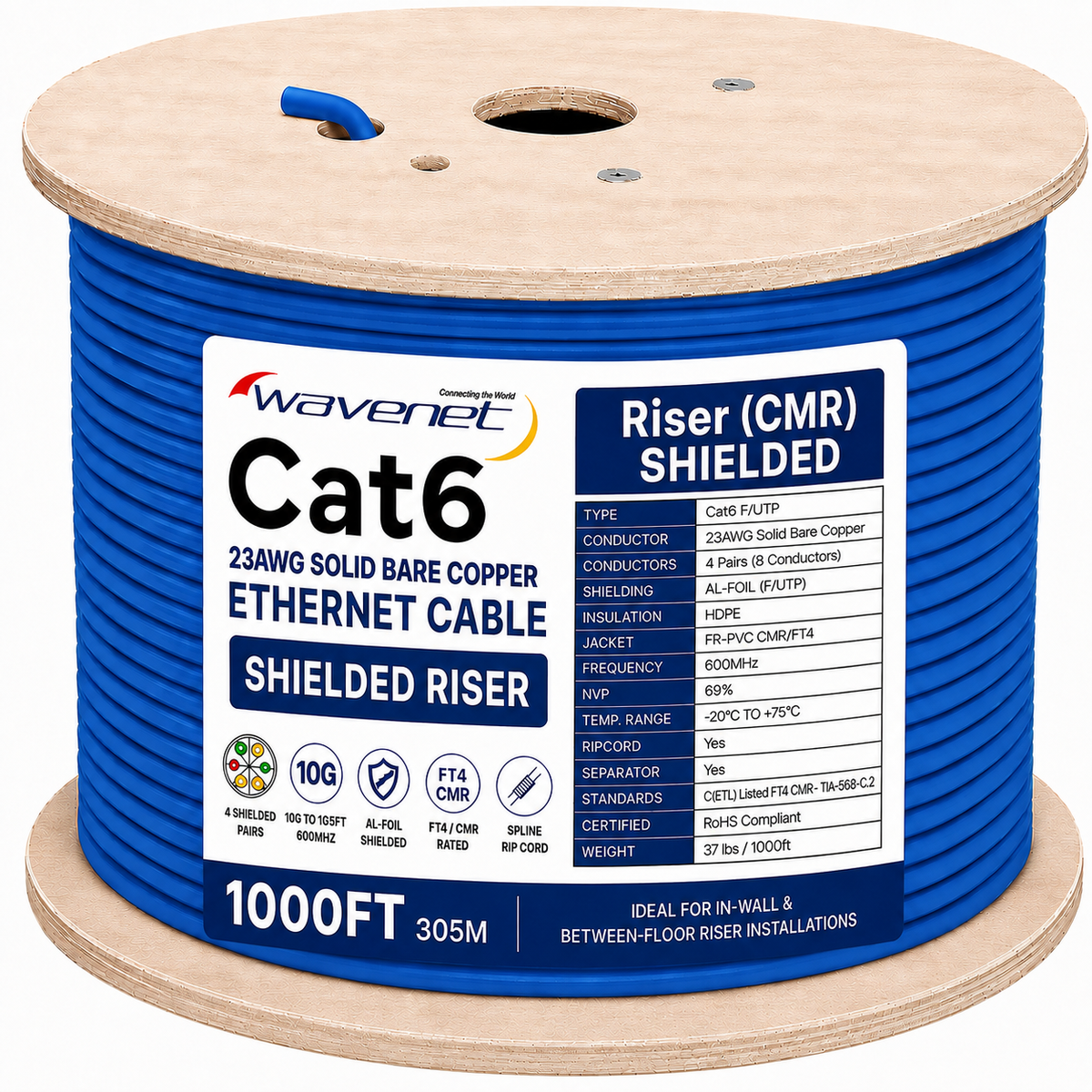

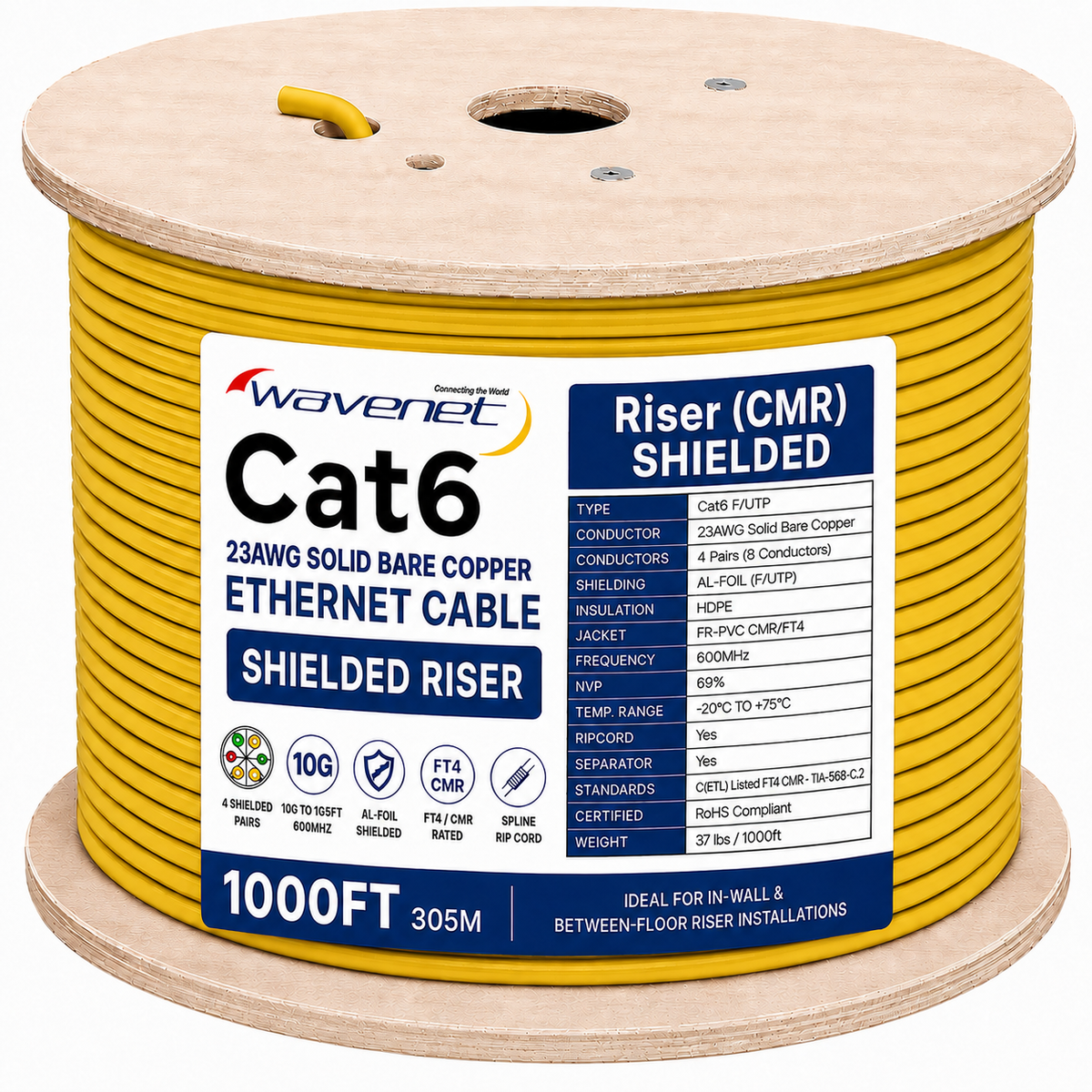

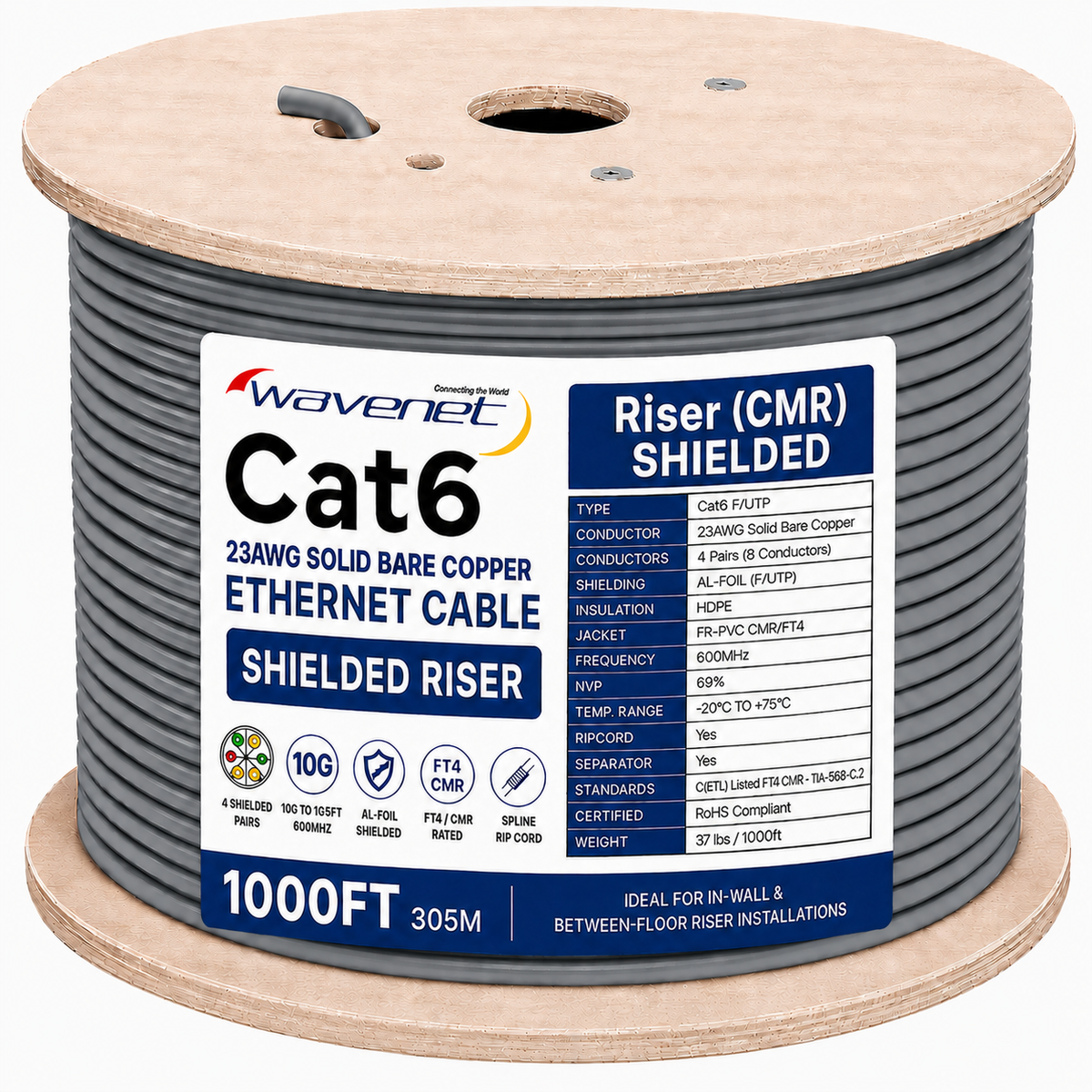

• Colors: Blue, Black, Gray, Green, Red, White, Yellow
Typical Applications:
• Riser and in-wall structured cabling in offices, schools, and hospitals
• EMI-sensitive runs near HVAC, electrical panels, and industrial equipment
• Shielded network backbone in commercial and multi-tenant buildings
• Between-floor riser runs in residential and commercial buildings
• Security and access-control cabling in electrically noisy spaces
