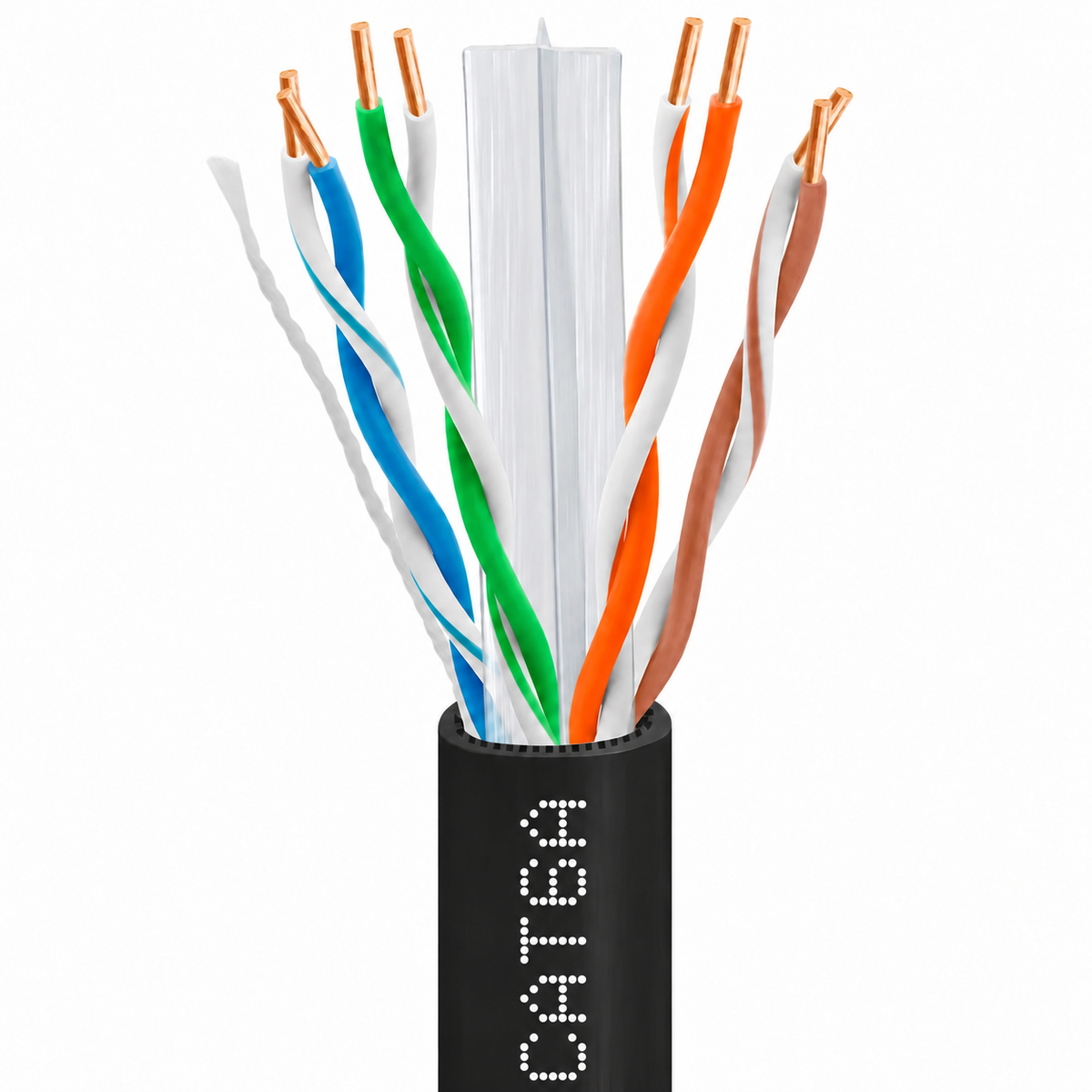

Cat6A Ethernet Cable Outdoor 23AWG Solid Bare Copper UTP CMX UV Rated 1000ft
-
23AWG Solid Bare Copper · 4 Unshielded Pairs
-
UV PVC CMX Jacket · HDPE Insulation · 42 lbs
-
C(ETL) Listed CMX · C(ETL)US Verified · RoHS
-
750MHz · 10G Base-T Full 100m · NVP 69%
-
Spline Separator · Rip Cord · OD 0.270 in.
SAVE MORE
on Bulk Orders
The more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 3–9 units | $315.24 / unit | 3% |
| 10–19 units | $308.74 / unit | 5% |
| 20+ units | $302.24 / unit | 7% |
Price-match guarantee
FREE shipping
Lifetime warranty
-
𝐂𝐀𝐓𝟔𝐀 𝟏𝟎𝐆 𝐅𝐔𝐋𝐋 𝐃𝐈𝐒𝐓𝐀𝐍𝐂𝐄 Unlike Cat6 outdoor, Cat6A delivers full 10 Gigabit at 100 meters and 750MHz — not just over short runs — for future-proof outdoor infrastructure.
-
𝐔𝐕 𝐏𝐕𝐂 𝐉𝐀𝐂𝐊𝐄𝐓 𝐎𝐔𝐓𝐃𝐎𝐎𝐑𝐒 CMX-rated UV PVC jacket resists sunlight and weathering on above-ground exterior runs, aerial cable paths, and outdoor wall-mounted installations.
-
𝐒𝐎𝐋𝐈𝐃 𝐁𝐀𝐑𝐄 𝐂𝐎𝐏𝐏𝐄𝐑 𝟐𝟑𝐀𝐖𝐆 Solid bare copper conductors deliver superior conductivity and reliable 10G signal quality across every permanent outdoor installation.
-

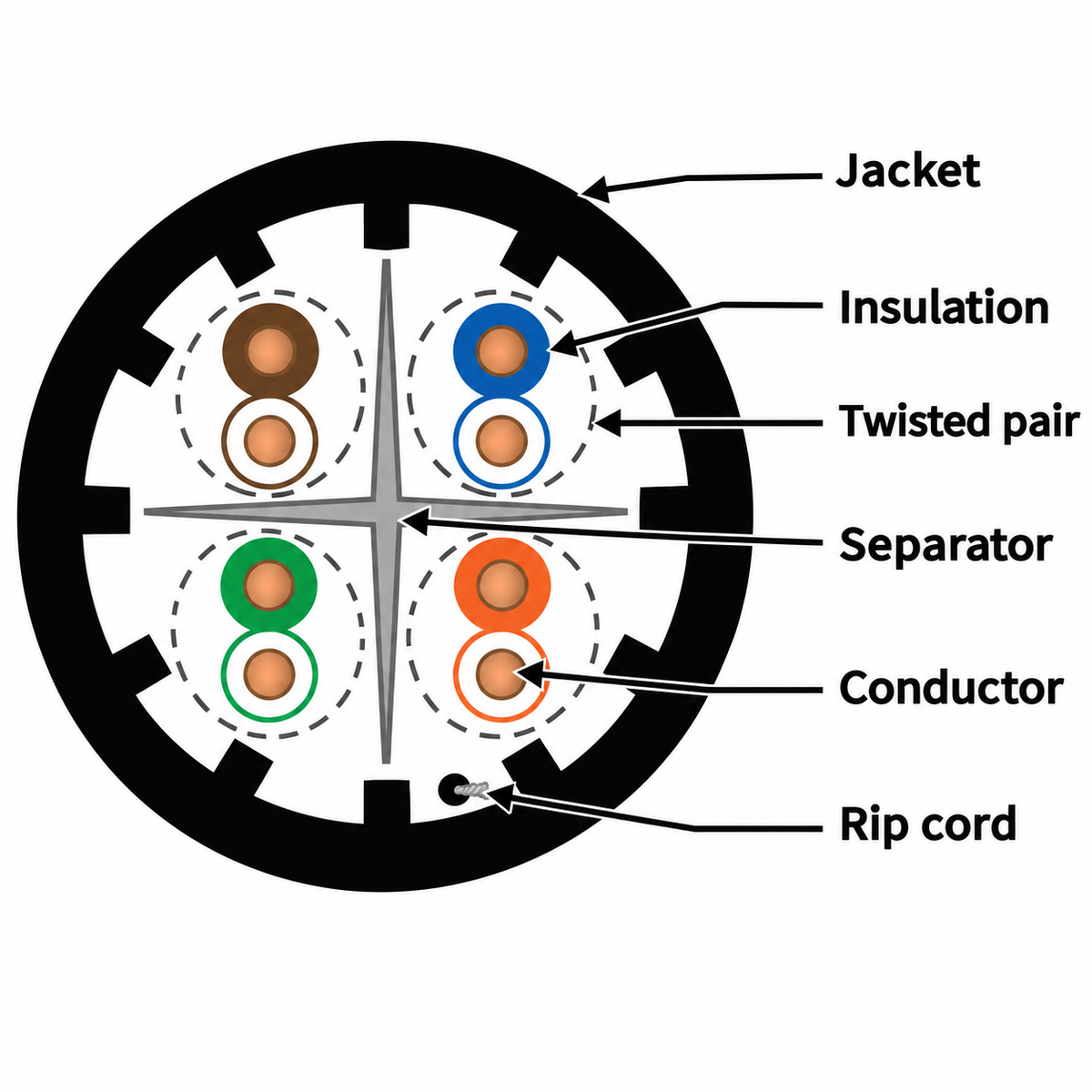

𝐒𝐏𝐋𝐈𝐍𝐄 𝐂𝐔𝐓𝐒 𝐂𝐑𝐎𝐒𝐒𝐓𝐀𝐋𝐊 Built-in spline separator reduces NEXT and Alien Crosstalk across long outdoor runs and in dense cable pathways where signal integrity matters most.
-

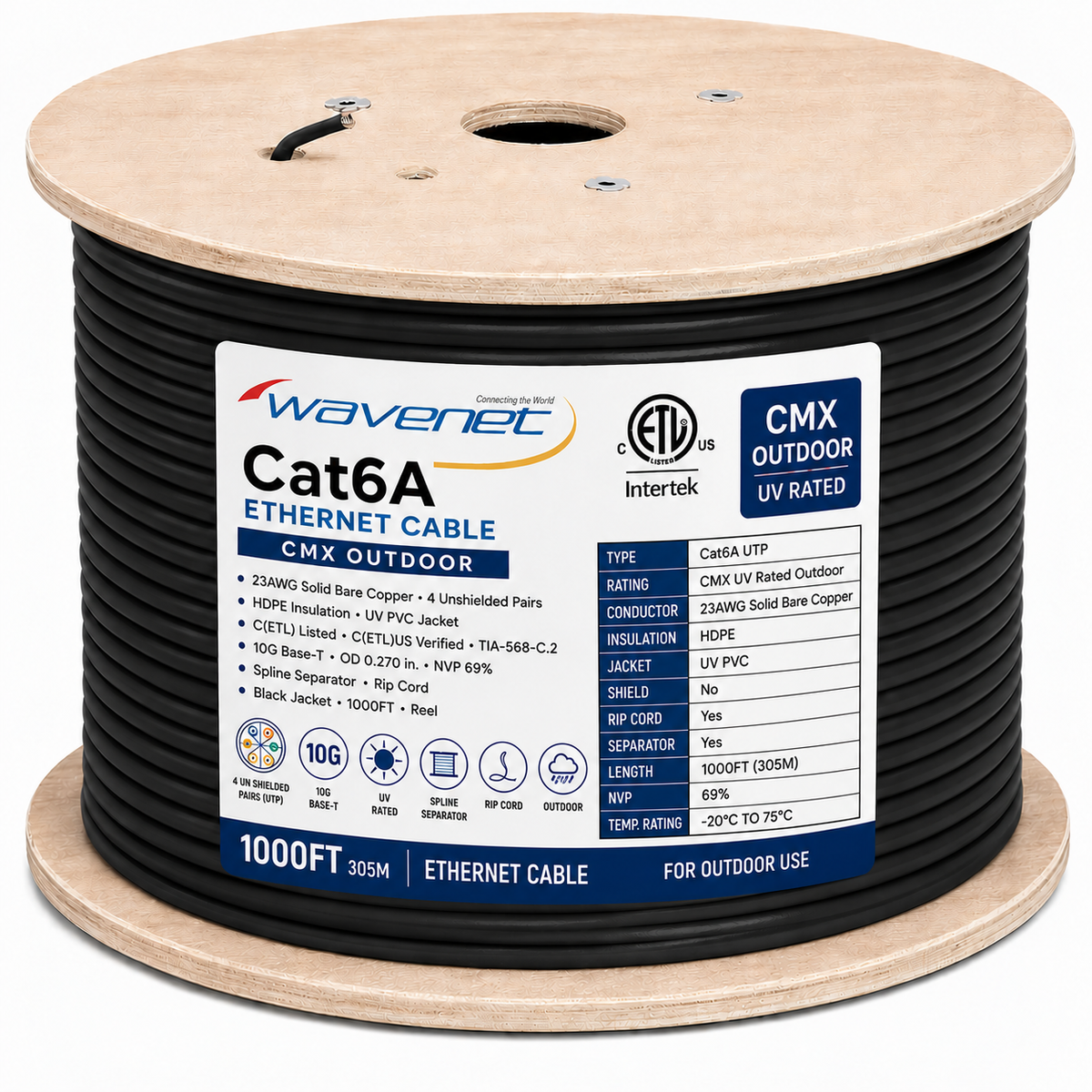

𝐏𝐑𝐎 𝐈𝐍𝐒𝐓𝐀𝐋𝐋𝐀𝐓𝐈𝐎𝐍 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒 1000ft reel with rip cord and sequential footage markings for fast jacket removal, accurate pulls, and reliable performance on every outdoor run.
Description
Description
Cat6A CMX-rated outdoor ethernet cable for above-ground exterior runs, aerial installations, and exterior wall-mounted pathways in temperatures from -20°C to +75°C. CMX UV-rated PVC jacket resists sunlight, UV degradation, and outdoor weathering — the correct choice for cable runs exposed to sunlight and elements but not buried in the ground. Supports full 10 Gigabit Ethernet at 100 meters with 750MHz bandwidth. Backward compatible with Cat6 and Cat5e.
23AWG solid bare copper conductors. HDPE insulation. Spline separator reduces NEXT and Alien Crosstalk (AXT). Rip cord for clean jacket removal. Sequential footage markings. OD: 0.270 in. Weight: 42 lbs per 1000ft. NVP: 69%.
Note: CMX is rated for outdoor UV and above-ground use. For direct burial in soil, use a gel-filled or waterblock cable instead.
Standards: C(ETL) Listed CMX · C(ETL)US Verified ANSI/TIA-568-C.2 · RoHS Compliant.
• Conductor: Solid Bare Copper · AWG: 23 · Pairs: 4 U/UTP
• Insulation: HDPE · Jacket: UV PVC CMX · Separator: Yes · Ripcord: Yes
• OD: 0.270 in. · Weight: 42 lbs · NVP: 69%
• Performance: 750MHz · 10G Base-T full 100m · PoE/PoE+
• Color: Black · Length: 1000ft · Packaging: 1000ft Reel
