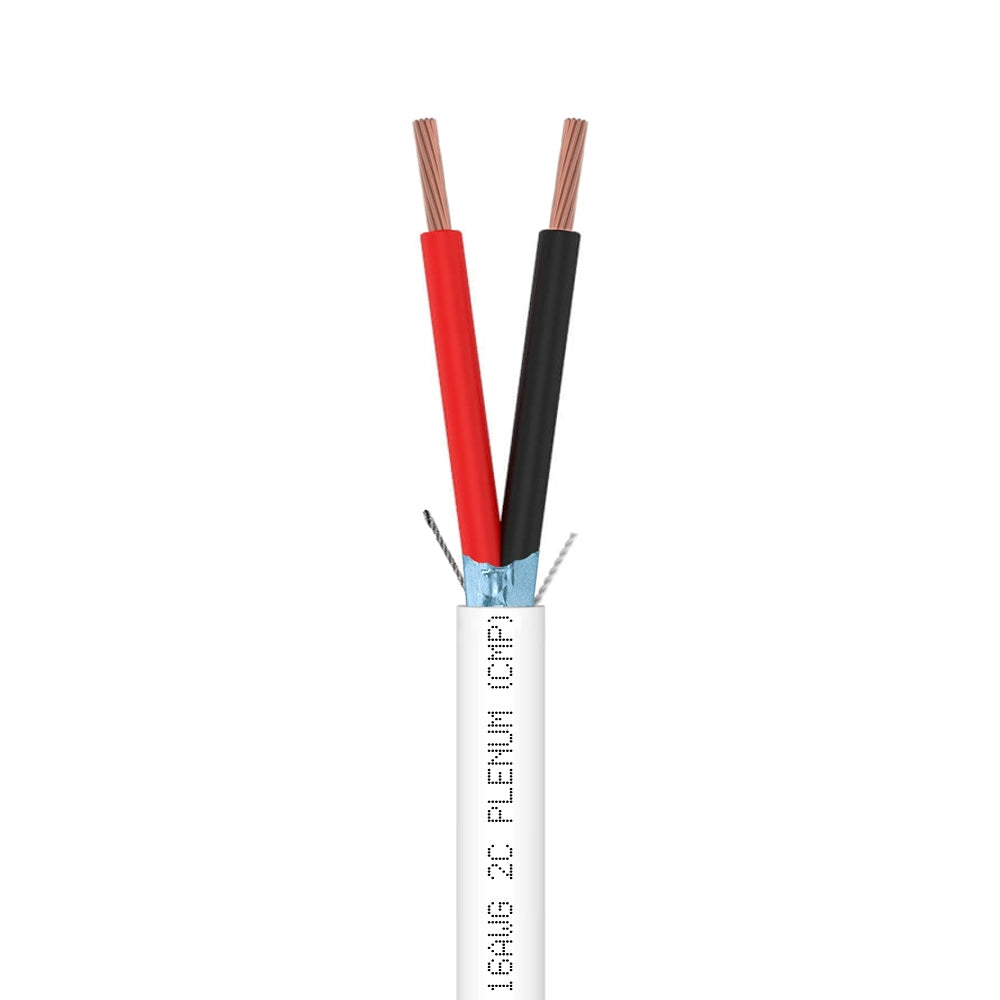

Plenum Control Cable Shielded 16AWG 2 Conductor CMP Stranded Copper 1000ft White
-
Stranded Bare Copper · 16AWG · 2 Conductors
-
AL-Foil + PE Tape + Drain Wire Shield
-
Remguard Low Smoke FR-PVC · CMP/CL2P
-
C(UL)US Listed · UL 444 · 300V
-
OD 4.95mm · 1000ft Reelex II · White
SAVE MORE
on Bulk Orders
The more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 3–9 units | $324.90 / unit | 3% |
| 10–19 units | $318.20 / unit | 5% |
| 20+ units | $311.50 / unit | 7% |
Price-match guarantee
FREE shipping
Lifetime warranty
Plenum Control Cable Shielded 16AWG 2 Conductor CMP Stranded Copper 1000ft White
-
𝐏𝐀𝐒𝐒𝐄𝐒 𝐈𝐍𝐒𝐏𝐄𝐂𝐓𝐈𝐎𝐍 𝐄𝐕𝐄𝐑𝐘 𝐓𝐈𝐌𝐄 CMP/CL2P and C(UL)US Listing mean your above-ceiling control run meets the strictest code the first time — no rework, no failed inspection.
-
𝐒𝐓𝐎𝐏𝐒 𝐈𝐍𝐓𝐄𝐑𝐅𝐄𝐑𝐄𝐍𝐂𝐄 𝐂𝐎𝐋𝐃 AL-foil, PE tape, and a drain wire ground out EMI from HVAC motors and fluorescent ballasts — no more flaky signals near equipment rooms.
-
𝐑𝐄𝐀𝐂𝐇𝐄𝐒 𝐅𝐀𝐑𝐓𝐇𝐄𝐑 𝐓𝐇𝐀𝐍 𝟏𝟖𝐀𝐖𝐆 Lower resistance than 18AWG means less voltage drop on long runs to door locks, amplifiers, and access control gear — no mid-run booster needed.
-
𝐎𝐍𝐄 𝐂𝐀𝐁𝐋𝐄 𝐂𝐎𝐕𝐄𝐑𝐒 𝐄𝐕𝐄𝐑𝐘 𝐒𝐏𝐀𝐂𝐄 CMP is the highest fire rating in the building — this cable also satisfies riser and in-wall requirements, so one spec works everywhere.
-
𝐑𝐄𝐀𝐃𝐘 𝐅𝐎𝐑 𝐓𝐇𝐄 𝐖𝐇𝐎𝐋𝐄 𝐉𝐎𝐁 1000ft Reelex II pull box means fewer splices and reel changes across a full above-ceiling control or HVAC distribution run.
Description
Description
Run clean, interference-free control signals through the most code-critical spaces with this 16AWG shielded stranded bare copper control cable. Rated CMP and CL2P, approved for air-handling spaces above suspended ceilings and below raised floors — the highest indoor fire safety standard, covering plenum, riser, and in-wall installations in one cable.
16AWG delivers more current capacity and lower resistance than 18AWG — ideal for longer runs to powered security devices, magnetic door locks, audio amplifiers, and access control equipment where voltage drop matters. The AL-foil + PE tape + tinned copper drain wire shield blocks EMI from nearby electrical equipment, HVAC systems, and fluorescent lighting.
Standards: C(UL)US Listed · UL 444 · CL2P/CMP
Technical Specifications:
• Conductor: Stranded Bare Copper · AWG: 16 · Conductors: 2 (Black/Red)

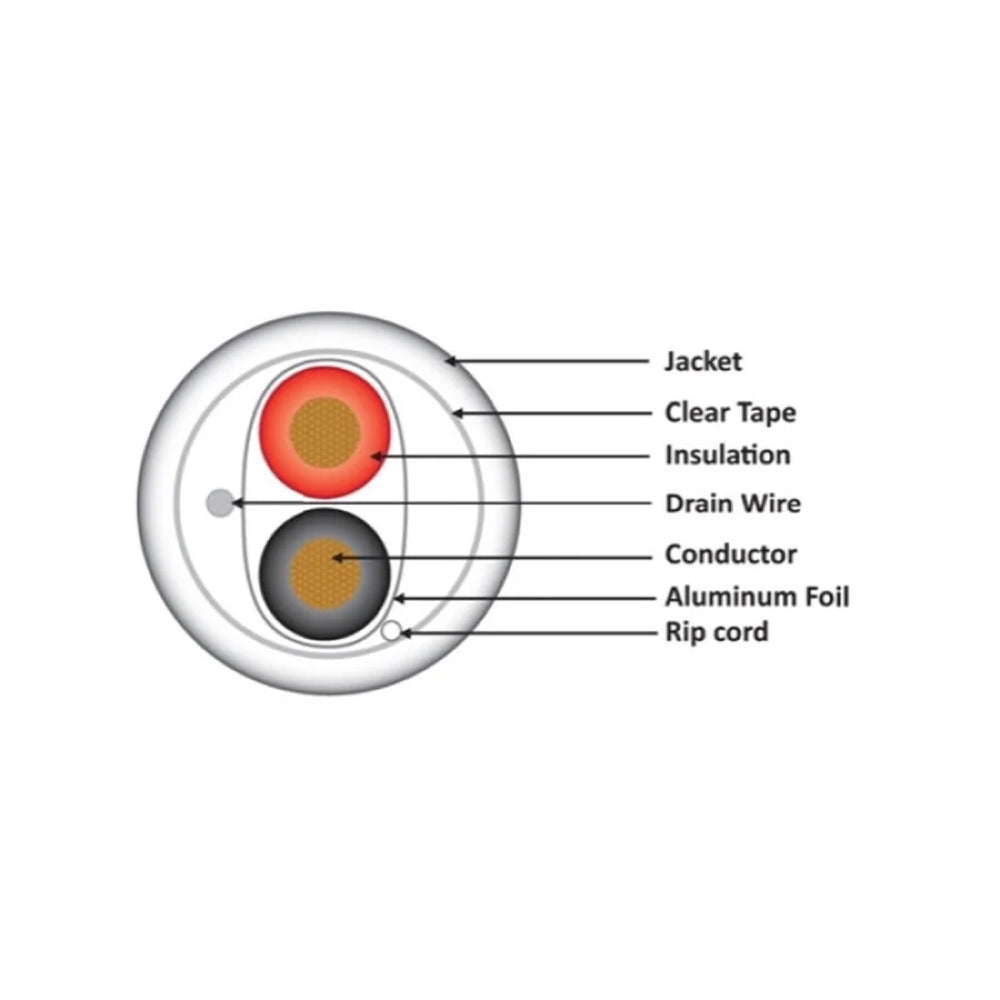

• Shield: AL-Foil + PE Tape + Tinned Copper Drain Wire
• Jacket: Remguard Low-Smoke FR-PVC, CMP/CL2P · Color: White
• OD: 4.95 mm · Voltage: 300V · Temp: -20°C to +60°C

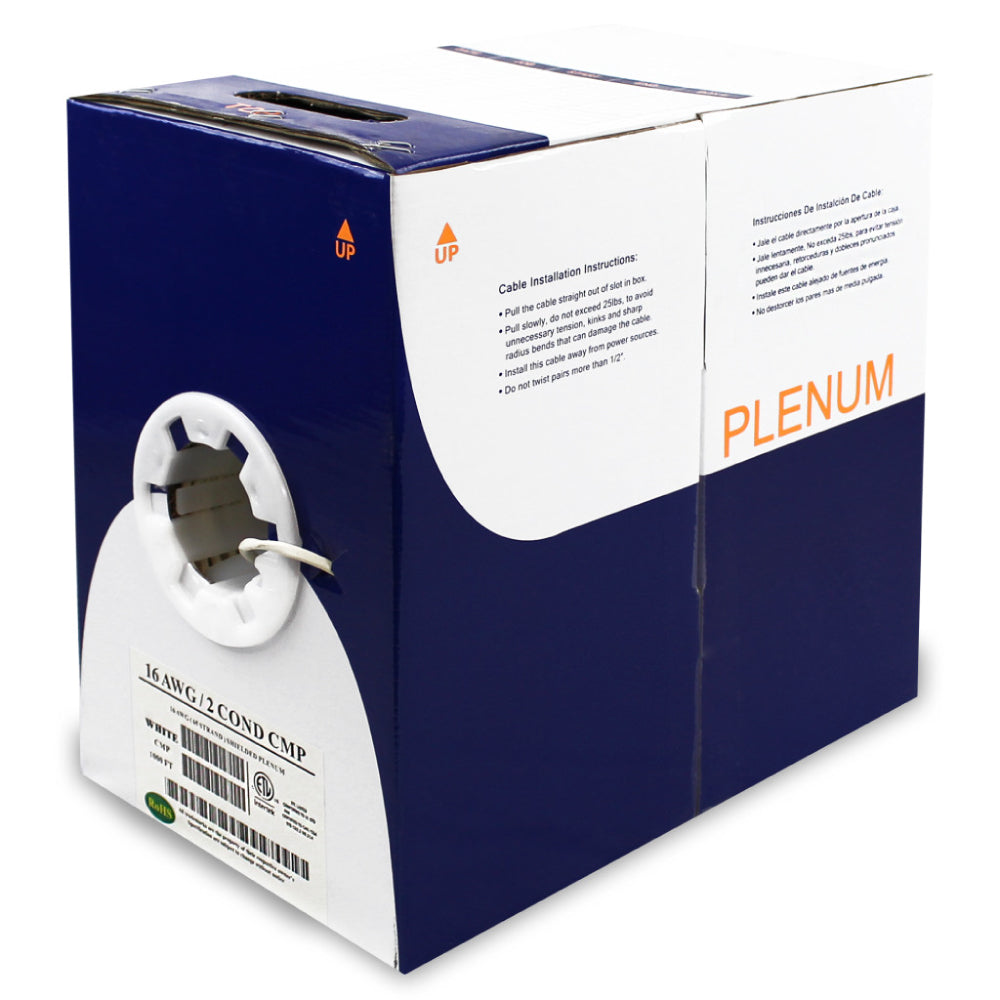

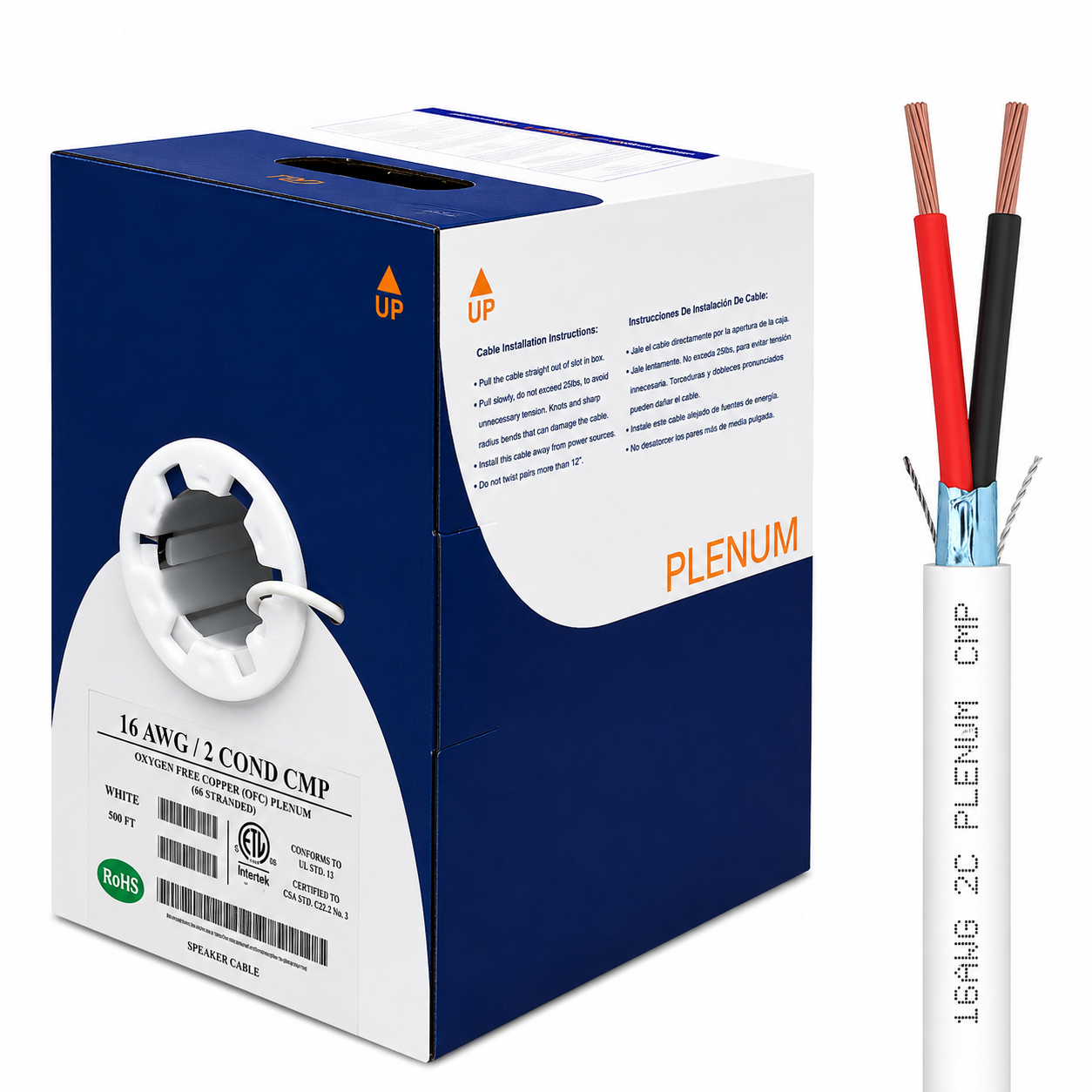

• Packaging: 1000ft Reelex II
Typical Applications:
• Security systems, audio, and background music distribution
• Access control and intercom systems
• HVAC building automation and actuator control
• Any CMP-rated power-limited control circuit
• Above-ceiling plenum runs requiring EMI shielding
