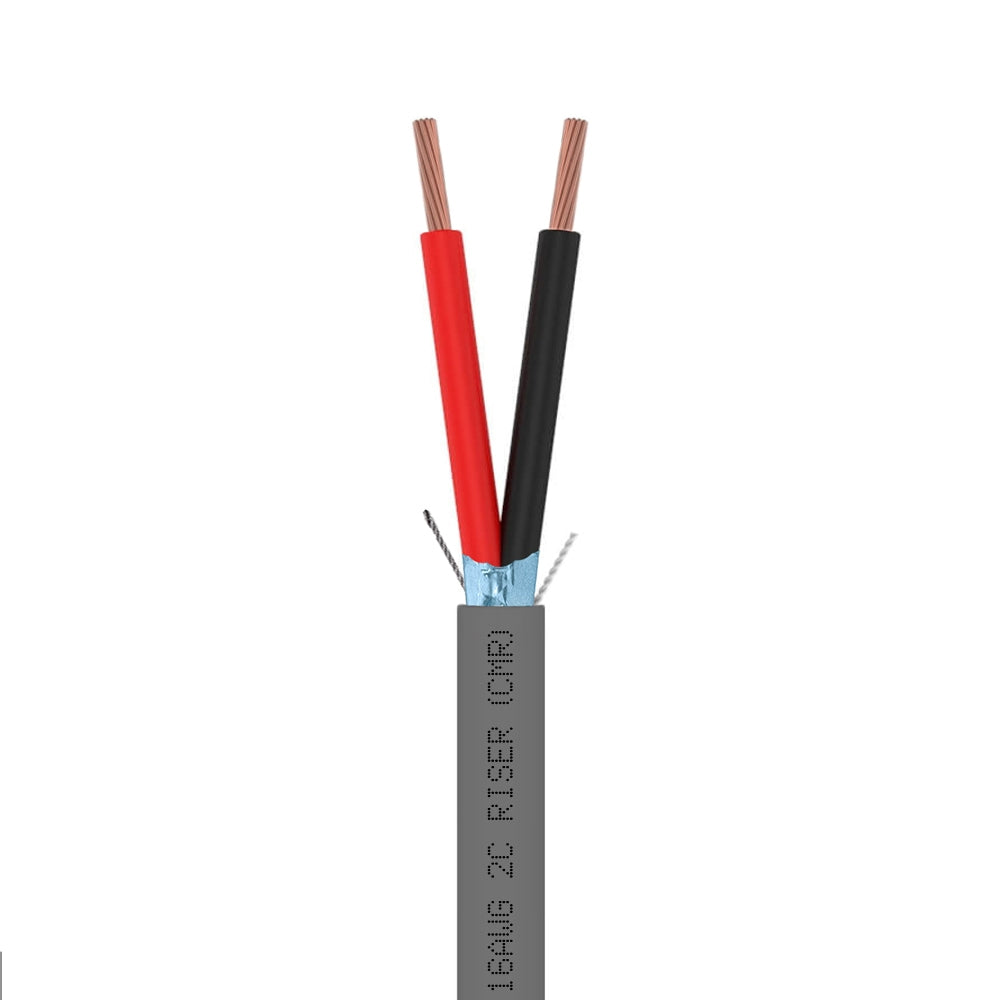

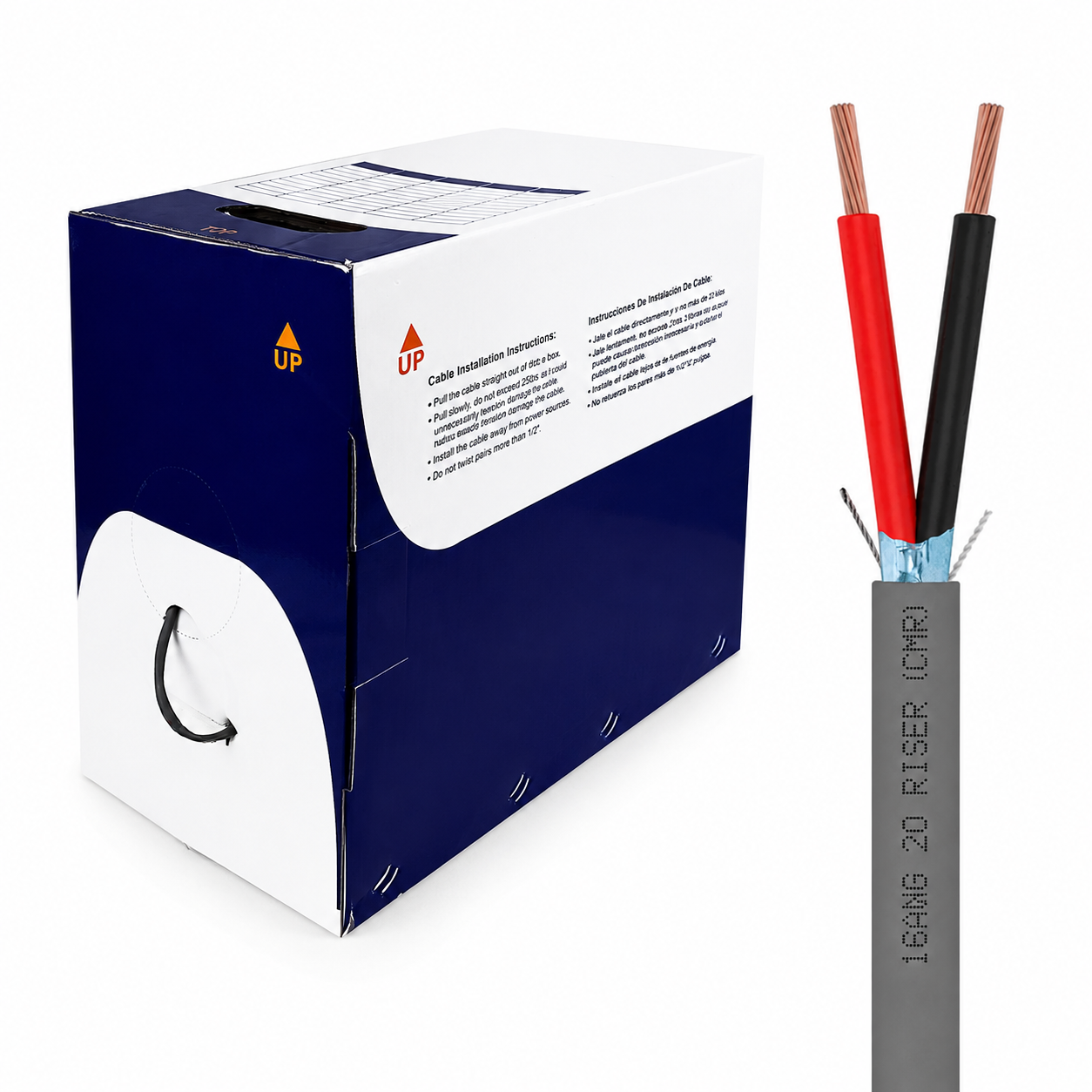

Control Cable Shielded 16AWG 2 Conductor Riser CMR Stranded Copper 1000ft Gray
-
Stranded Bare Copper · 16AWG · 2 Conductors
-
PET Tape + AL Foil + Drain Wire Shield
-
FR-PVC Jacket · CMR/FT4 Rated
-
C(ETL)US Listed · CL2R · CM/CMR
-
OD 4.50mm · 1000ft Reelex II · Grey
SAVE MORE
on Bulk Orders
The more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 3–9 units | $310.35 / unit | 3% |
| 10–19 units | $303.95 / unit | 5% |
| 20+ units | $297.55 / unit | 7% |
Price-match guarantee
FREE shipping
Lifetime warranty
Control Cable Shielded 16AWG 2 Conductor Riser CMR Stranded Copper 1000ft Gray
-
𝐒𝐊𝐈𝐏 𝐓𝐇𝐄 𝐏𝐋𝐄𝐍𝐔𝐌 𝐏𝐑𝐄𝐌𝐈𝐔𝐌 CMR is code-compliant for any non-plenum run and costs less than plenum-rated cable — don't overpay for CMP if your run never enters a plenum space.
-
𝐊𝐍𝐎𝐖 𝐖𝐇𝐄𝐍 𝐓𝐎 𝐆𝐎 𝐂𝐌𝐏 Running through an air-handling plenum space instead? Step up to the CMP-rated version — this listing tells you honestly when CMR isn't enough.
-
𝐒𝐓𝐎𝐏𝐒 𝐈𝐍𝐓𝐄𝐑𝐅𝐄𝐑𝐄𝐍𝐂𝐄 𝐂𝐎𝐋𝐃 PET tape, AL foil, and a drain wire ground out EMI from HVAC motors and lighting ballasts — no more flaky signals near equipment rooms.
-
𝐑𝐄𝐀𝐂𝐇𝐄𝐒 𝐅𝐀𝐑𝐓𝐇𝐄𝐑 𝐓𝐇𝐀𝐍 𝟏𝟖𝐀𝐖𝐆 Lower resistance than 18AWG means less voltage drop on long runs to door locks, amplifiers, and access control gear — no mid-run booster needed.
-
𝐑𝐈𝐏𝐂𝐎𝐑𝐃 𝐒𝐏𝐄𝐄𝐃𝐒 𝐔𝐏 𝐓𝐄𝐑𝐌𝐈𝐍𝐀𝐓𝐈𝐎𝐍 Built-in ripcord strips the jacket cleanly at every termination point — less time with a blade, more time finishing the job.
Description
Description
Run shielded control wiring through walls and risers with this 16AWG shielded stranded bare copper control cable, rated CMR/FT4 and C(ETL)US Listed. CMR is code-compliant for any non-plenum indoor installation and costs less than plenum-rated cable when the run doesn't pass through air-handling spaces — for plenum spaces, use the CMP-rated version of this cable instead.
The PET tape + AL foil + tinned copper drain wire shield blocks EMI from nearby electrical wiring, HVAC equipment, and lighting ballasts, delivering clean signals over long runs to security devices, audio amplifiers, and access control equipment. 16AWG handles more current and holds lower voltage drop over distance than 18AWG.
Standards: C(ETL)US Listed · CMR/FT4 · CL2/CL2R
Technical Specifications:

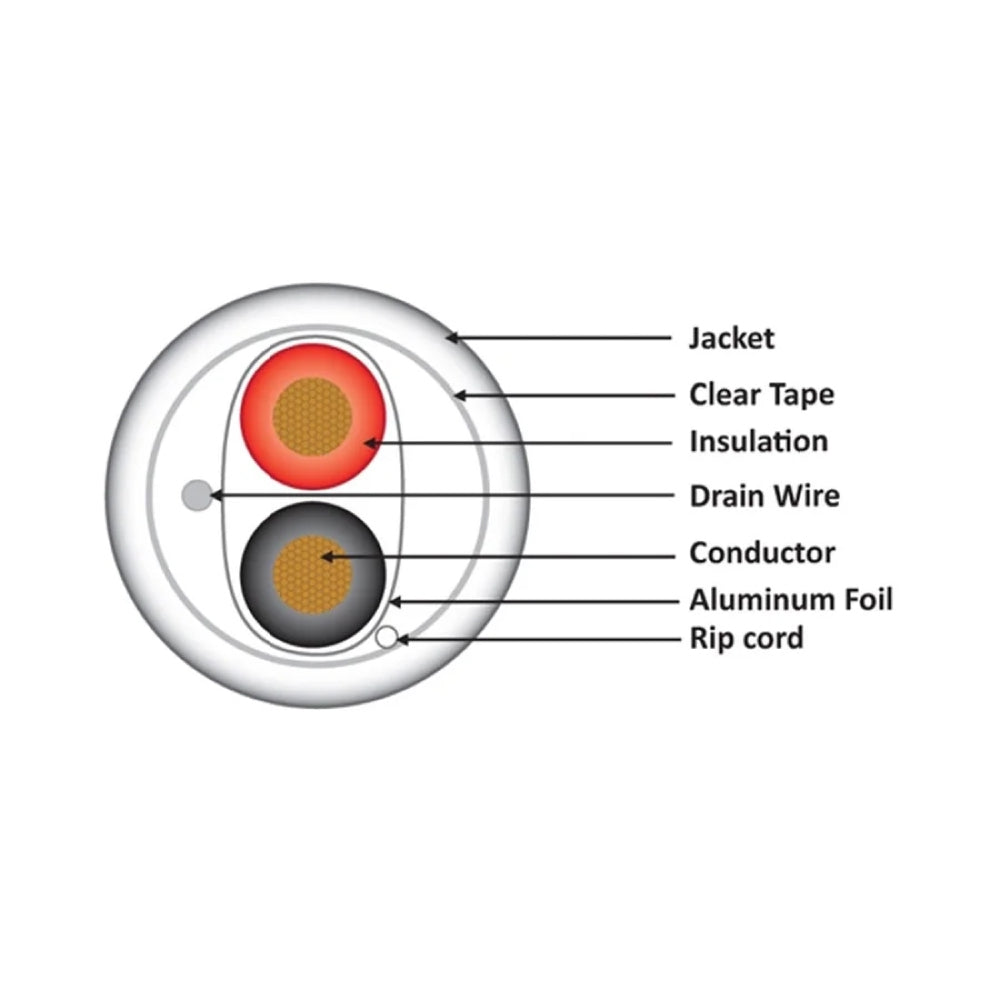

• Conductor: Stranded Bare Copper · AWG: 16 · Conductors: 2 (Black/Red)
• Shield: PET Tape + AL Foil + 7x0.20mm Drain Wire
• Jacket: FR-PVC, CMR/FT4 Rated · Color: Gray
• OD: 4.50 mm · Temp: -20°C to +60°C · Ripcord: Yes

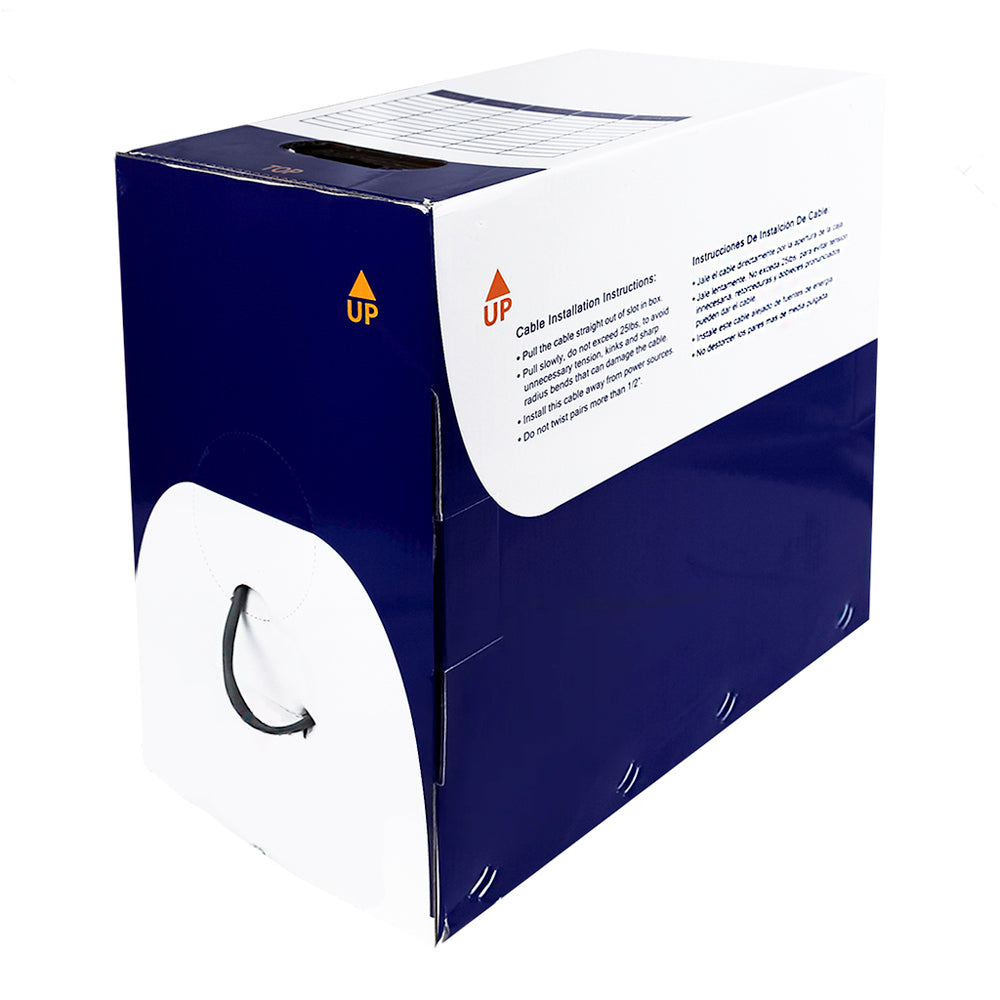

• Packaging: 1000ft Reelex II
Typical Applications:
• Security systems, audio, and background music distribution
• Access control and intercom systems
• HVAC actuators, relay coils, and motorized dampers
• Any CMR-rated power-limited control circuit
• In-wall and riser runs outside air-handling spaces
