Control Cable Shielded 18AWG 4 Conductor Riser CMR Stranded Copper 1000ft Grey
-
18AWG Stranded Bare Copper · 4 Conductors
-
AL-Foil + Drain Wire Shield
-
FR-PVC Jacket · CMR/FT4 Rated
-
C(ETL)US Listed · CMR/FT4 · 24 lbs/1000ft
-
OD 5.10mm · Grey Jacket · 1000ft Reelex II
SAVE MORE
on Bulk Orders
The more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 3–9 units | $373.40 / unit | 3% |
| 10–19 units | $365.70 / unit | 5% |
| 20+ units | $358.00 / unit | 7% |
Price-match guarantee
FREE shipping
Lifetime warranty

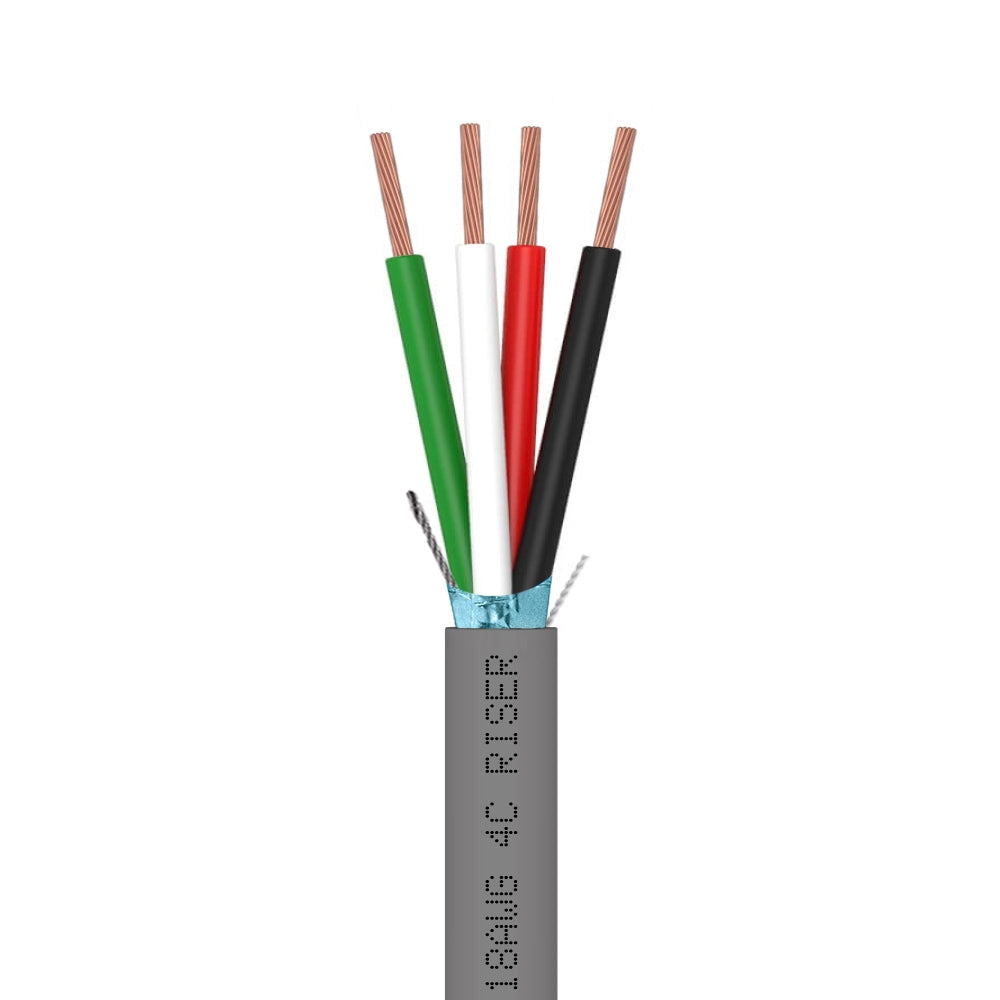

Control Cable Shielded 18AWG 4 Conductor Riser CMR Stranded Copper 1000ft Grey
-
𝟏𝟖𝐀𝐖𝐆 𝐒𝐇𝐈𝐄𝐋𝐃𝐄𝐃 𝐂𝐌𝐑 Four shielded 18AWG conductors for running multiple protected control signals over one riser cable.
-
𝐀𝐋-𝐅𝐎𝐈𝐋 + 𝐃𝐑𝐀𝐈𝐍 𝐖𝐈𝐑𝐄 100% foil coverage with drain wire for reliable EMI rejection and grounding at control panels.
-
𝐂𝐌𝐑 + 𝐅𝐓𝟒 𝐑𝐀𝐓𝐄𝐃 CMR and FT4 rated for in-wall and riser installations in commercial control and HVAC systems.
-
𝟒 𝐂𝐎𝐋𝐎𝐑-𝐂𝐎𝐃𝐄𝐃 𝐂𝐎𝐍𝐃𝐔𝐂𝐓𝐎𝐑𝐒 Four colored conductors simplify termination at control panels, junction boxes, and field devices.
-
𝟏𝟎𝟎𝟎𝐅𝐓 𝐆𝐑𝐄𝐘 𝐂𝐎𝐈𝐋 1000ft shielded CMR grey coil for complete commercial control wiring in multi-floor buildings.
Description
Description
Run four-conductor shielded control wiring through walls and risers with this 18AWG 4-conductor shielded stranded bare copper control cable, rated CMR/FT4 and C(ETL)US Listed — delivering shielded 4-conductor performance at a lower cost than the plenum-rated version.
Four color-coded conductors (Black, Red, Yellow, Green) handle power, signal, status, and auxiliary functions over a single shielded riser run — reducing conduit fill compared to pulling multiple 2-conductor cables. The aluminum foil shield with drain wire blocks EMI from electrical wiring, HVAC equipment, and lighting ballasts across all four conductors. At just 24 lbs per 1000ft, it's significantly lighter than the plenum version. For plenum spaces, choose CMP instead.
Standards: C(ETL)US Listed · CMR/FT4

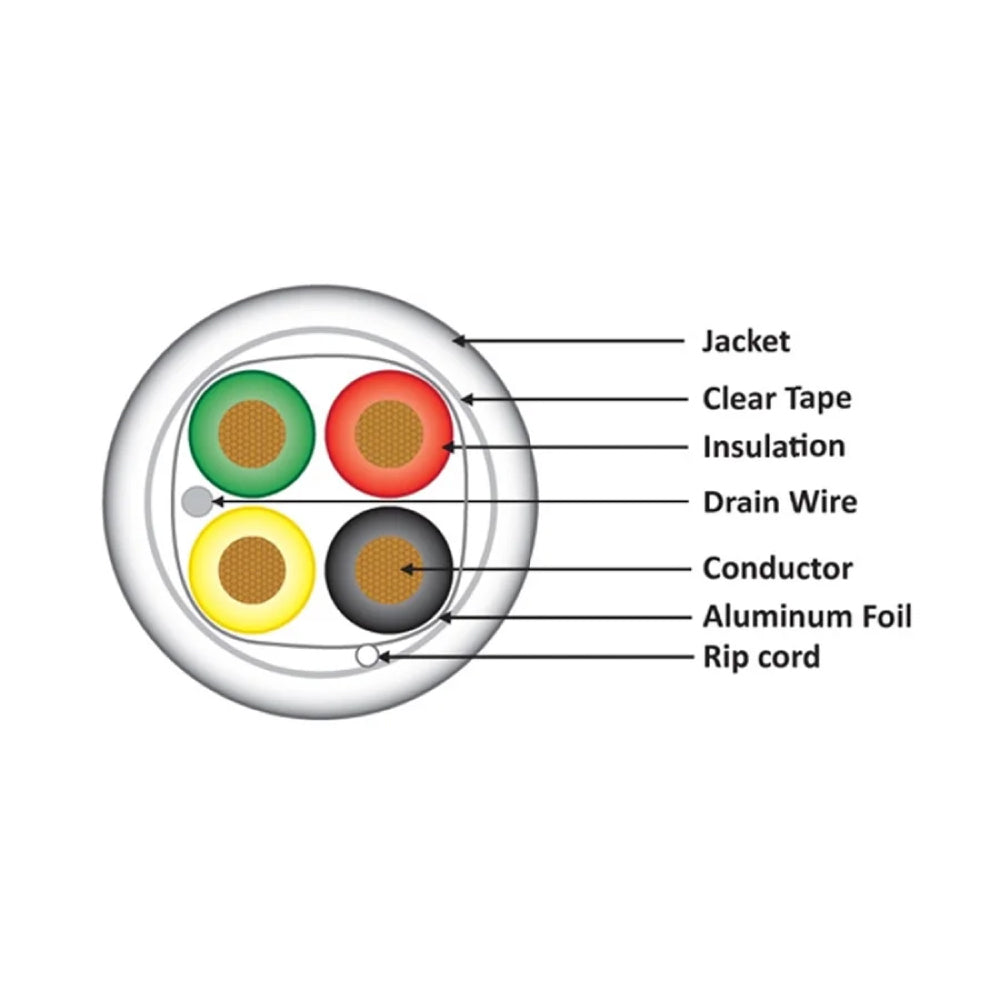

Technical Specifications:
• Conductor: Stranded Bare Copper · AWG: 18 · Conductors: 4 (Black/Red/Yellow/Green)
• Shield: AL-Foil + Drain Wire · Ripcord: Yes
• Jacket: FR-PVC, CMR/FT4 Rated · Color: Grey
• OD: 5.10 mm · Weight: 24 lbs/1000ft

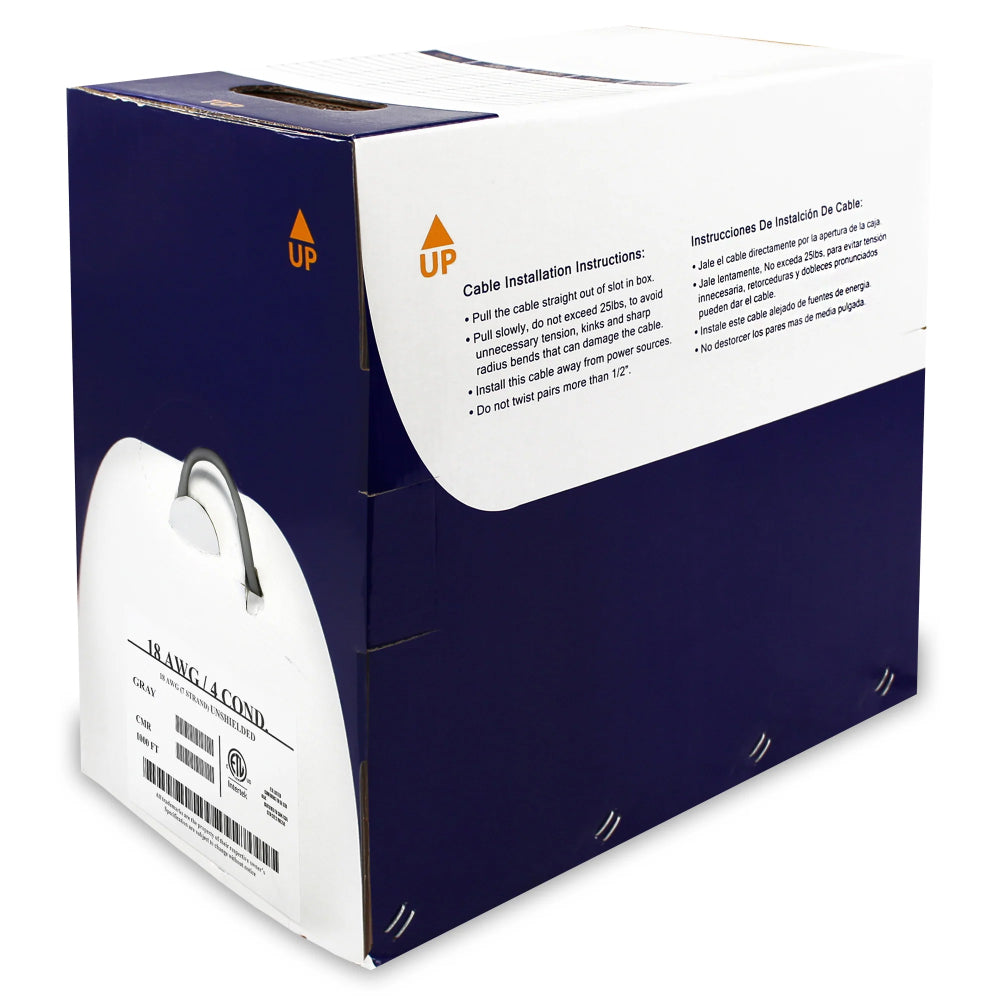

• Packaging: 1000ft Reelex II
Typical Applications:
• Power, signal, status, and auxiliary function wiring
• Commercial control and HVAC systems
• Multi-function device and panel wiring requiring EMI shielding
• Any CMR-rated power-limited control circuit
• In-wall and riser runs outside air-handling spaces
