Control Cable Shielded 22AWG 6 Conductor Riser CMR Stranded Copper 1000ft 500ft
-
Stranded Bare Copper · 22AWG · 6 Conductors
-
AL-PET Tape + Tinned Copper Drain Wire Shield
-
FR-PVC Jacket · CMR/CL2R Rated
-
C(ETL)US Listed · UL 444 · CMR
-
OD 3.70mm · White 500ft or Grey 1000ft
SAVE MORE
on Bulk Orders
The more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 3–9 units | $150.30 / unit | 3% |
| 10–19 units | $147.20 / unit | 5% |
| 20+ units | $144.10 / unit | 7% |
Price-match guarantee
FREE shipping
Lifetime warranty
Control Cable Shielded 22AWG 6 Conductor Riser CMR Stranded Copper 1000ft 500ft
-
𝐒𝐋𝐈𝐌𝐌𝐄𝐒𝐓 𝟔𝐂 𝐒𝐇𝐈𝐄𝐋𝐃𝐄𝐃 𝐈𝐍 𝐋𝐈𝐍𝐄 At 3.70mm OD, this is the slimmest shielded 6-conductor riser control cable — more room in tight conduit and riser fills than the 18AWG version.
-
𝟔 𝐂𝐎𝐍𝐃𝐔𝐂𝐓𝐎𝐑𝐒 𝐎𝐍𝐄 𝐂𝐀𝐁𝐋𝐄 𝐑𝐔𝐍 Six color-coded conductors handle signal, control, and auxiliary functions to intercoms, card readers, sensors, and multi-zone devices in one pull.
-
𝐒𝐓𝐎𝐏𝐒 𝐈𝐍𝐓𝐄𝐑𝐅𝐄𝐑𝐄𝐍𝐂𝐄 𝐂𝐎𝐋𝐃 AL-PET tape and a drain wire ground out EMI across all six conductors — reliable single-point grounding at the control panel.
-
𝐊𝐍𝐎𝐖 𝐖𝐇𝐄𝐍 𝐓𝐎 𝐔𝐏𝐆𝐑𝐀𝐃𝐄 In a plenum space, go CMP. Need higher current? Step up to 18AWG. This listing tells you honestly which one you actually need.
-

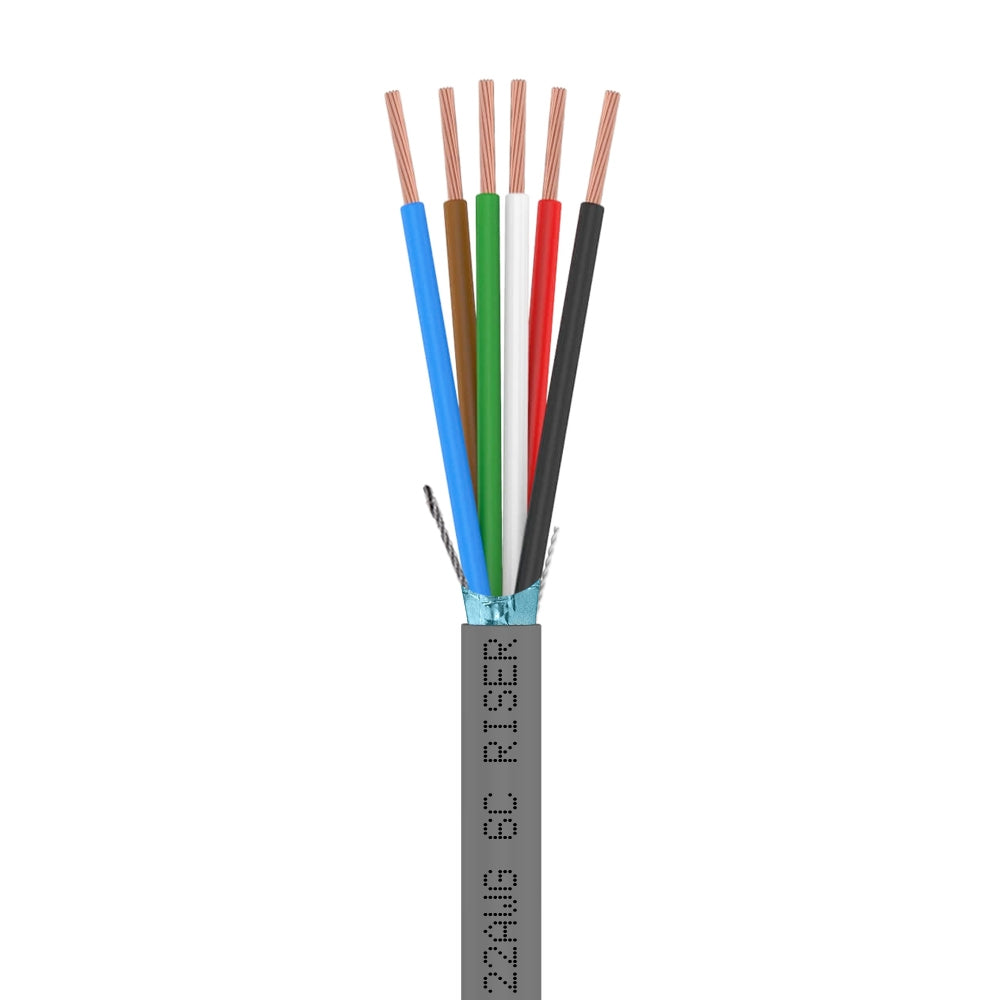

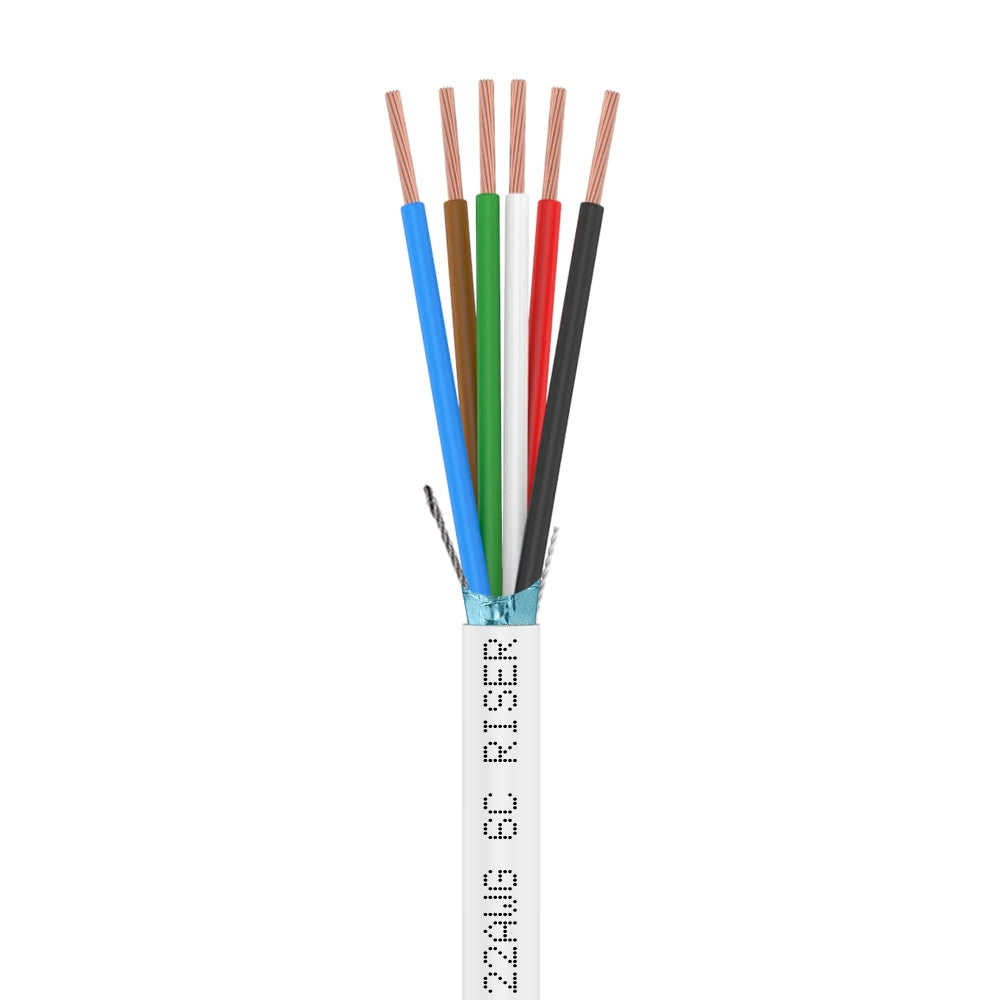

𝐖𝐇𝐈𝐓𝐄 𝟓𝟎𝟎𝐅𝐓 𝐎𝐑 𝐆𝐑𝐄𝐘 𝟏𝟎𝟎𝟎𝐅𝐓 Matched to project size — White in a compact 500ft reel for smaller jobs, Grey in a full 1000ft reel for larger installations.
Description
Description
Fit six shielded conductors into tight conduit runs with this 22AWG shielded stranded bare copper control cable — the slimmest shielded 6-conductor CMR cable at just 3.70mm OD. Rated CMR and C(ETL)US Listed for in-wall and riser installations, its compact diameter maximizes conduit fill compared to the 18AWG CMR version (6.15mm OD).
Six color-coded conductors (Black/Red/White/Green/Brown/Blue) handle signal, control, and auxiliary functions to intercoms, door stations, card readers, sensors, and multi-zone alarm devices. The AL-PET tape shield with drain wire blocks EMI across all six conductors. For plenum spaces, choose CMP; for higher current, choose 18AWG CMR instead.
Standards: C(ETL)US Listed · CMR · CL2/CL2R · UL 444
Technical Specifications:
• Conductor: Stranded Bare Copper · AWG: 22 · Conductors: 6 (Black/Red/White/Green/Brown/Blue)
• Shield: AL-PET Tape + 7x0.254mm Tinned Copper Drain Wire
• Jacket: FR-PVC, CMR Rated · Ripcord: Yes
• OD: 3.70 mm · Voltage: 80V
• Packaging: White 500ft Reelex II or Grey 1000ft Reelex II
Typical Applications:
• Multi-zone intercoms, door stations, and card readers
• Security systems, audio, and background music distribution
• Sensor and multi-zone alarm device wiring
• Any CMR-rated power-limited control circuit
• Tight-conduit in-wall and riser runs
