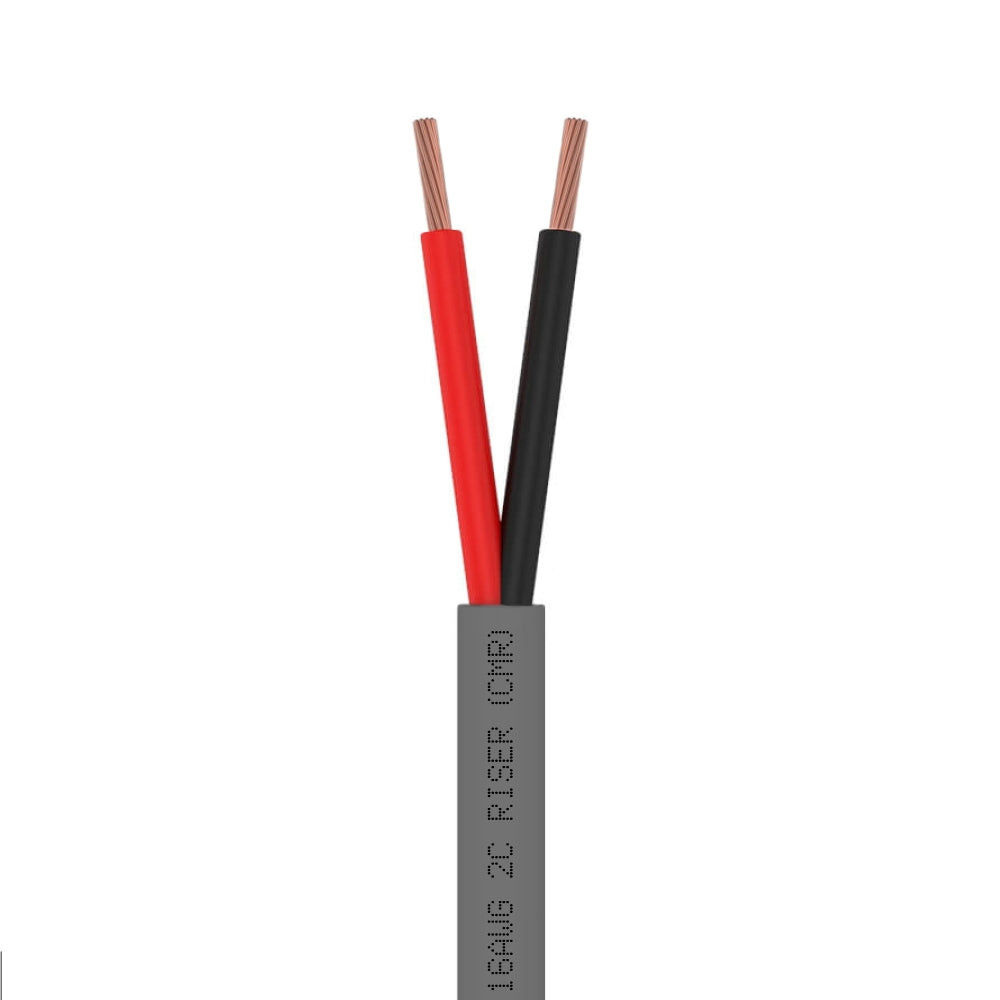

Control Cable Unshielded 16AWG 2 Conductor Riser CMR Stranded Copper 1000ft Gray
-
Stranded Bare Copper · 16AWG · 2 Conductors
-
Unshielded · 19-Strand Conductors · Ripcord
-
FR-PVC Jacket · CMR/FT4 Rated
-
C(ETL)US Listed · CL2R · UL444
-
OD 4.60mm · 1000ft Reelex II · Grey
SAVE MORE
on Bulk Orders
The more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 3–9 units | $276.40 / unit | 3% |
| 10–19 units | $270.70 / unit | 5% |
| 20+ units | $265.00 / unit | 7% |
Price-match guarantee
FREE shipping
Lifetime warranty
Control Cable Unshielded 16AWG 2 Conductor Riser CMR Stranded Copper 1000ft Gray
-
𝐁𝐄𝐒𝐓 𝐕𝐀𝐋𝐔𝐄 𝐈𝐍 𝐓𝐇𝐄 𝐋𝐈𝐍𝐄𝐔𝐏 No shield, no plenum rating — no extra cost. This is the most affordable 16AWG control cable in the entire line when your run doesn't need either.
-
𝐊𝐍𝐎𝐖 𝐖𝐇𝐄𝐍 𝐓𝐎 𝐔𝐏𝐆𝐑𝐀𝐃𝐄 Near motors or power lines, step up to shielded. In a plenum space? Step up to CMP. This listing tells you honestly which one you need.
-
𝐑𝐄𝐀𝐂𝐇𝐄𝐒 𝐅𝐀𝐑𝐓𝐇𝐄𝐑 𝐓𝐇𝐀𝐍 𝟏𝟖𝐀𝐖𝐆 Lower resistance than 18AWG means less voltage drop on long runs to door strikes, amplifiers, and access control gear — no mid-run booster needed.
-
𝐒𝐓𝐀𝐘𝐒 𝐅𝐋𝐄𝐗𝐈𝐁𝐋𝐄 𝐎𝐍 𝐓𝐇𝐄 𝐏𝐔𝐋𝐋 19 strands per conductor keep this cable easy to route through walls, conduit, and junction boxes — no kinking, no fighting the pull.
-
𝐑𝐈𝐏𝐂𝐎𝐑𝐃 𝐒𝐏𝐄𝐄𝐃𝐒 𝐔𝐏 𝐓𝐄𝐑𝐌𝐈𝐍𝐀𝐓𝐈𝐎𝐍 Built-in ripcord strips the jacket cleanly at every termination point — less time with a blade, more time finishing the job.
Description
Description
Get reliable 16AWG control cable performance in walls and risers at the lowest cost in the lineup with this unshielded stranded bare copper control cable, rated CMR/FT4 and C(ETL)US Listed. With no shield to add cost or complexity, it's the straightforward choice for clean environments without significant EMI from power lines, motors, or lighting ballasts.
16AWG handles more current and holds lower voltage drop over long runs than 18AWG — important for powered security devices, audio amplifiers, and access control equipment. With 19 strands per conductor, the cable stays flexible through walls, conduit, and junction boxes. For EMI environments, choose the shielded CMR version; for plenum spaces, choose CMP instead.
Standards: C(ETL)US Listed · CMR/FT4 · CL2/CL2R · UL444
Technical Specifications:

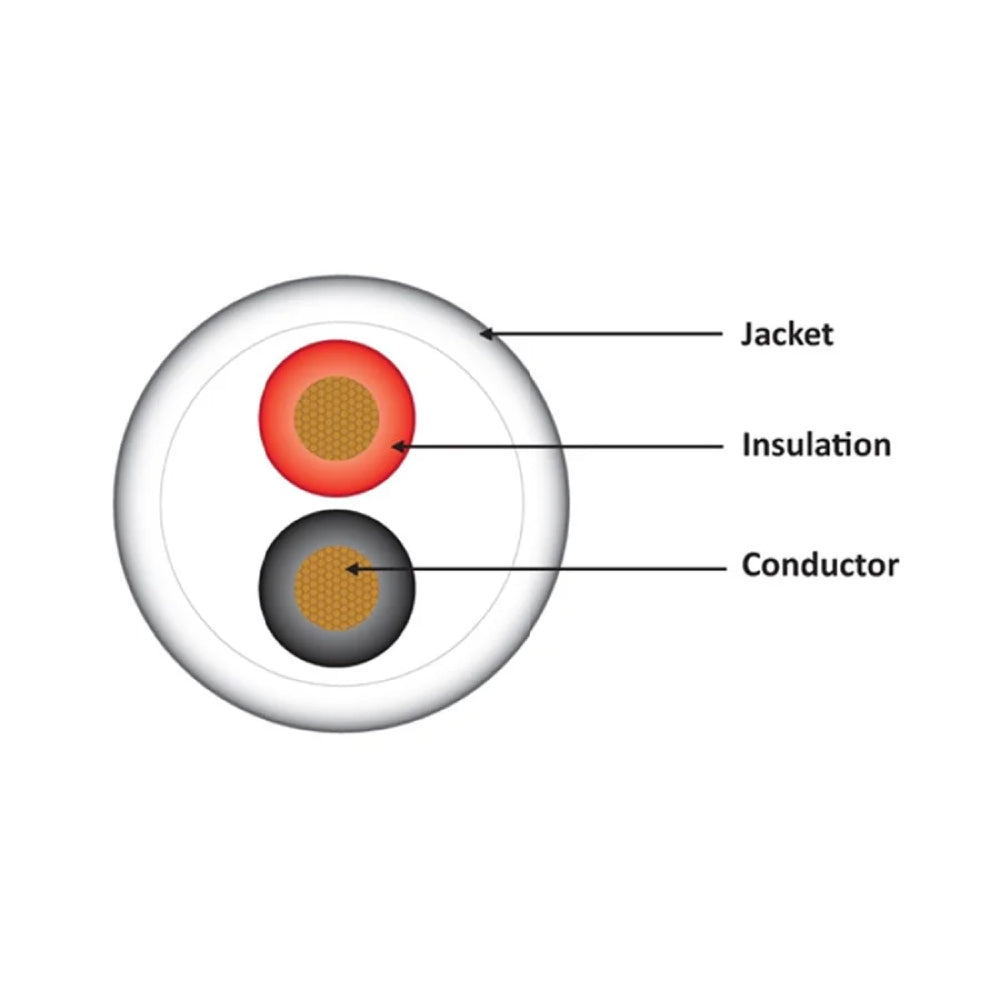

• Conductor: Stranded Bare Copper · AWG: 16 · Conductors: 2 (Black/Red)
• Shielding: None (Unshielded) · Ripcord: Yes
• Jacket: FR-PVC, CMR/FT4 Rated · Color: Gray
• OD: 4.60 mm · Voltage: 300V

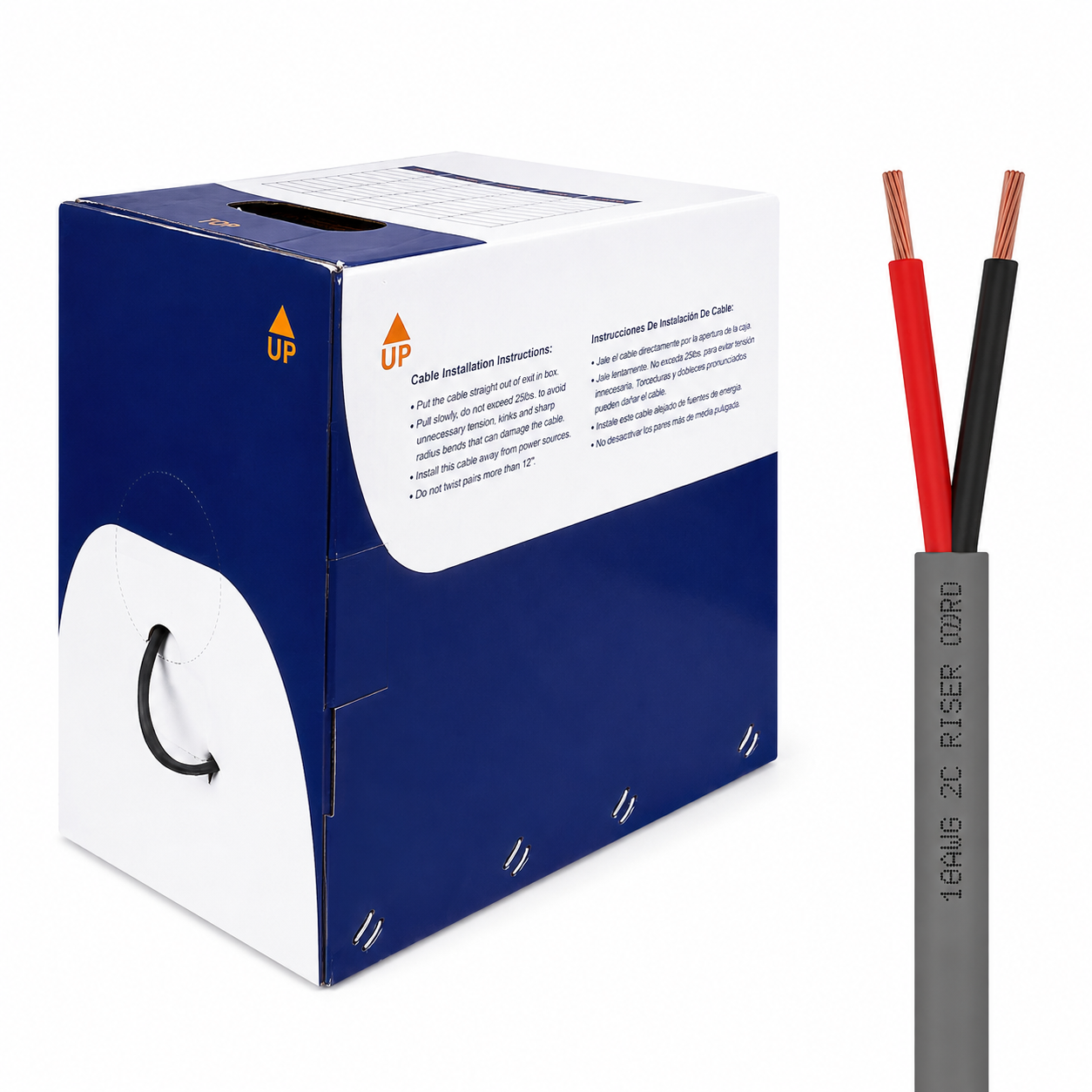

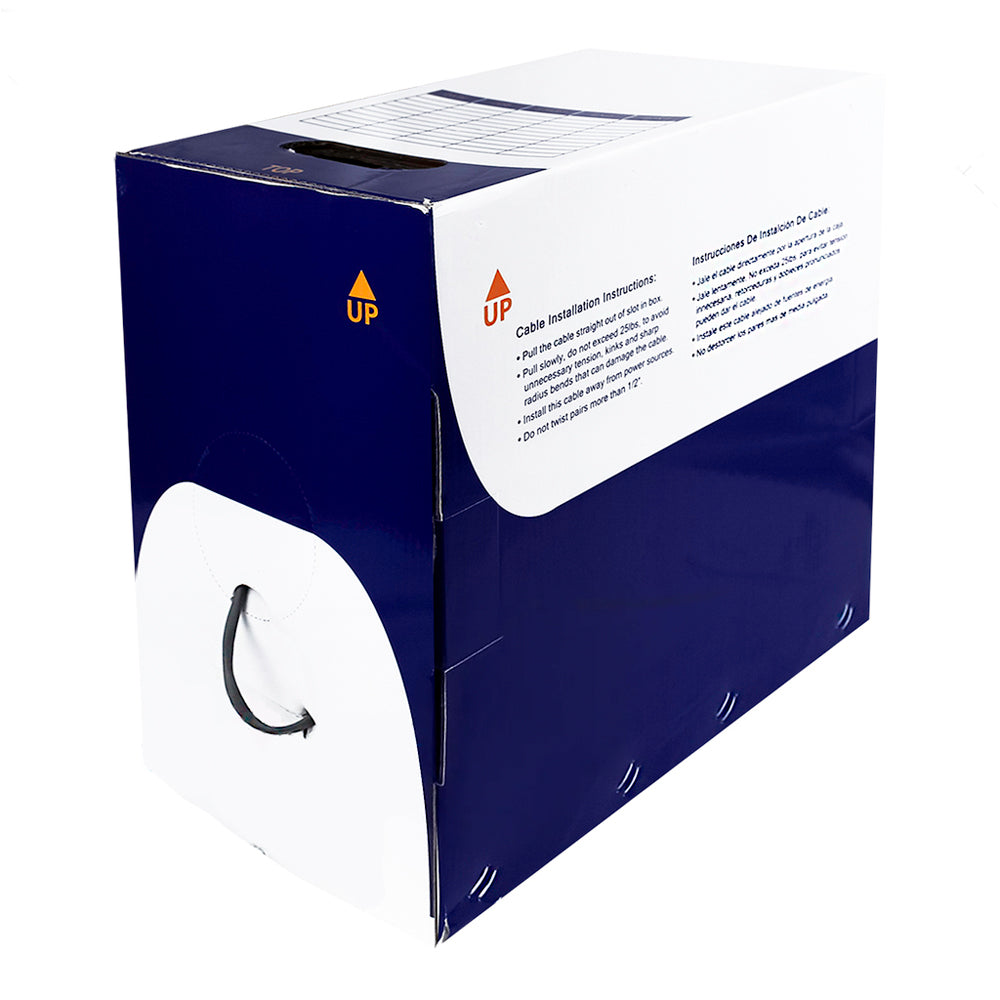

• Packaging: 1000ft Reelex II
Typical Applications:
• Security systems, audio, and background music distribution
• Access control, door strikes, and intercom systems
• HVAC actuators, motorized dampers, and relay coils
• Any CMR-rated power-limited control circuit
• In-wall and riser runs in low-EMI environments
