Control Cable Unshielded 18AWG 4 Conductor Riser CMR Stranded Copper 1000ft Grey
-
18AWG Stranded Bare Copper · 4 Conductors
-
Unshielded – Most Cost-Effective 4C CMR Option
-
FR-PVC Jacket · CMR/FT4 Rated
-
C(ETL)US Listed · CL2R · CM/CMR
-
OD 5.10mm · Grey Jacket · 1000ft Reelex II
SAVE MORE
on Bulk Orders
The more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 3–9 units | $324.90 / unit | 3% |
| 10–19 units | $318.20 / unit | 5% |
| 20+ units | $311.50 / unit | 7% |
Price-match guarantee
FREE shipping
Lifetime warranty
Control Cable Unshielded 18AWG 4 Conductor Riser CMR Stranded Copper 1000ft Grey
-
𝟏𝟖𝐀𝐖𝐆 𝐔𝐍𝐒𝐇𝐈𝐄𝐋𝐃𝐄𝐃 𝐂𝐌𝐑 Four 18AWG conductors in a single CMR cable — reduces conduit fill and installation time in risers.
-
𝐂𝐌𝐑 + 𝐅𝐓𝟒 𝐑𝐀𝐓𝐄𝐃 CMR and FT4 rated for in-wall and riser installations in commercial control and HVAC systems.
-
𝟒 𝐂𝐎𝐋𝐎𝐑-𝐂𝐎𝐃𝐄𝐃 𝐂𝐎𝐍𝐃𝐔𝐂𝐓𝐎𝐑𝐒 Four individually colored conductors simplify termination at control panels and field devices.
-
𝟏𝟖𝐀𝐖𝐆 𝐒𝐓𝐑𝐀𝐍𝐃𝐄𝐃 𝐂𝐎𝐏𝐏𝐄𝐑 Flexible stranded copper routes through conduit and terminates in screw and push-in connectors.
-
𝟏𝟎𝟎𝟎𝐅𝐓 𝐆𝐑𝐄𝐘 𝐂𝐎𝐈𝐋 1000ft grey CMR coil covers complete floor-wide or building-wide 4-conductor control installs.
Description
Description
Run four-conductor CMR control wiring through walls and risers at the lowest cost in the 4-conductor lineup with this 18AWG unshielded stranded bare copper control cable, rated CMR/FT4 and C(ETL)US Listed. It's the straightforward choice for clean environments without significant EMI from power lines, motors, or industrial equipment.
Four color-coded conductors (Black, Red, White, Green) let you handle power, signal, status, and auxiliary functions over a single cable run — reducing conduit fill in riser shafts compared to pulling multiple 2-conductor cables. The unshielded design removes the cost of shielding for a simpler, cost-effective installation. For EMI environments, choose shielded CMR; for plenum spaces, choose CMP instead.
Standards: C(ETL)US Listed · CMR/FT4 · CM/CMR · CL2/CL2R
Technical Specifications:

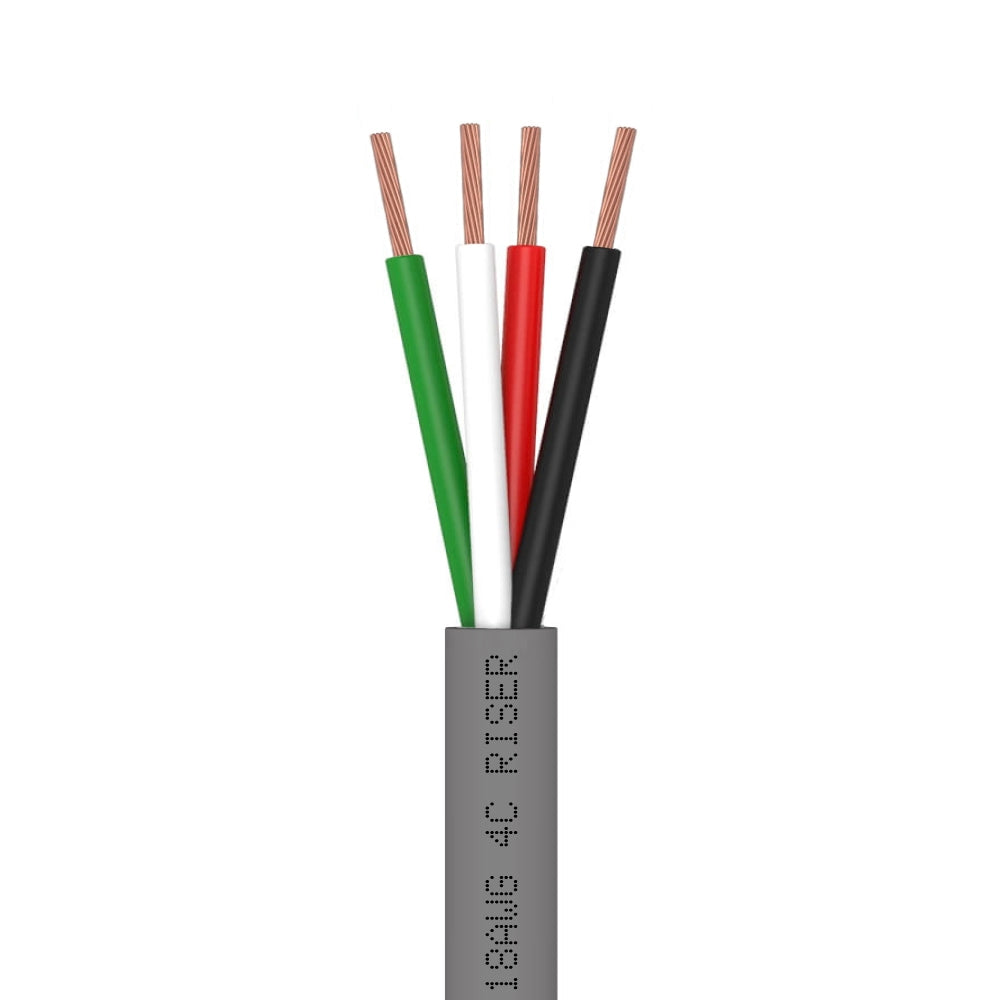

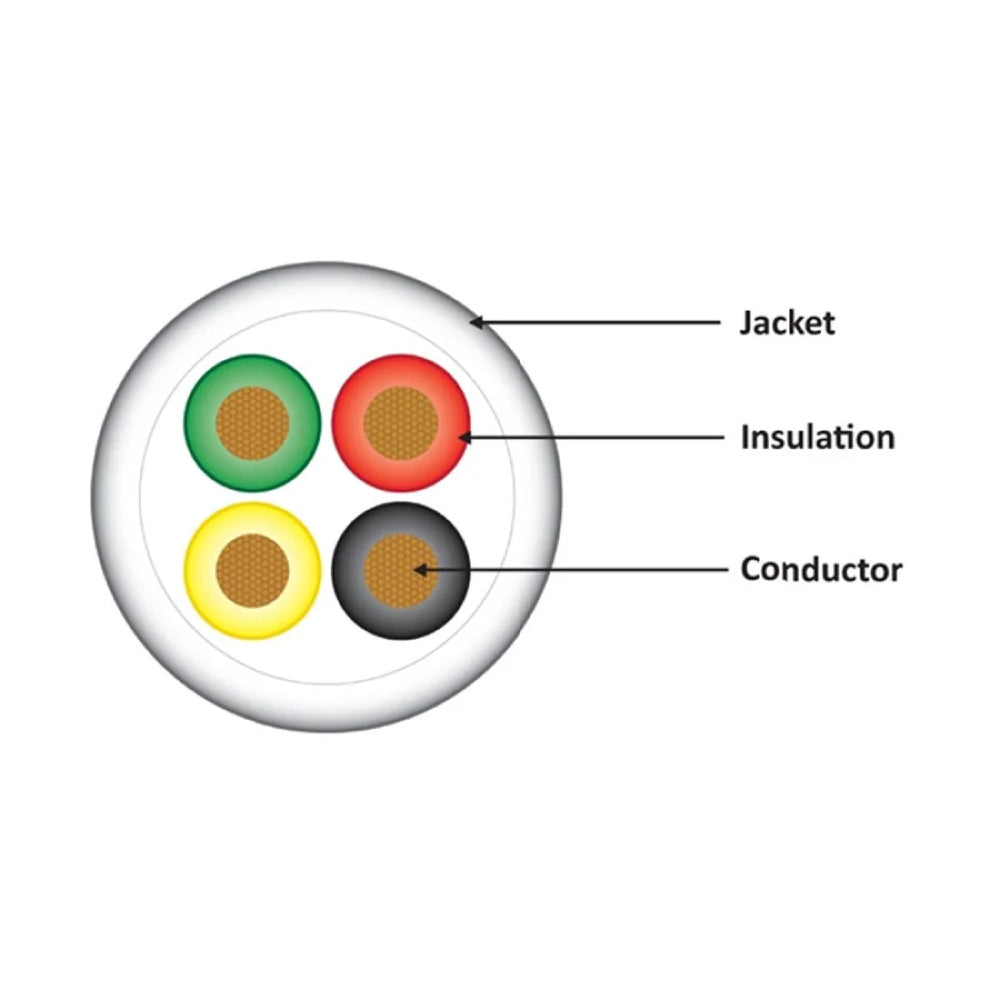

• Conductor: Stranded Bare Copper · AWG: 18 · Conductors: 4 (Black/Red/White/Green)
• Shielding: None (Unshielded) · Ripcord: Yes
• Jacket: FR-PVC, CMR/FT4 Rated · Color: Grey
• OD: 5.10 mm · Weight: 38 lbs/1000ft

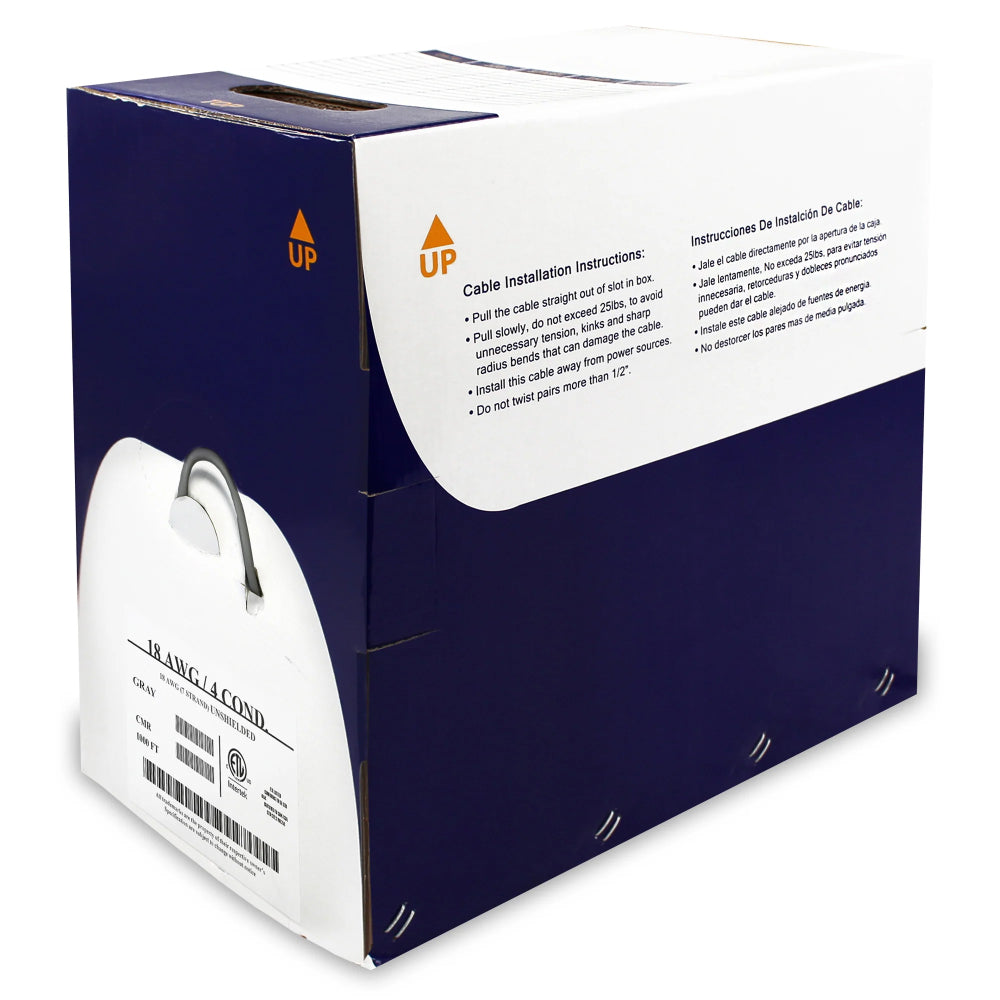

• Packaging: 1000ft Reelex II
Typical Applications:
• Power, signal, status, and auxiliary function wiring
• Commercial control and HVAC systems
• Multi-function device and panel wiring
• Any CMR-rated power-limited control circuit
• In-wall and riser runs in low-EMI environments
