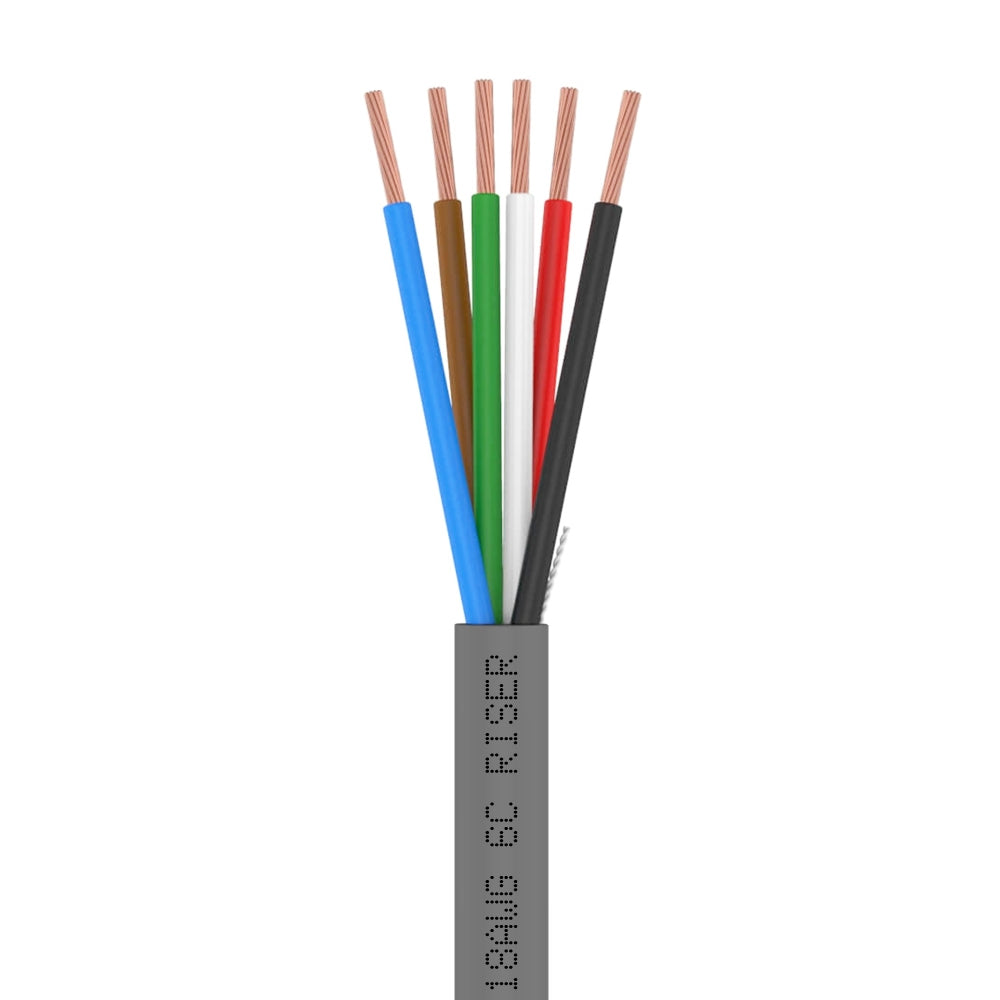

Control Cable Unshielded 18AWG 6 Conductor Riser CMR Stranded Copper 1000ft Grey
-
18AWG Stranded Bare Copper · 6 Conductors
-
6-Color Coded: BK, RD, WH, GN, BR, BL
-
FR-PVC Jacket · CMR Rated
-
C(ETL)US Listed · UL 444 · CL2R · 300V
-
OD 6.05mm · Grey Jacket · 1000ft Reel
SAVE MORE
on Bulk Orders
The more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 3–9 units | $484.95 / unit | 3% |
| 10–19 units | $474.95 / unit | 5% |
| 20+ units | $464.95 / unit | 7% |
Price-match guarantee
FREE shipping
Lifetime warranty
Control Cable Unshielded 18AWG 6 Conductor Riser CMR Stranded Copper 1000ft Grey
-
𝟏𝟖𝐀𝐖𝐆 𝐔𝐍𝐒𝐇𝐈𝐄𝐋𝐃𝐄𝐃 𝐂𝐌𝐑 Six 18AWG CMR conductors replace three 2-conductor runs — dramatically reduces conduit fill.
-
𝐂𝐌𝐑 + 𝐅𝐓𝟒 𝐑𝐀𝐓𝐄𝐃 CMR and FT4 rated for in-wall and riser runs in multi-zone HVAC, security, and automation.
-
𝟔 𝐂𝐎𝐋𝐎𝐑-𝐂𝐎𝐃𝐄𝐃 𝐂𝐎𝐍𝐃𝐔𝐂𝐓𝐎𝐑𝐒 Six individually colored conductors simplify wiring at control panels and zone boards.
-
𝟏𝟖𝐀𝐖𝐆 𝐒𝐓𝐑𝐀𝐍𝐃𝐄𝐃 𝐂𝐎𝐏𝐏𝐄𝐑 Flexible stranded copper routes through conduit and terminates reliably in push-in connectors.
-
𝟏𝟎𝟎𝟎𝐅𝐓 𝐆𝐑𝐄𝐘 𝐂𝐎𝐈𝐋 1000ft grey CMR coil for complete multi-zone 6-conductor control wiring in commercial buildings.
Description
Description
Handle complex control and security wiring in walls and risers with this 18AWG 6-conductor unshielded stranded bare copper control cable, rated CMR and C(ETL)US Listed. Six color-coded conductors mean one cable run replaces three separate 2-conductor cables to the same device or panel — a major reduction in conduit fill and installation time.
Six conductors let you dedicate separate conductors to power, signal, return, tamper, status, and auxiliary functions for complex security panels, multi-channel audio zones, access control with door monitoring, and HVAC automation controllers. A built-in ripcord enables fast jacket removal at every termination. For plenum spaces, choose CMP; for EMI-heavy environments, choose shielded CMR instead.
Standards: C(ETL)US Listed · CMR · CL2/CL2R · UL 444
Technical Specifications:

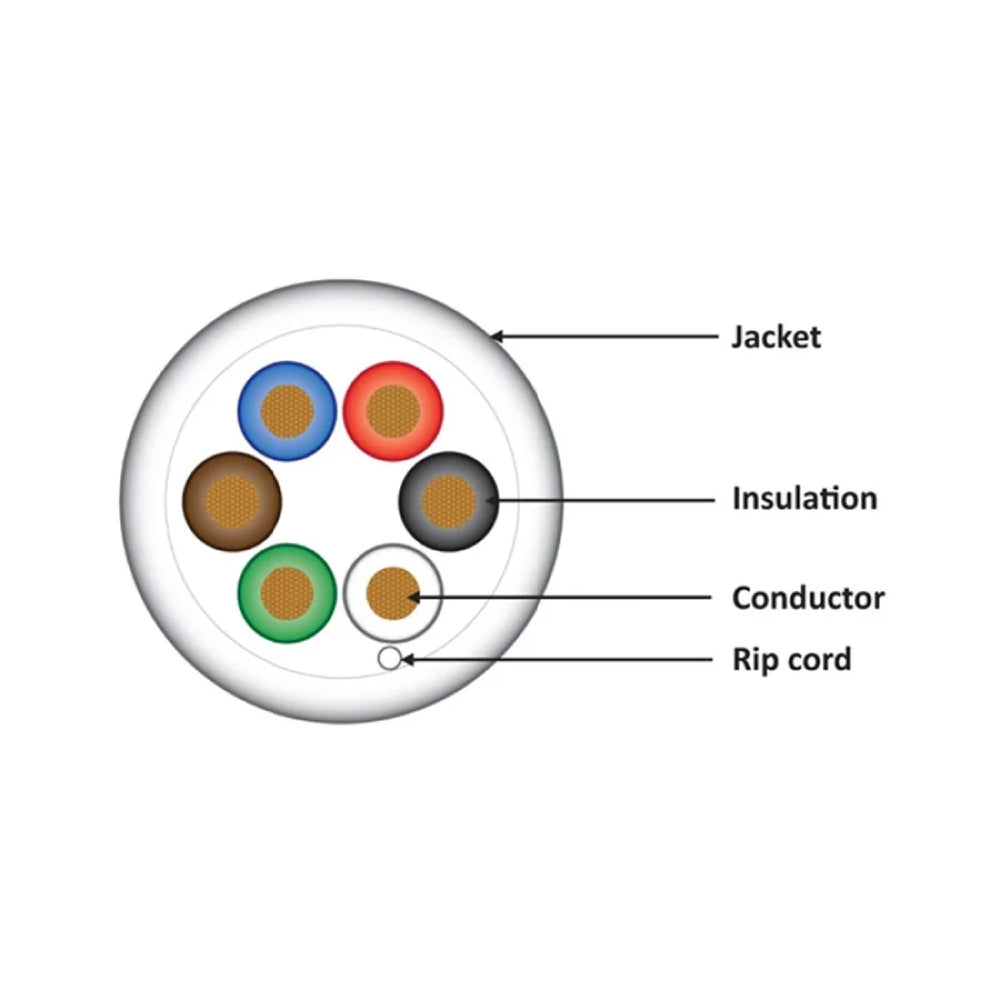

• Conductor: Stranded Bare Copper · AWG: 18 · Conductors: 6 (Black/Red/White/Green/Brown/Blue)
• Shielding: None (Unshielded) · Ripcord: Yes
• Jacket: FR-PVC, CMR Rated · Color: Grey
• OD: 6.05 mm · Weight: 55 lbs/1000ft · Voltage: 300V

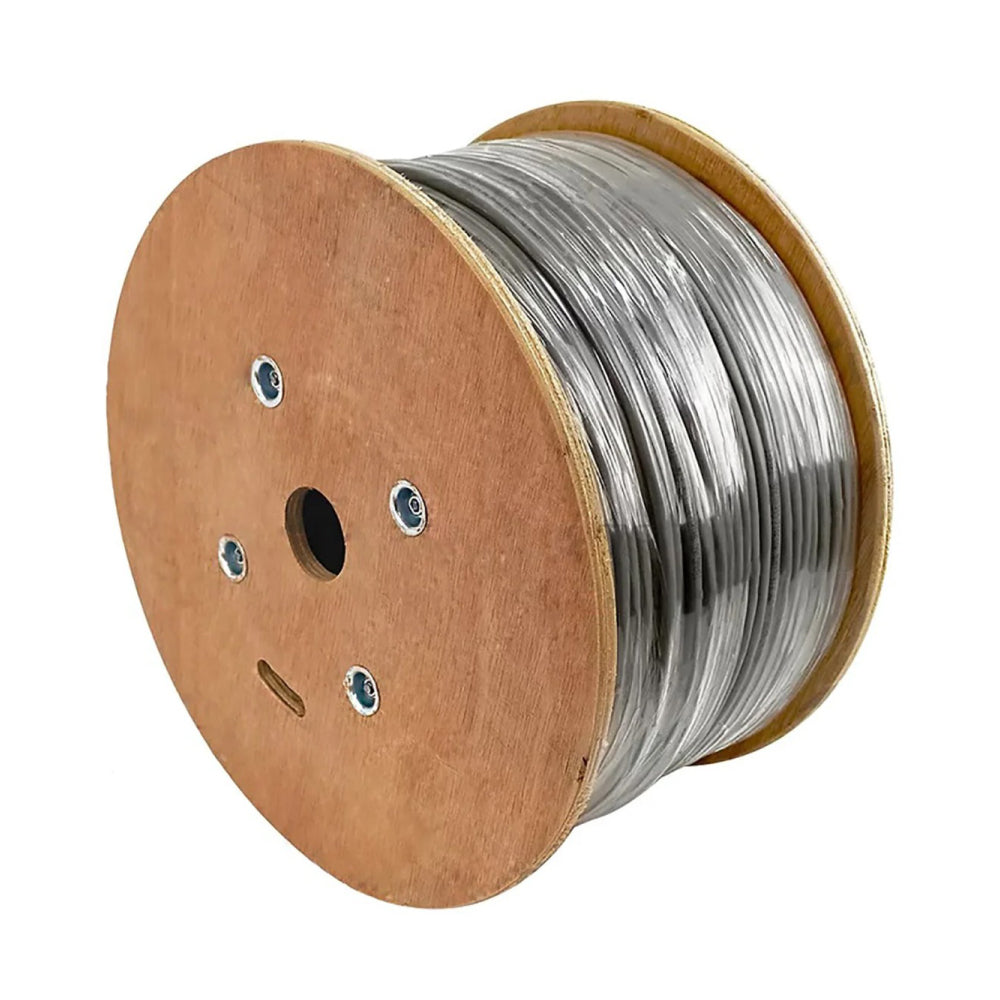

• Packaging: 1000ft Reel
Typical Applications:
• Complex security panels and multi-zone alarm systems
• Multi-channel audio zone wiring
• Access control with door monitoring
• HVAC building automation controllers
• Any CMR-rated power-limited control circuit
