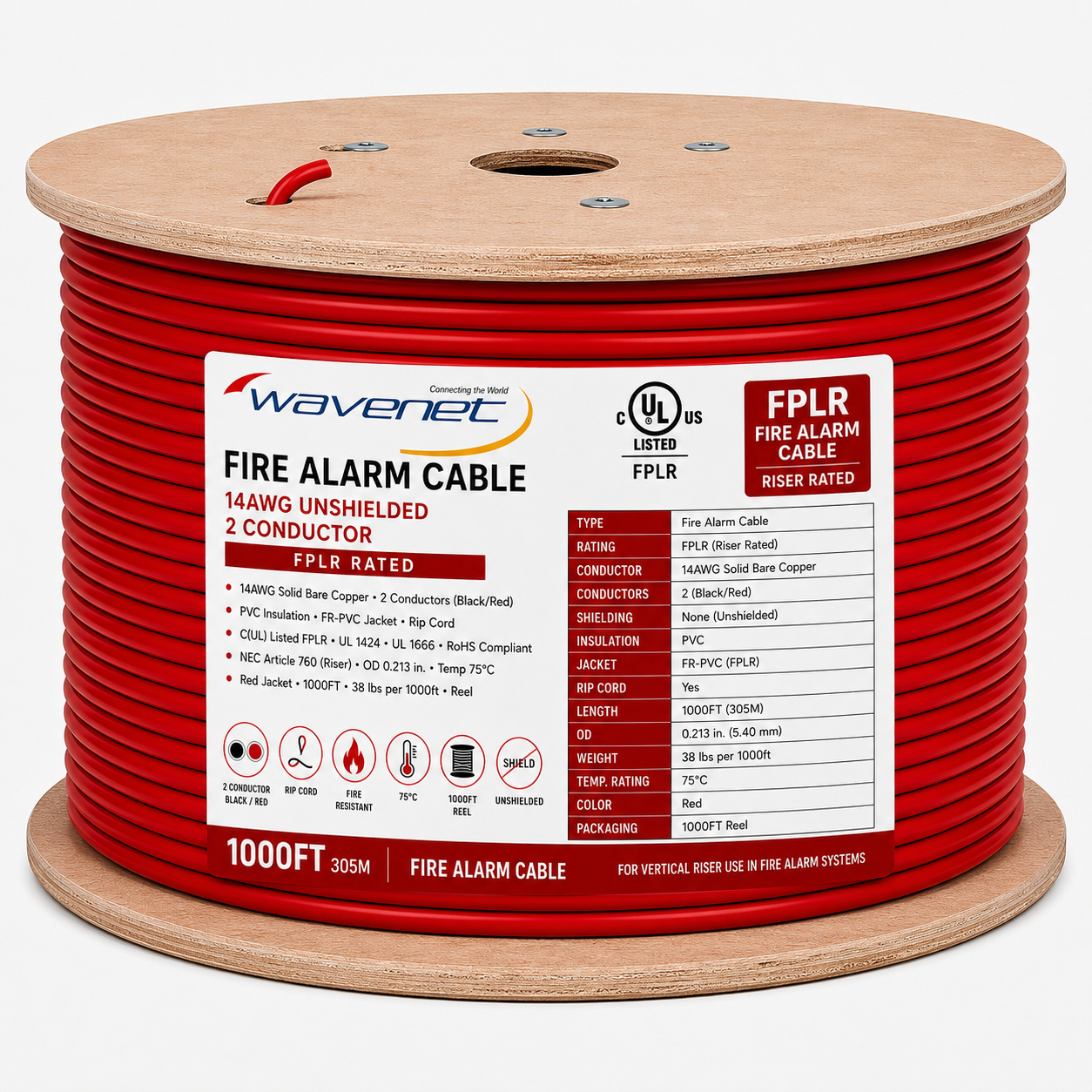

Fire Alarm Cable 14AWG 2 Solid Conductors Bare Copper FPLR Riser 1000ft Red
-

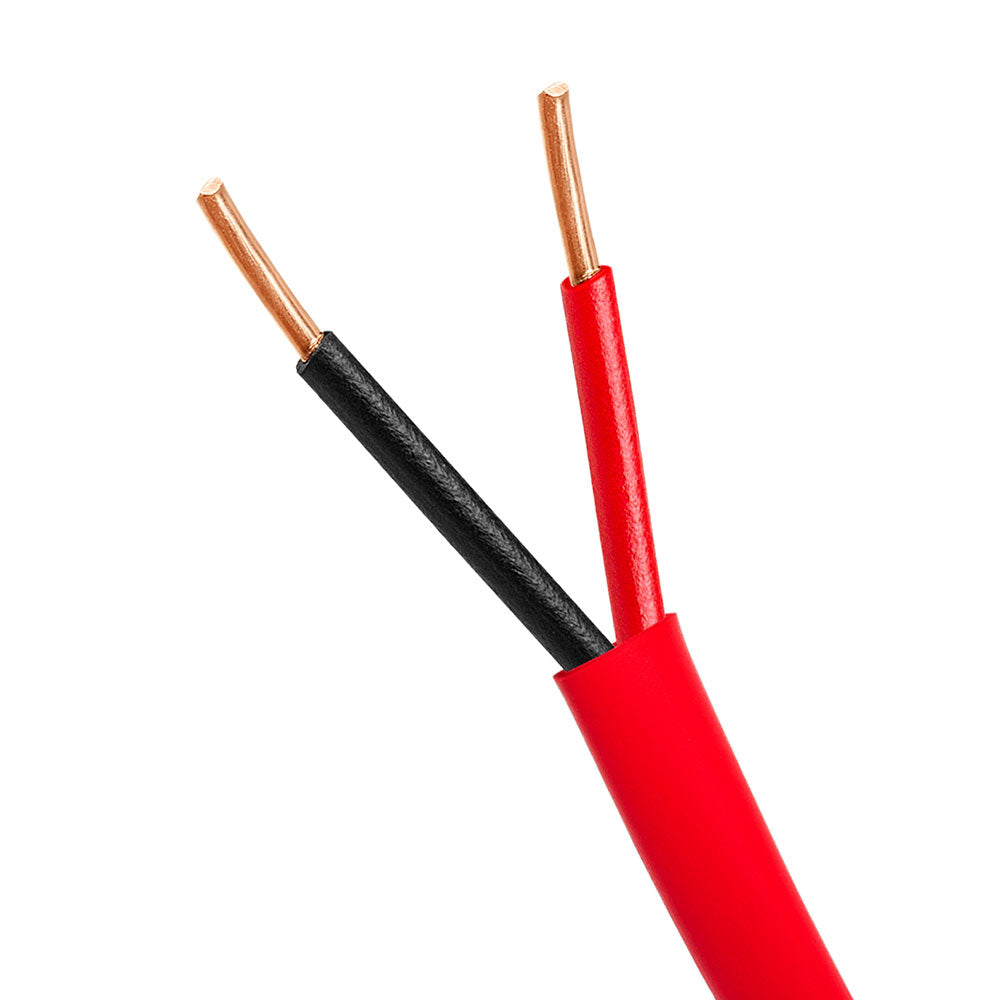

14AWG Solid Bare Copper · 2 Conductors Black/Red
-
PVC Insulation · FR-PVC Jacket · Rip Cord
-
C(UL) Listed FPLR · UL 1424 · UL 1666
-
OD 0.213 in. · 38 lbs/1000ft · Temp 75°C
-
Unshielded · Red Jacket · NEC Article 760
SAVE MORE
on Bulk Orders
The more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 3–9 units | $417.09 / unit | 3% |
| 10–19 units | $408.49 / unit | 5% |
| 20+ units | $399.89 / unit | 7% |
Price-match guarantee
FREE shipping
Lifetime warranty
-
𝐅𝐏𝐋𝐑 𝐑𝐀𝐓𝐄𝐃 𝐅𝐎𝐑 𝐑𝐈𝐒𝐄𝐑 𝐑𝐔𝐍𝐒 FPLR rating meets NEC Article 760 for vertical riser shafts between floors — and also substitutes for FPL in any non-plenum location in the building.
-
𝐌𝐀𝐗 𝐋𝐎𝐀𝐃 𝐌𝐀𝐗 𝐃𝐈𝐒𝐓𝐀𝐍𝐂𝐄 14AWG lowest resistance in the fire alarm range — for the longest NAC runs and highest device counts where 16AWG or 18AWG produce voltage drop.
-
𝐒𝐎𝐋𝐈𝐃 𝐁𝐀𝐑𝐄 𝐂𝐎𝐏𝐏𝐄𝐑 𝟏𝟒𝐀𝐖𝐆 Solid bare copper delivers maximum conductivity and long-term electrical performance for demanding notification circuits across the full 1000ft reel.
-
𝐖𝐈𝐑𝐄𝐒 𝐘𝐎𝐔𝐑 𝐅𝐈𝐑𝐄 𝐀𝐋𝐀𝐑𝐌 𝐒𝐘𝐒𝐓𝐄𝐌 Connects horns, strobes, horn/strobes, and notification appliances in Class B notification appliance circuits with the highest current demands.
-
𝐈𝐍𝐒𝐓𝐀𝐋𝐋𝐄𝐑 𝐑𝐄𝐀𝐃𝐘 𝐑𝐄𝐄𝐋 Red jacket for instant fire alarm identification. Rip cord for fast jacket removal. Sequential footage markings. 1000ft reel for large installations.
Description
Description
FPLR-rated fire alarm cable for vertical riser runs in shafts, stairwells, and between floors. FPLR is the riser rating under NEC Article 760 — required wherever fire alarm circuits run vertically through more than one floor. FPLR substitutes for FPL; FPLP substitutes for FPLR.
14AWG is the heaviest gauge in the standard fire alarm range — lowest resistance, highest current capacity, and longest circuit reach available. The right choice for demanding Class B notification appliance circuits (NAC) wiring horns, strobes, and horn/strobes with the highest device counts and longest runs, where 16AWG or 18AWG would produce unacceptable voltage drop.
Standards: C(UL) Listed FPLR · UL 1424 · UL 1666 · RoHS Compliant
Technical Specifications:
• Conductor: Solid Bare Copper · AWG: 14 · Conductors: 2 (Black/Red)
• Insulation: PVC · Jacket: FR-PVC FPLR · Rip Cord: Yes
• Shielding: None · Color: Red
• OD: 0.213 in. · Weight: 38 lbs · Rated Temp: 75°C
• Packaging: 1000ft Reel
Typical Applications:
• Vertical riser runs in shafts and stairwells between floors
• Class B notification appliance circuits (NAC) — horns, strobes, sirens
• Addressable fire alarm and detection systems
• High-device-count, long-distance NAC wiring
• Combined fire alarm and security/burglar alarm system wiring
