RG6 Coaxial Cable 18AWG 75 Ohm CMR Bulk Dual & Quad Shield 500 or 1000 ft
-
18AWG Solid CCS, 75 Ohm, 3.0 GHz Sweep Tested
-
Dual: Al Foil + 60% Braid · OD 0.2716 in.
-
Quad: 2 Foil + 60%/40% Braid · OD 0.2968 in.
-
Quad Jacket: FR-PVC · Dual Jacket: PVC
-
CM / CL2 / CMR · C(ETL)US · Black & White
RG6 Coaxial Cable 18AWG 75 Ohm CMR Bulk Dual & Quad Shield 500 or 1000 ft - Dual Shield / White / 500 Feet is backordered and will ship as soon as it is back in stock.
Save More on Bulk Orders
SAVE MORE
on Bulk OrdersThe more you buy, the more you save!
| QTY | Price Per Item | Your Savings |
|---|---|---|
| 5 units | $252.52 / unit | 6% |
| 10 units | $246.04 / unit | 7% |
| 25+ units | $239.57 / unit | 10% |
Contact our team for large volume pricing.
Price-match guarantee
FREE shipping
Lifetime warranty
RG6 Coaxial Cable 18AWG 75 Ohm CMR Bulk Dual & Quad Shield 500 ...
RG6 Coaxial Cable 18AWG 75 Ohm CMR Bulk Dual & Quad Shield 500 or 1000 ft - Dual Shield / White / 500 Feet is backordered and will ship as soon as it is back in stock.
-
𝗗𝗨𝗔𝗟 𝗢𝗥 𝗤𝗨𝗔𝗗 𝗦𝗛𝗜𝗘𝗟𝗗 Choose Dual Shield for standard CATV/satellite installs or Quad Shield for high-EMI environments.
-
𝗦𝗔𝗠𝗘 𝗦𝗜𝗚𝗡𝗔𝗟 𝗟𝗢𝗦𝗦 Dual and Quad Shield have identical attenuation — the difference is EMI rejection, not signal quality.
-
𝟳𝟱 𝗢𝗛𝗠 𝗖𝗠𝗥 𝗥𝗔𝗧𝗘𝗗 Matches all standard F-connectors, splitters, amplifiers, and CATV components; CMR for in-wall runs.
-
𝗦𝗪𝗘𝗣𝗧 𝗧𝗢 𝟯.𝟬𝗚𝗛𝘇 Verified from CATV (5-870MHz) through satellite (950-2150MHz) and broadband to 3.0GHz.
-

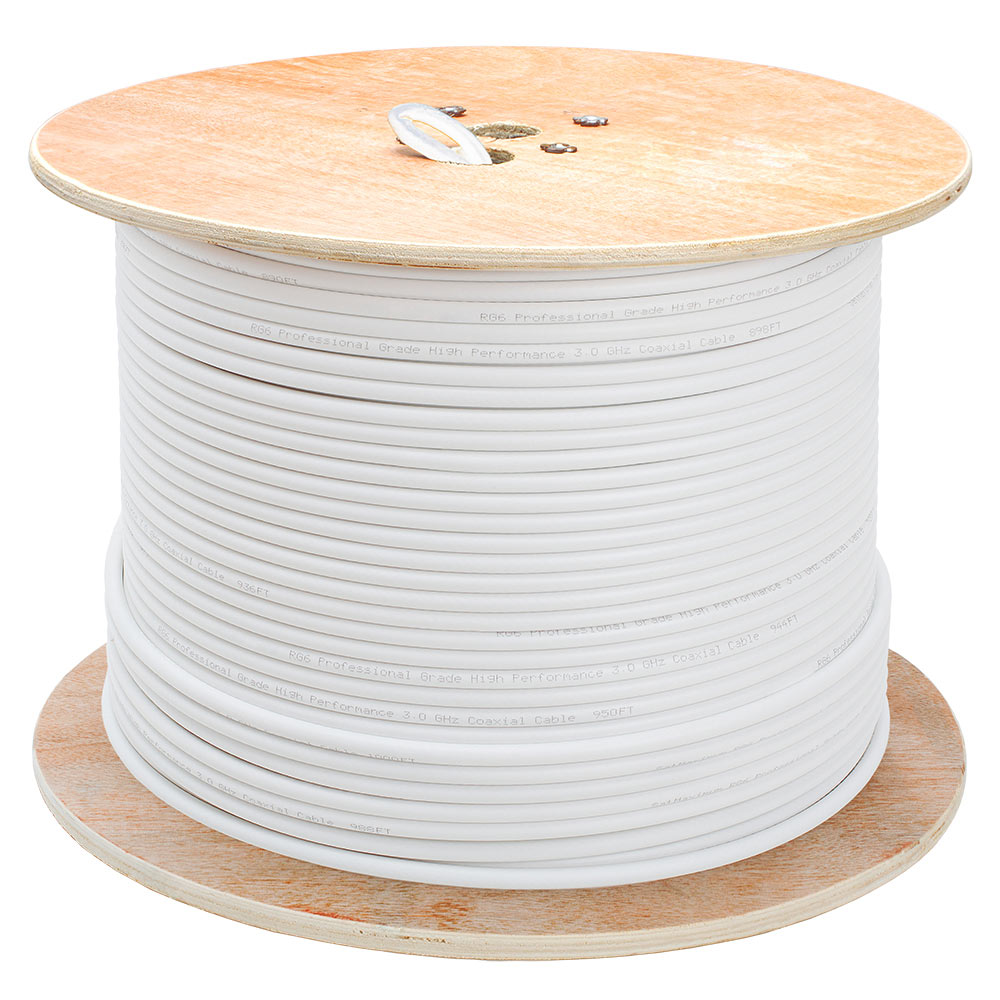

𝗦𝗘𝗤𝗨𝗘𝗡𝗧𝗜𝗔𝗟 𝗙𝗢𝗢𝗧 𝗠𝗔𝗥𝗞𝗘𝗥𝗦 Footage markings on the jacket track remaining cable on the spool during installation.
Description
Description
Run CATV, satellite, OTA antenna, broadband, and CCTV coaxial cable through walls and risers with this 18AWG RG6 bulk coaxial cable. CMR rated for in-wall and riser installation in residential and commercial buildings. Both versions use 18AWG Solid Copper Clad Steel center conductor with Foam PE insulation and are sweep tested to 3.0 GHz.

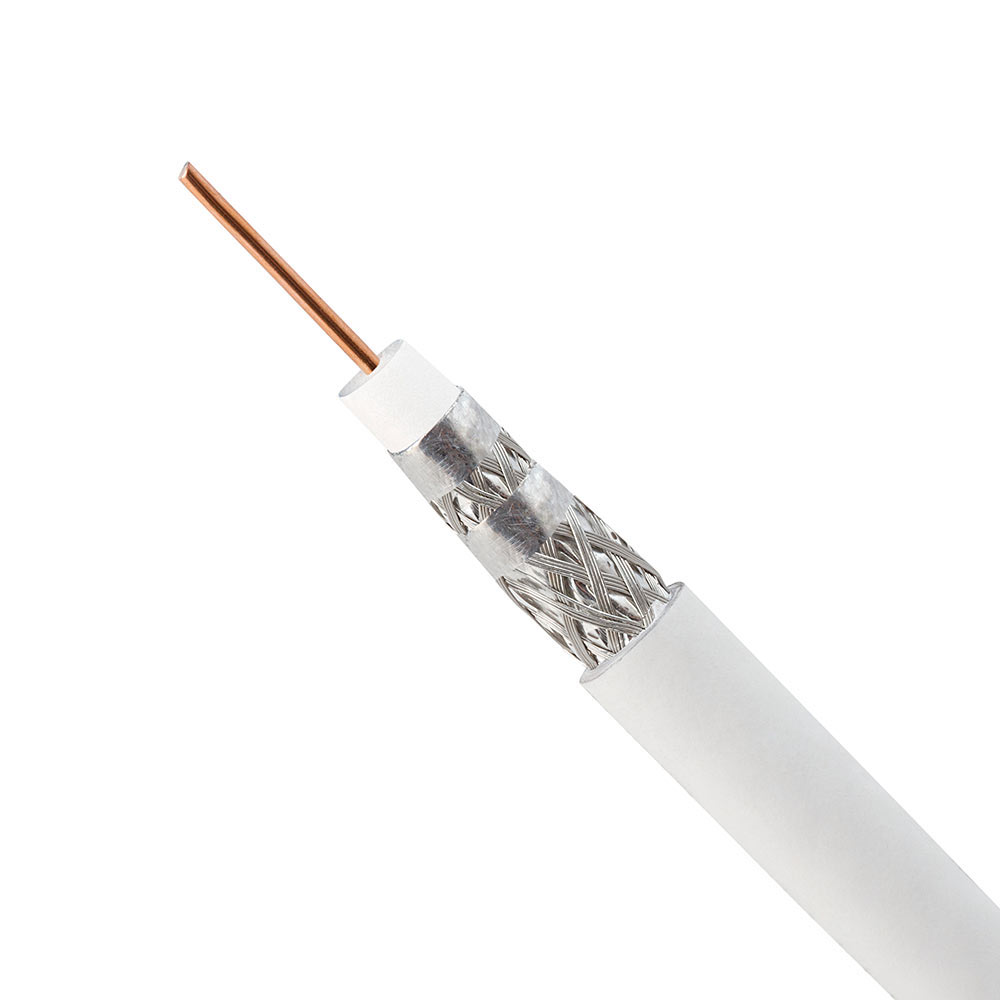

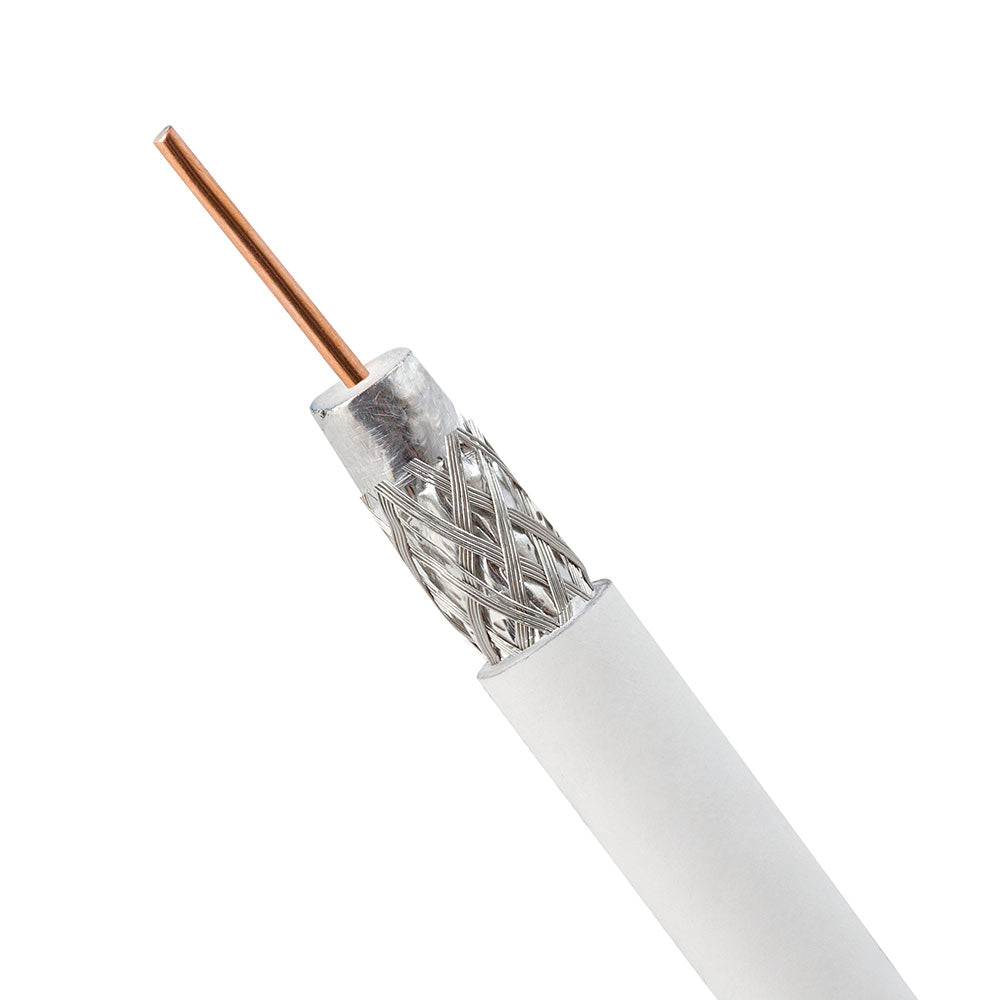

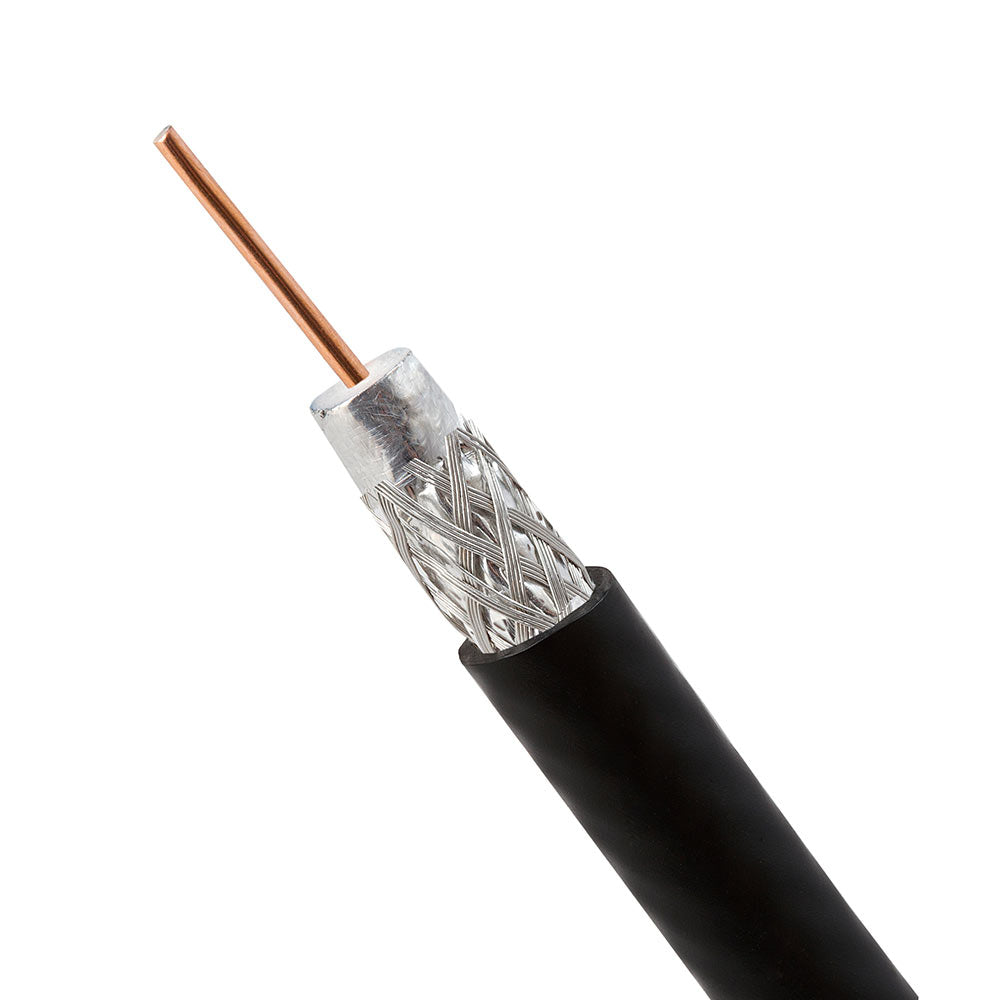

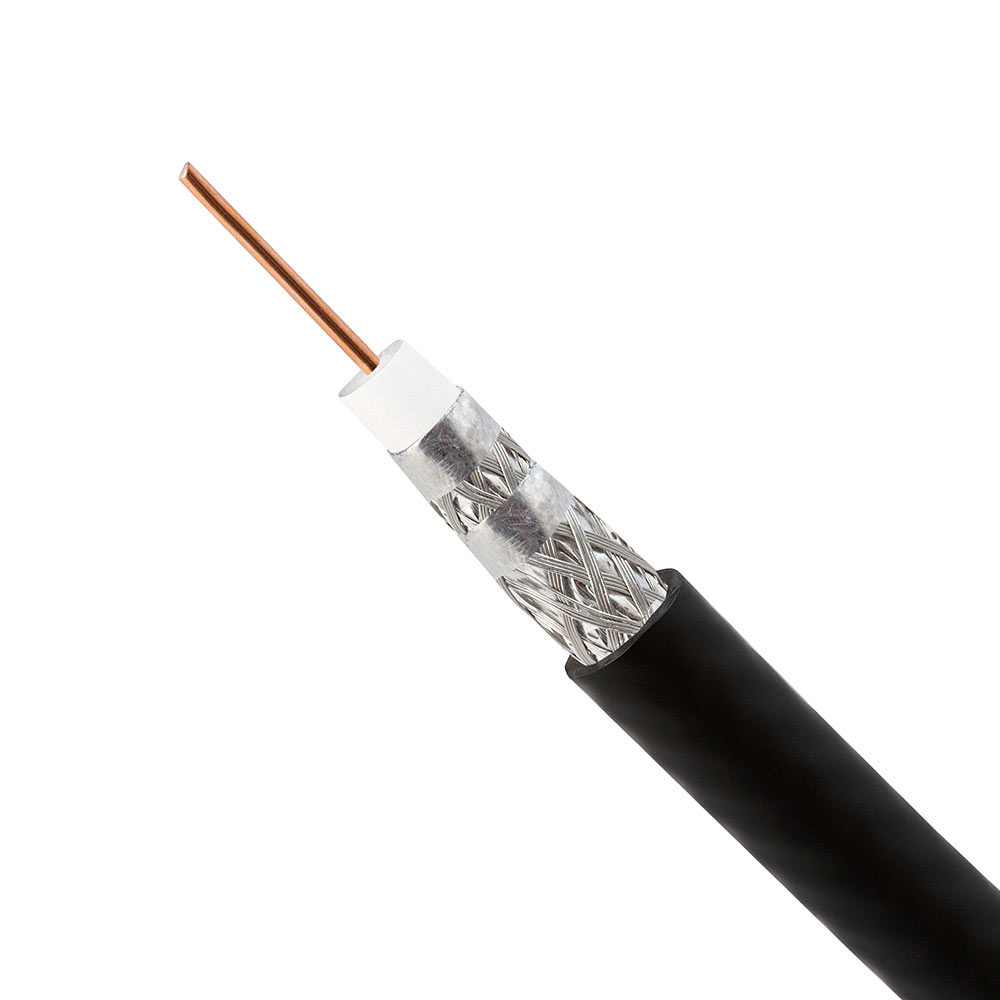

Dual Shield (Al foil + 60% Al braid) provides full 100% coverage for standard residential CATV, satellite, OTA antenna, cable modem, and CCTV applications. PVC jacket. OD 0.2716 in., 16 lbs/500ft, 30 lbs/1000ft.
Quad Shield (2 foil layers + 60% and 40% Al braid) delivers substantially better EMI rejection for apartments, condominiums, urban areas near broadcast transmitters, commercial spaces, and anywhere near electrical panels, motors, or RF equipment. FR-PVC flame-retardant jacket. OD 0.2968 in., 18 lbs/500ft, 35 lbs/1000ft.
Note: Both have identical signal loss per foot — the difference is in EMI rejection, not attenuation.
CMR · CM / CL2 · C(ETL)US · UL Listed · SCTE IPS-SP-001 · TIA-568-C.2
Shared Specifications:
• Conductor: 18AWG Solid CCS, 0.040 in. diameter
• Insulation: Foam PE, 0.186 in. diameter, 84% VOP
• Impedance: 75 Ohms (±3.0 Ohms) · Capacitance: 15.5 pF/ft
• Operating Temp: -20°C to +60°C · RoHS Compliant
• Sweep Tested: to 3.0 GHz · Sequential Foot Markers: Yes
Specifications
Specifications
-
Length
