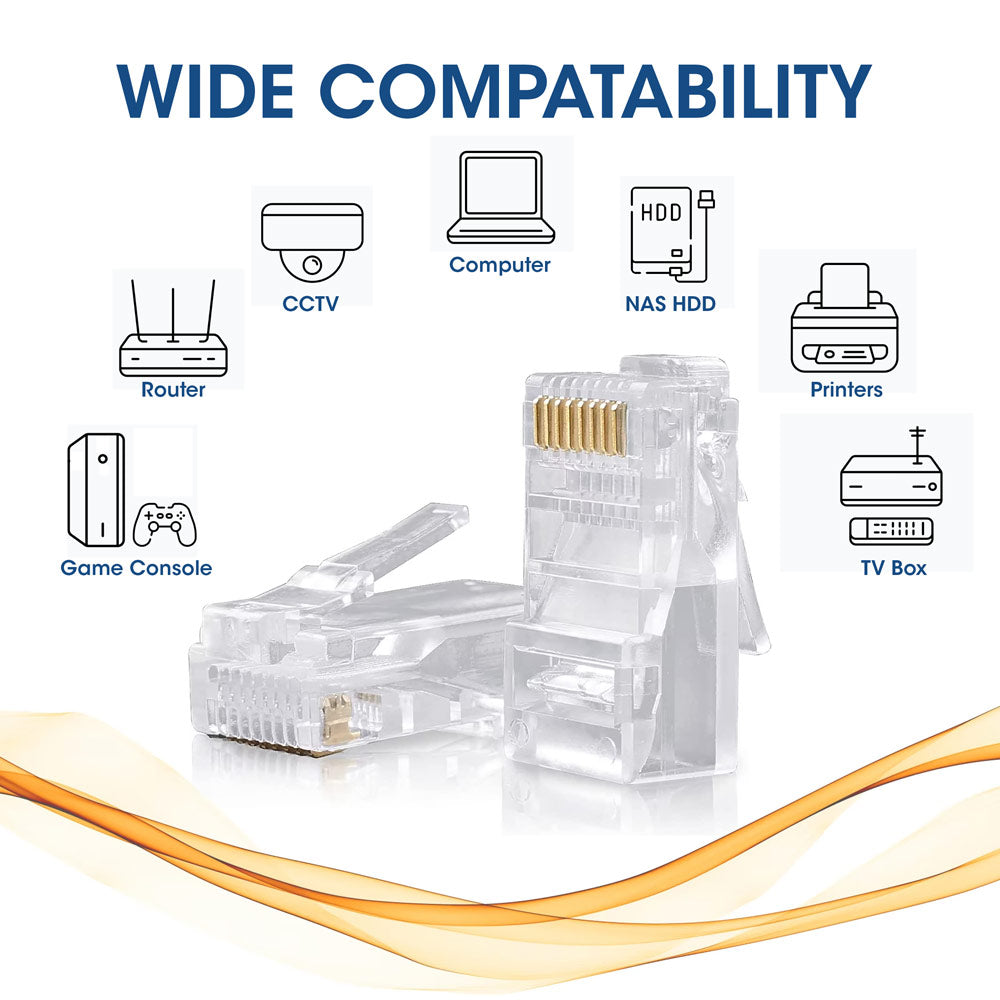

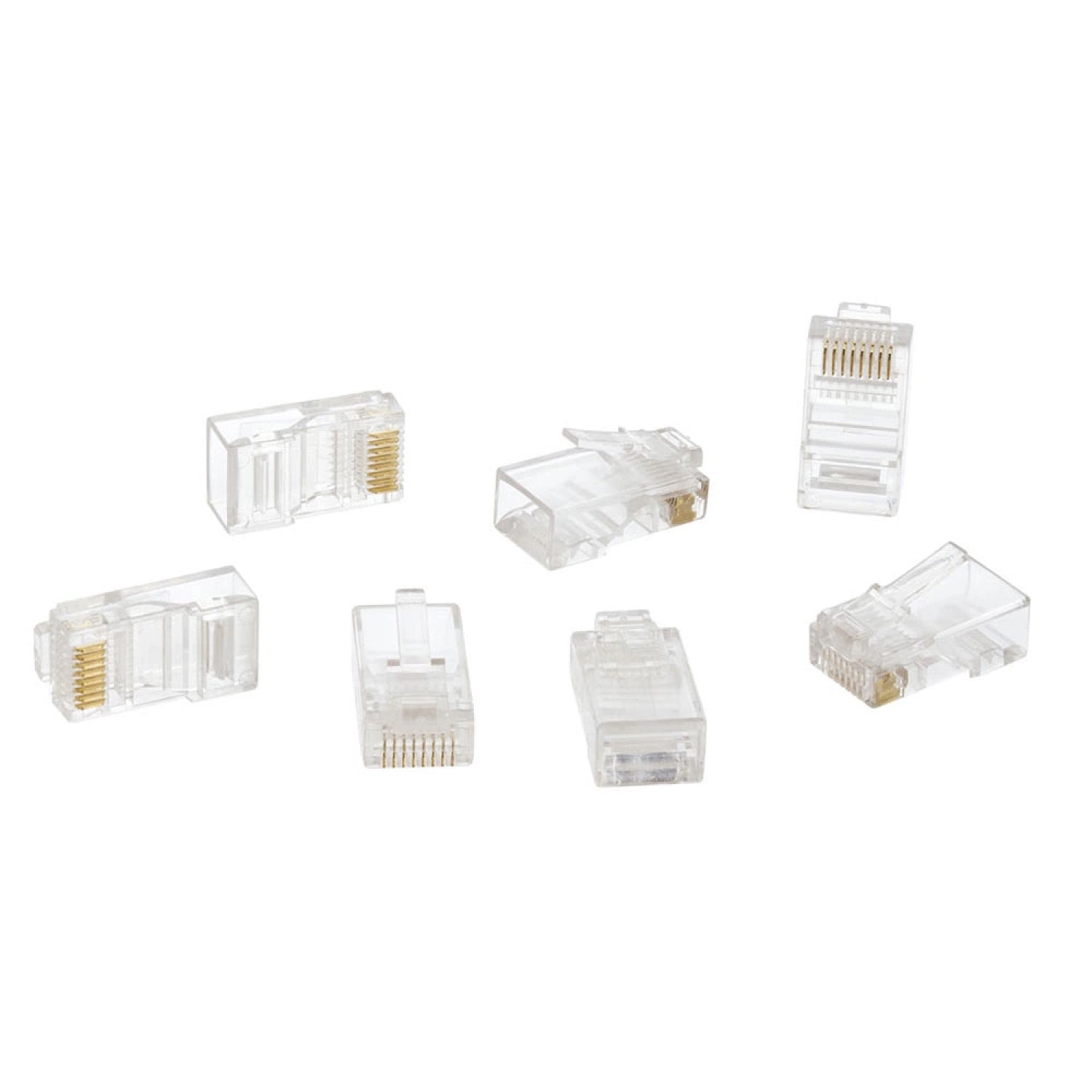

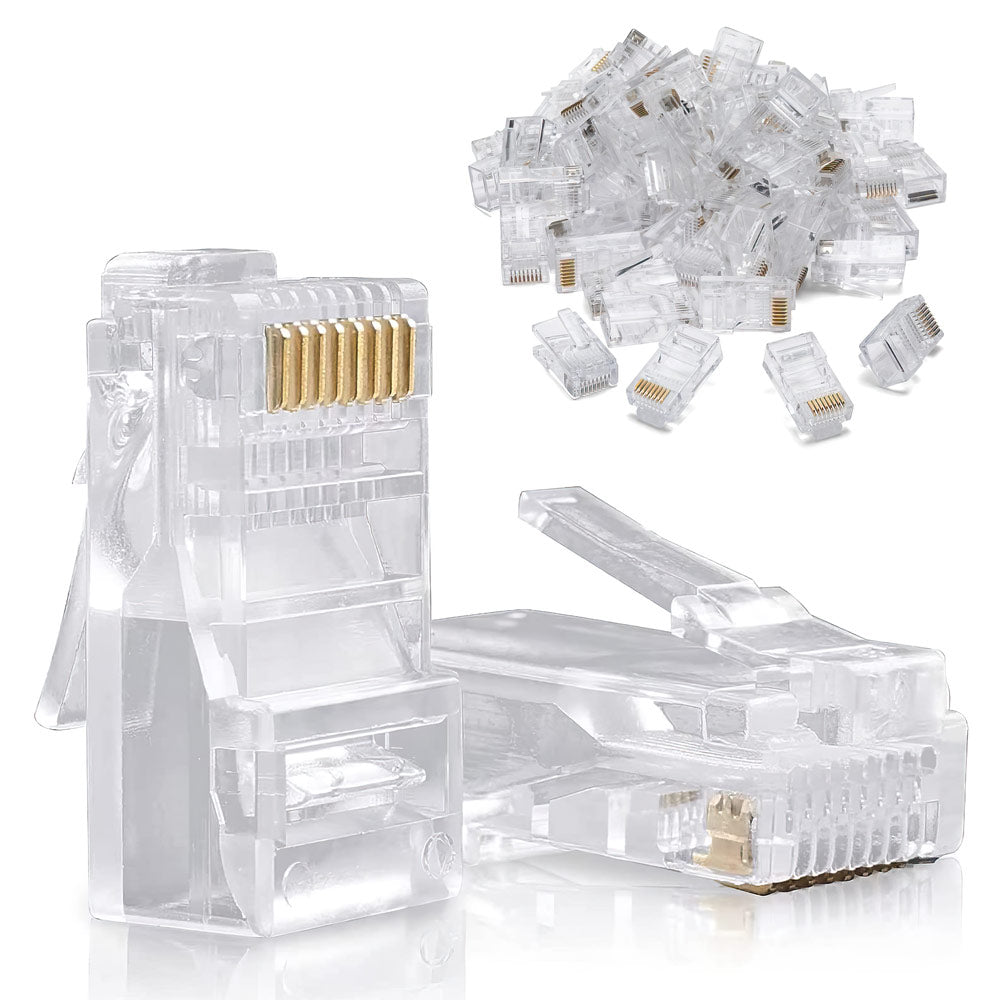

RJ45 Cat6 Modular Plug 8P8C 50u Gold Easy Crimp Solid Wire 100 Pack
-
Cat6 8P8C RJ45 Modular Plug, 100-Pack
-
Easy Crimp with Loading Bar for 23AWG
-
50-Micron Gold-Plated Contacts
-
Clear Housing – Visual Wire Verification
-
For Solid Wire Cat6 and Cat5e UTP
-
LOADING BAR GUIDE Pre-organizes all 8 conductors in wiring order before crimping — essential for stiff 23AWG Cat6 wire.
-
CAT6 RATED Correct pin geometry for 23AWG solid Cat6 conductors and Gigabit Ethernet channel compliance.
-

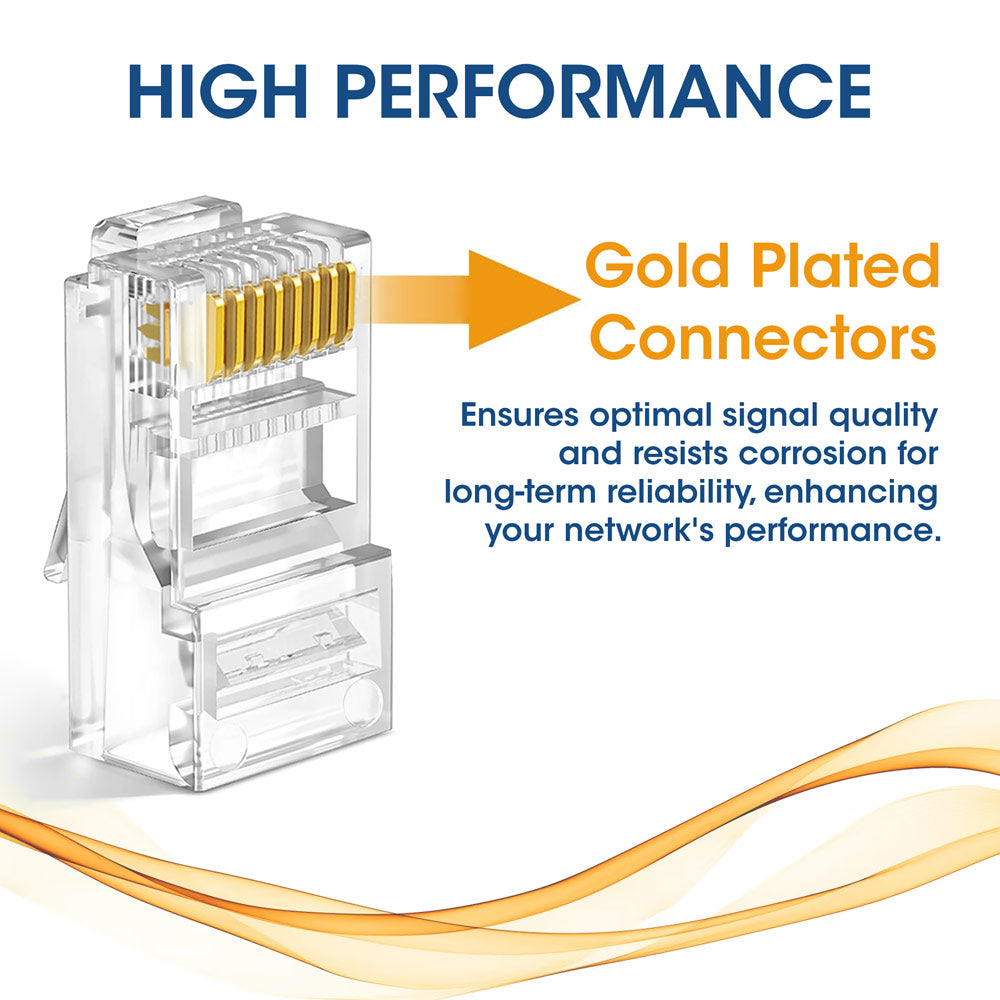

50-MICRON GOLD CONTACTS Thicker gold than standard 15-micron connectors resists oxidation on permanent in-wall terminations.
-
CLEAR HOUSING Transparent body for visual verification of T568A or T568B wiring before the irreversible crimp.
-
100-PACK Solid wire only; standard 8P8C crimp tool compatible — covers 50 patch ends or 50 wall drop terminations.
Description
Description
Field-terminate Cat6 and Cat5e solid UTP cable with these 8P8C RJ45 modular plugs. The easy-crimp design includes a loading bar insert that guides and aligns all 8 conductors before the plug is seated and crimped — making accurate termination of 23AWG Cat6 solid cable significantly faster and more consistent than standard single-piece plugs where each conductor must be individually aligned.
Cat6 cable uses larger 23AWG solid conductors that are stiffer and harder to seat uniformly in a standard RJ45 plug. The loading bar holds all conductors in the correct T568A or T568B order before the plug body is pushed on, reducing mis-terminations on tighter Cat6 conductor bundles. Clear housing provides visual verification that all conductors are fully seated before the final crimp. 50-micron gold contacts resist corrosion for long-term reliable connectivity.
Specifications:
• Plug Type: 8P8C RJ45 Modular Plug
• Compatible Cable: Cat6, Cat5e Solid UTP
• Conductors: 8-position, 8-contact
• Contact Plating: 50 Micron Gold
• Housing: Clear Transparent Polycarbonate
• Design: Easy Crimp with Loading Bar Guide
• Wire Type: Solid (not for stranded cable)
• Quantity: 100 per pack
