RJ45 Pass-Through Modular Plug Cat5e Cat6 8P8C 50u Gold PoE 100 Pack

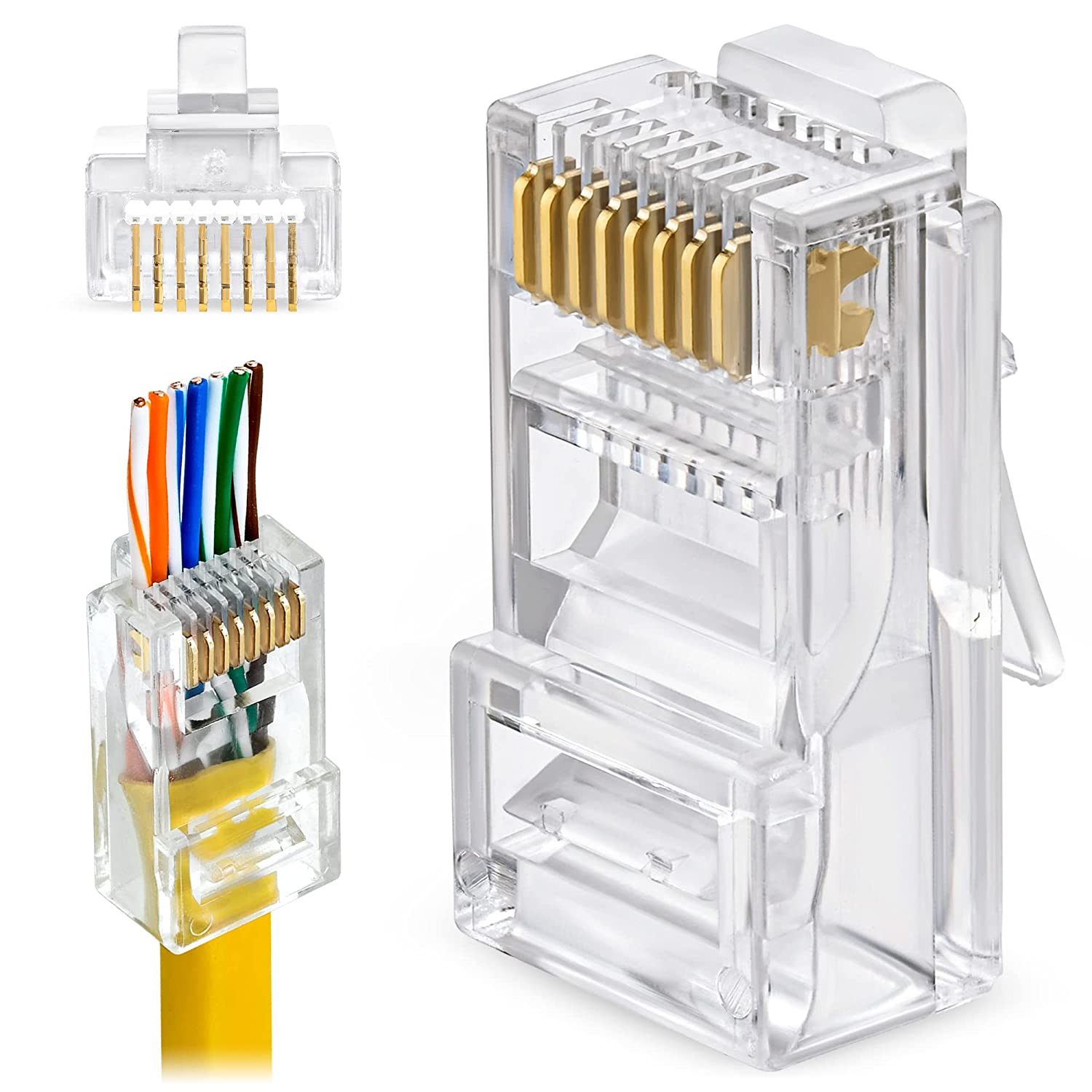

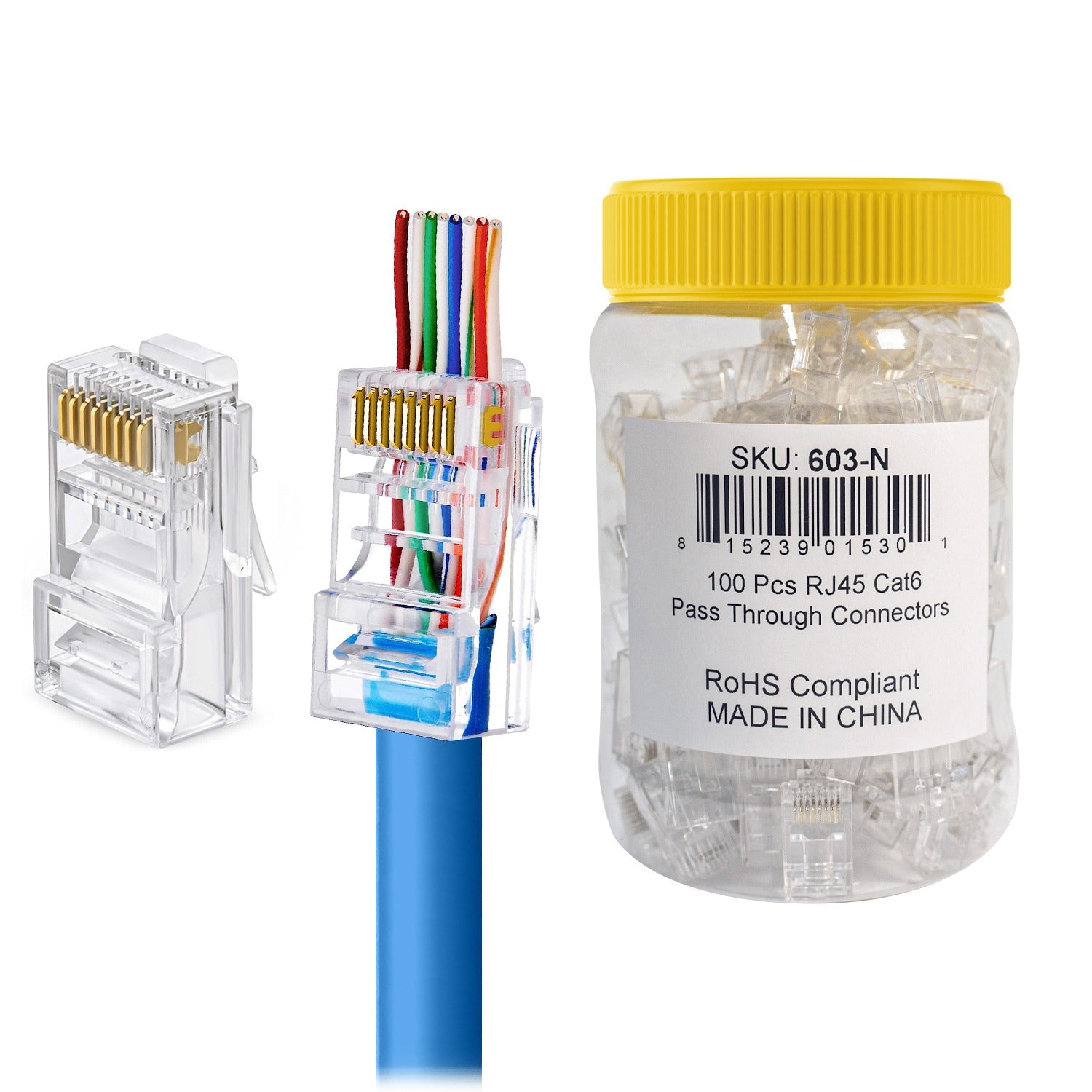

Pass-through RJ45 modular plugs let all 8 conductors slide completely through the plug body before crimping — the wire ends protrude visibly from the front of the connector. Verify that every conductor is in the correct T568A or T568B position and fully seated before the crimp tool trims and terminates in a single action. No mis-terminations from blind loading, no re-crimping, no wasted connectors.

The pass-through design also enables the cable pairs to be pushed all the way to the pin contact points, minimizing untwisted wire length at the termination — the leading cause of crosstalk and reduced channel performance at the plug end. This produces consistently cleaner terminations, especially on Cat6 cable where near-end crosstalk (NEXT) is a primary performance criterion. PoE and PoE+ compliant for IP camera, VoIP phone, WAP, and PoE switch installations on Cat5e and Cat6 infrastructure.

Specifications:
• Plug Type: 8P8C RJ45 Pass-Through Modular Plug
• Compatible Cable: Cat5e, Cat6 UTP, Solid or Stranded
• Conductors: 8-position, 8-contact
• Contact Plating: 50 Micron Gold
• PoE: IEEE 802.3af (PoE) and 802.3at (PoE+) compliant
• Standard: RoHS Compliant

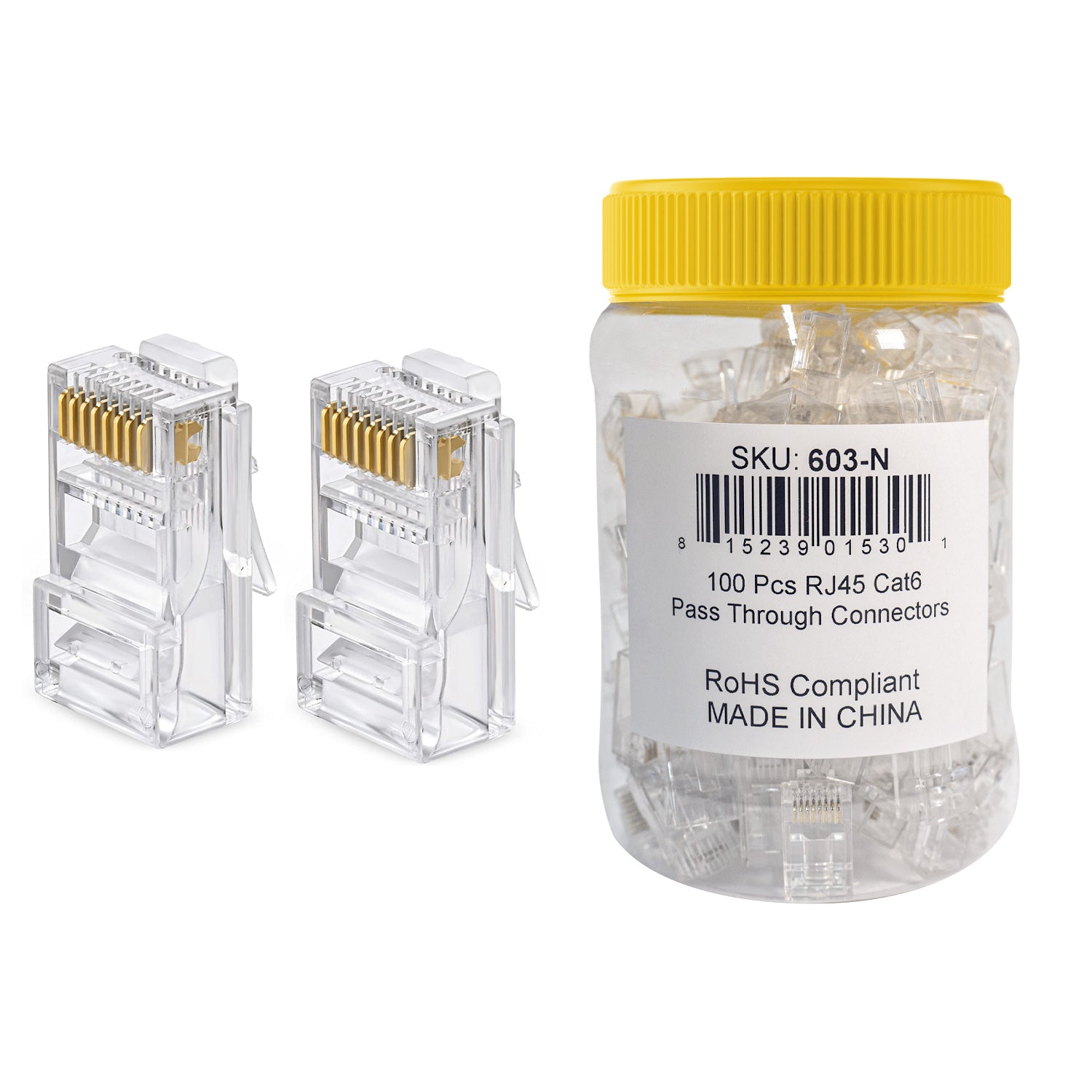

• Quantity: 100 per pack (jar container)
